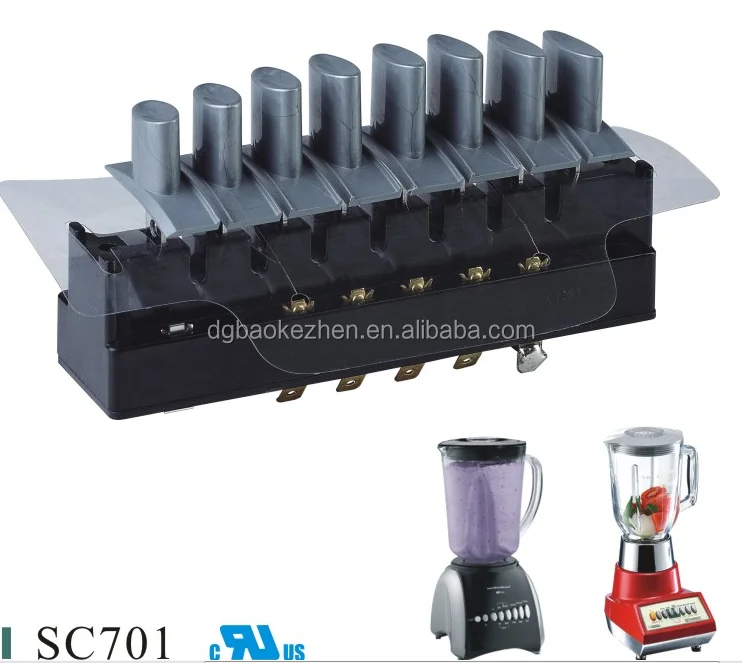

SC701 Jucier switch

Product Overview

Description

Specification:



Model: SC701 Jucier switch

Jucierr's switch Jucier's  keyboard switch, Jucier's piano switch,

Jucier's push button switch Jucier's select switch

Rating: 6A 125VAC, 4A 250VAC

1/4Hp 125/250VAC

Current resistance: ≤20MΩ

Insulation resistance: ≥100MΩ at 500VDC

Dielectric strength: 1000VAC-1min

Electrical life: ≥6000 times

Temperature range: 0-125°C
