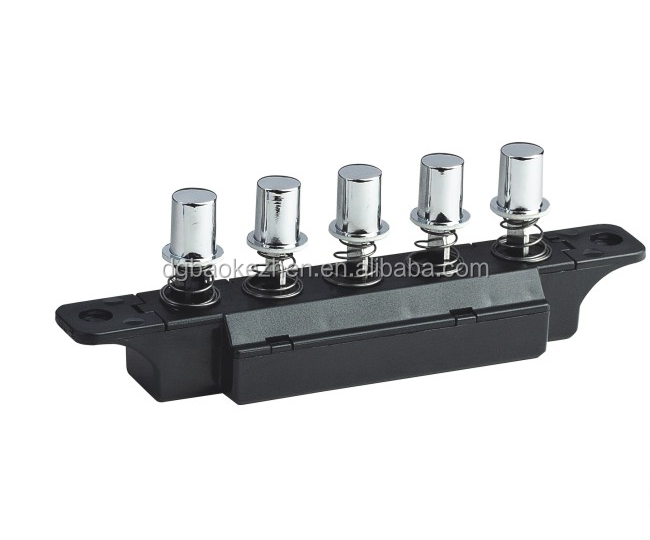

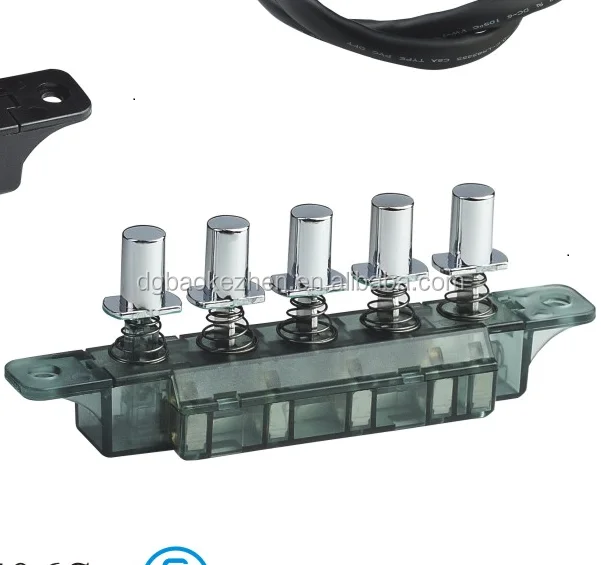

SC706S range hood push button switch

Product Overview

Description

Specification:

Model: SC706S Range  hood switch

Range  hood's switch, range hood's keyboard switch, Range  hood's piano switch

Range  hood's push button switch , Range  hood's  select switch

piano switch, keyboard switch

Rating: 3(1)A 250VAC T85/55 1E4

Current resistance: ≤20MΩ

Insulation resistance: ≥100MΩ at 500VDC

Dielectric strength: 1000VAC-1min

Electrical life: ≥10000 times(SEMKO)

                      ≥6000  times

Temperature range: 0-85°C

Certificate: SEMKO

-This keyboard switch recommended to be used for below appliances:
