110 130V Halogen Lamp 500W 118MM Phlips
- Category: >>>
- Supplier: Linyi Yuhang Lighting Electric Appliance Co. Ltd.Linyi Ltd.
Share on (532169853):
Product Overview
Description
110-130V Halogen Lamp 500W 118MM Phlips
J Standard Double-Ended Linear Halogen Lamps
In-line protection fuses are recommended for 220-240V circuits according to
EN60357(BS1075) for following wattages :
60W to 300W - 2A
500W - 4A
750W & 1000W - 6.3A
1500W & 2000W - 10A
Average life 2000 hours
Colour temperature 2900K, lamp base is R7S
Protective covers are required for lighting fixtures
Specification:
Lamp Code | Voltage (V) | Wattage (W) | Filament support | Diameter D(mm) | Length L1(mm) | Lumen (lm) |
|
J-78/60W | 120/130/230/240 | 60 | Re-inforced | 8 | 80 | 840 | D |
J-78/75W | 120/130/230/240 | 75 | Re-inforced | 8 | 80 | 1050 | D |
J-78/100W | 120/130/230/240 | 100 | Re-inforced | 8 | 80 | 1650 | D |
J-78/150W | 120/130/230/240 | 150 | Re-inforced | 8 | 80 | 2600 | D |
J-78/200W | 120/130/230/240 | 200 | Re-inforced | 8 | 80 | 3200 | D |
J-78/250W | 120/130/230/240 | 250 | Re-inforced | 8 | 80 | 4000 | D |
J-118/100W | 120/130/230/240 | 100 | Re-inforced | 8 | 118 | 1650 | D |
J-118/150W | 120/130/230/240 | 150 | Re-inforced | 8 | 118 | 2600 | D |
J-118/200W | 120/130/230/240 | 200 | standard | 8 | 118 | 3200 | D |
J-118/300W | 120/130/230/240 | 300 | standard | 8 | 118 | 5000 | D |
J-118/500W | 120/130/230/240 | 500 | standard | 10 | 118 | 9500 | D |
J-189/750W | 230/240 | 750 | standard | 10 | 189 | 16500 | D |
J-189/1000W | 230/240 | 1000 | standard | 10 | 189 | 22000 | D |
J-254/1000W | 230/240 | 1000 | standard | 10 | 254 | 22000 | D |
J-254/1500W | 230/240 | 1500 | standard | 10 | 254 | 33000 | D |
J-333/2000W | 230/240 | 2000 | standard | 10 | 333 | 44000 | D |
J-333/2000W | 230/240 | 2000 | standard | 10 | 333 | 44000 | D |
Applications:
They are suitable for lighting in outdoor, parks, stadiums, construction sites, warehouses, workshops, and for other safe lighting.

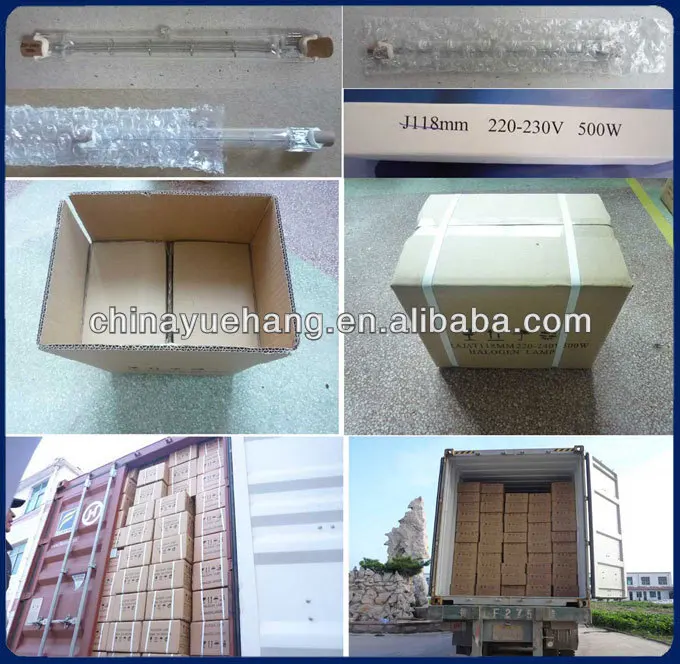

Pic and Packing
