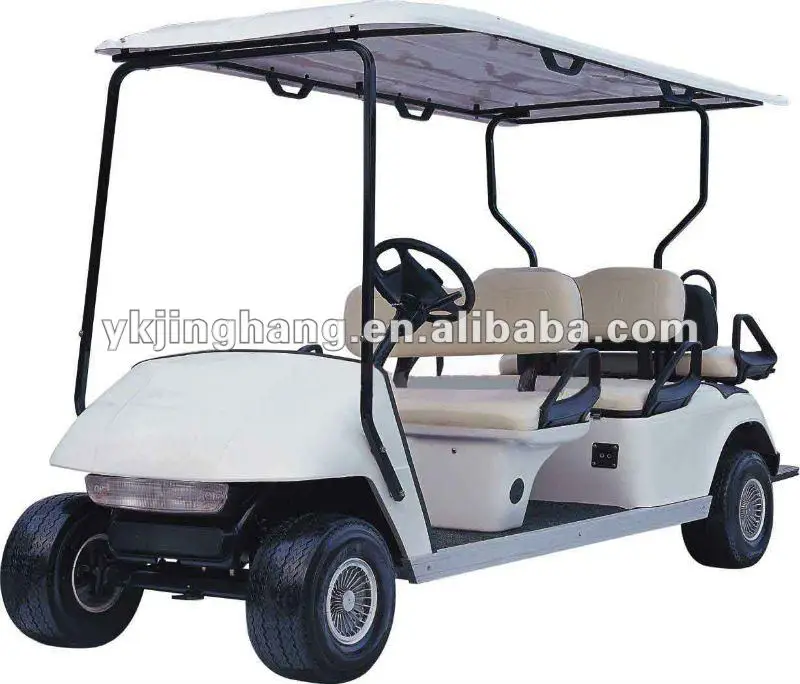

250CC Four Seat Gas Powered Golf Cart

Spec

Electric

Gas

Item Number

JHGF-001A

JHGF-001B

Power Source

 Electric

Gasoline

Engine

CFMOTO 4-cycle, OHV, 250cc, single-cylinder,

air-cooled,pressure-lubricated, spin-on oil filter

Horsepower

       2200W

9.5 hp @ 3,600 rpm, exceeds SAE J1940

Performance Standards

Batteries

      6*8Volt/145AH

12Volt/12AH

Charger

48-volt variable with on-board computer

Governor

Automatic ground speed sensing,

internally geared-in unitized transaxle

Steering

Self-adjusting rack and pinion

Self-adjusting rack and pinion

Front

Suspension

Independent leaf spring with

 dual hydraulic shocks

Independent leaf spring with

dual hydraulic shocks

Brakes

Self-adjusting rear

 mechanical drum

Self-adjusting rear

mechanical drum

Pack Brake

Foot-operated, multi-lock

Foot-operated, multi-lock

Frame Chassis

Aluminum I-beam

Aluminum I-beam

Body

Painted TPO

Tires

18 x 8.50-8, 4-ply rated, premium tread

18 x 8.50-8, 4-ply rated, premium tread

Seating Capacity

Two

Two

Overall Length

3100mm

3100mm

Overall Width

1310mm

1310mm

Overall Height

1710mm

1710mm

Whweelbase

1670mm

1670mm

Ground Clearance

1140mm

1140mm

Fuel Tank Capacity

7L

Tread

87.6 cm/97.8 cm

87.6 cm/97.8 cm

Dry Weight

(Less Batteries)

218kg

218kg

Speed Range

25KM/H

Vehicle Warranty

Limited lifetime

Limited lifetime
