Full Automatic PU Shoe (Sole) machine For Crocs Slippers

Product Overview

Description

Full automatic pu shoe(sole) for crocs slippers

 Productd Overviews



 Features

1:uesd for shoes

2 Simple operation

3:bulk supply

4:factory price

5:soon delivery

6:sample available

7:customer design can be done

8.high quality and reliability

9.auto/by hand

10.convenient maintenance



Use:

1. Well configured system and ease maintenance.

2. Used for making safety shoe, leisure shoe, casual shoe, sandal, etc in double density.

3. Suitable for direct soling injection of single PU or colorful PU.

4. Each injection unit is equipped with two colors with accurate measurement of painting.

5. Automatic cleaning

6. Low noise and low energy consumption

7. Stable rotation and accurate positioning.

8 High mold clamping force.

9. Independent PLC control for each station with multi-function.

10 :any colors can be made.



Parts imported:

Electric control:Chnt china

Switch: France:Schnnider

Plc: Siemens

Touch screen: Siemens

Motor: Japan



Control system:

1, With the state of the art computer controlled system to gain the machinery more efficiency and reliability.

2, Self-diagnosis, alarming and monitoring functions and multi-language alternatives.

3, Preset technical parameters.

4, Reserve electrical interface for mechanical arm

5, PID closed-loop and self-regulated injection program

6, Automatic PID temperature control

7, Emergent halt protection device.



Specifications

Two color and three color available
It 's used for making safety shoe, leisure shoe, leather shoe/sole, etc.

1, On the turning circularity molding line which is mould-frame of horizontal multi-position, there are all kinds of specification and model moulds of sole and upper-link molding. When molding line runs equably and circularly, the pouring head of polyurethane foam machine or polyurethane pouring molding two purpose machine pour mix material liquid into the moulds continuously, after the material liquid processed molding in the moulds, which make many kinds of eligible molding shoes or soles.

2, Equipments productivity
polyurethane foam machine matches with sole molding moulding line(60 position or more), we produce polyurethane soles by 50 shoe moulds, 10 hours one day and 8 circles/hour, as the rotating speed, it can yield 4000 pairs of soles per day.
3, Polyurethane foamed machine matches with sole upper-link molding production line(60 position), we are produce 10 hours one day and 8 circles/hour, as the rotating speed, it can yield 1200 pairs of soles per day.
4, Double color, double density polyurethane sole or upper-link molding shoe products, this techniques should be second pouring, so productivity will be decline



Technical Parameter:

1	Model	JG-807
2	Tank quantity	5
3	Tank capacity	250L
4	Pump quantity	4
5	Speed of pump(r/min)	0---280
6	Precision (%)	±0.5
7	Max rotating Speed of injection screw	4500/8600-10000 (Choice by yourself)
8	Clean the head	Automatic/By hand
9	Voltage	380V,50HZ
10	power	20(kw)
11	Clean quantity	4500(r/min)>25,9000(r/min)>160
12	Product characteristics	four color four density Can produce two different material
13	Productivity(output )	if work 8 hours can produce 3600pairs of the shoes. every four minute can produce 30prs of the shoe.

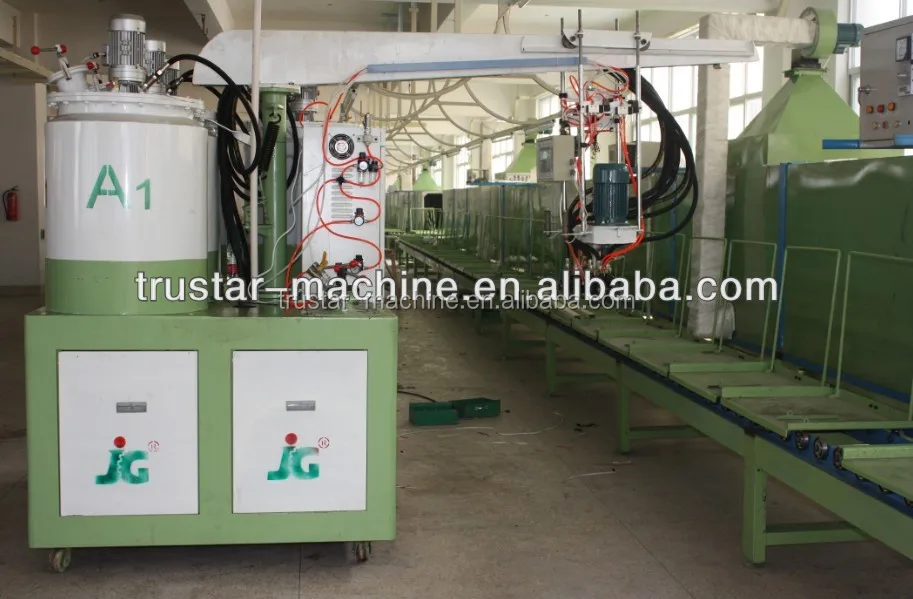

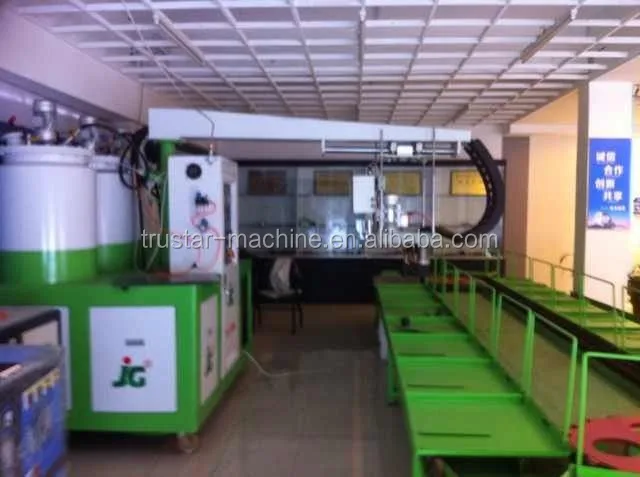

The whole producing line include one main machine, one 60 station convey, one oven

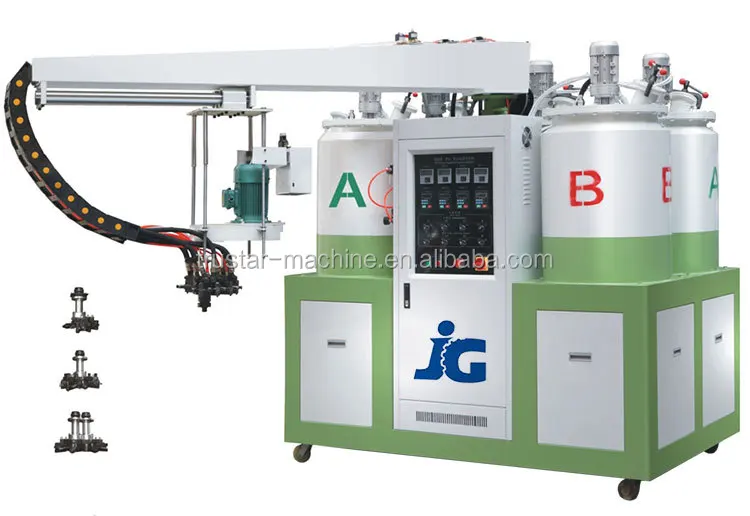

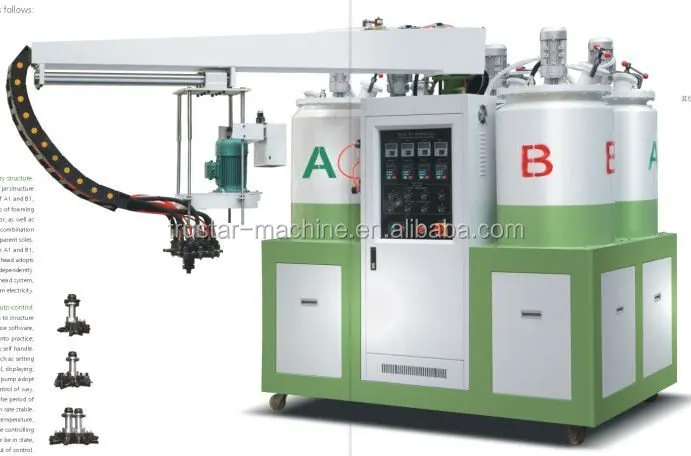

1.main machine

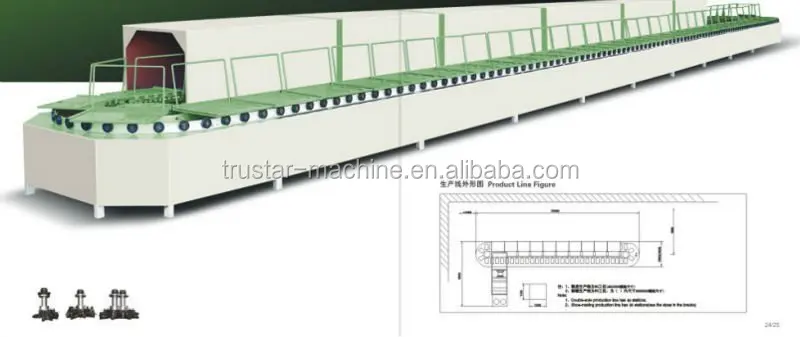

2.  60 station producing line(conveyor)

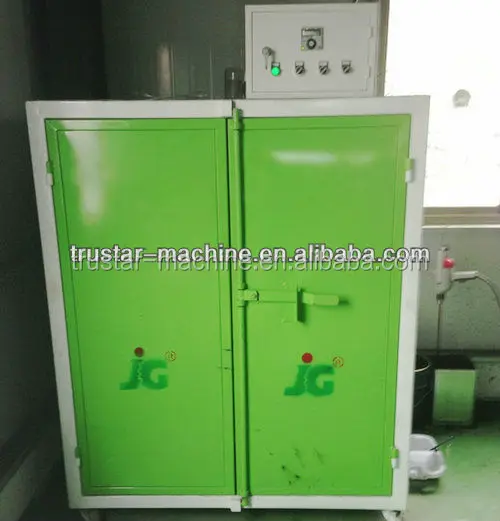

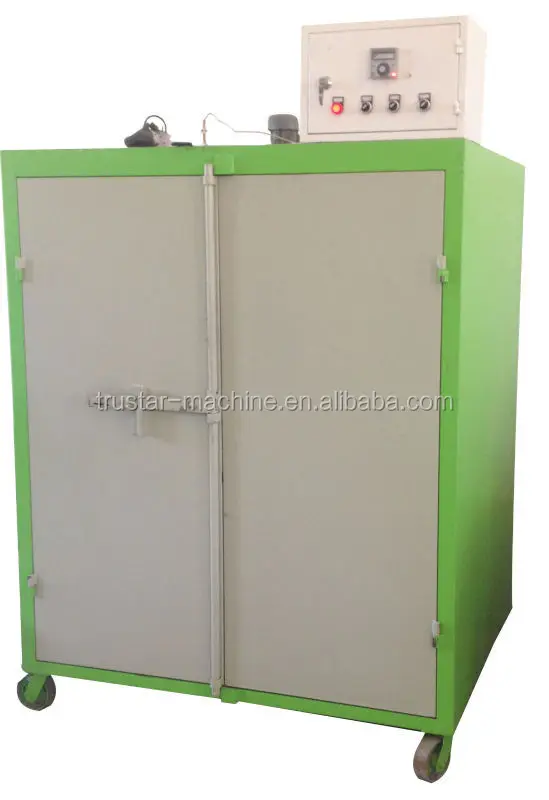

3. The raw material oven









Can produce safty shoes, leathe shoes, sandal shoes etc.







The packing and shipping







The production workshop





Attend trade shows





  Some spare parts







HERE IS THE LINK OF TWO COLOR MODEL JG-801
