machine for traffic cone

Product Overview

Description

machine for traffic cone

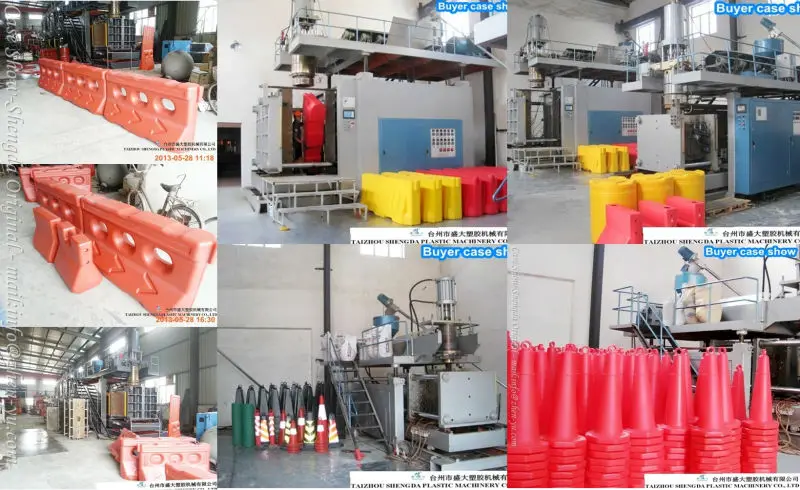

 accumulator type making portable plastic traffic road cone

ZK-90B~ZK-135B Model automatic large extrusion blow molding machine--Machine adopts accumulator die. Parison programmer is available to control thickness.Machine run by  automatic  process  with  low  noise, saving  energy, high efficiency,safe operation, easy maintenance  and  other  benefits. It is  widely used to  produce  chemical  barrel, auto parts toys,tool box,bus seats,,etc. Machine ZK-135B can produce max 1000L hollow plastic product.

Features:

1) Controlled by Japan mitsubishi PLC

2) Temperature controlled model

3) Interactive monitor with machine-human interface

4) Imported hydraulic elements

5) Proportional control

6) Imported electric elements

7) Hard gear surface reducer

8) Accumulator head with special steel

9) Vicker hydraulic valve, seal and proportional control

10) Japan mitsubishi  PLC+ Taiwan human machine interface +software in touch type +famous brand electric elements.

following is the technical specifications:

specification	unit	zk-90A	zk-90B
max container capacity	L	50	60
number of die heads	set	1	1
machine dimension(L*W*H)	M	5*3.1*3.2	5*3.1*3.9
total weight	ton	7	9
clamping unit
clamping force	KN	300	300
platen opening stroke	mm	350-1050	350-1050
max mould size(W*H)	mm	700*1000	700*1000
mould thickness	mm	360-500	360-500
power
max drive	KW	11	11
total power	KW	63	70
fan power for screw	KW	0.72	0.72
air pressure	Mpa	0.7	0.7
air consumption	m3/min	0.9	0.9
average energy consumption	KW	28	35
extruder unit
screw diameter	mm	90	90
screw L/D ratio	L/D	25:1	25:1
plasticizing capacity	kg/hr	100	120
number of heating zone	zone	5	4
extruder heating power	KW	12.5	12.5
extruder driving power	KW	22	30
accumulator head
number of heating zone	zone	3	5
power of die heating	KW	7	20
max die-pin diameter	mm	350	350
accumulator volume	L	5	6
