Tiancheng thermistor PTC air heater with out blowing Heater for corrugated drying heater with temperature controller

Product Overview

Description

Air heating element

1.      Types

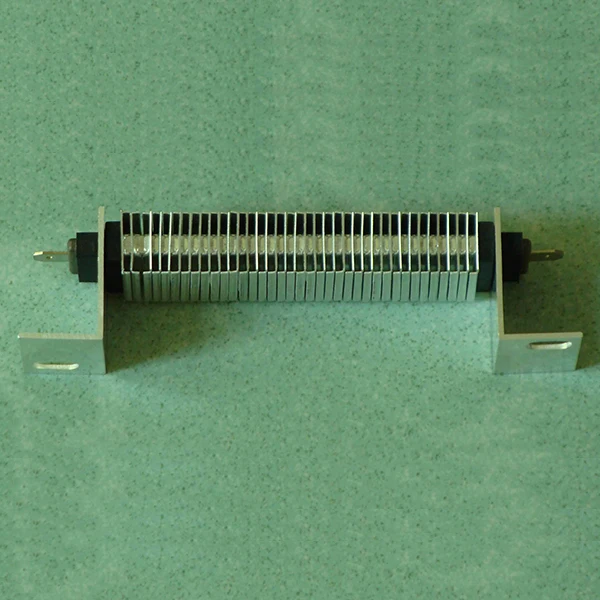

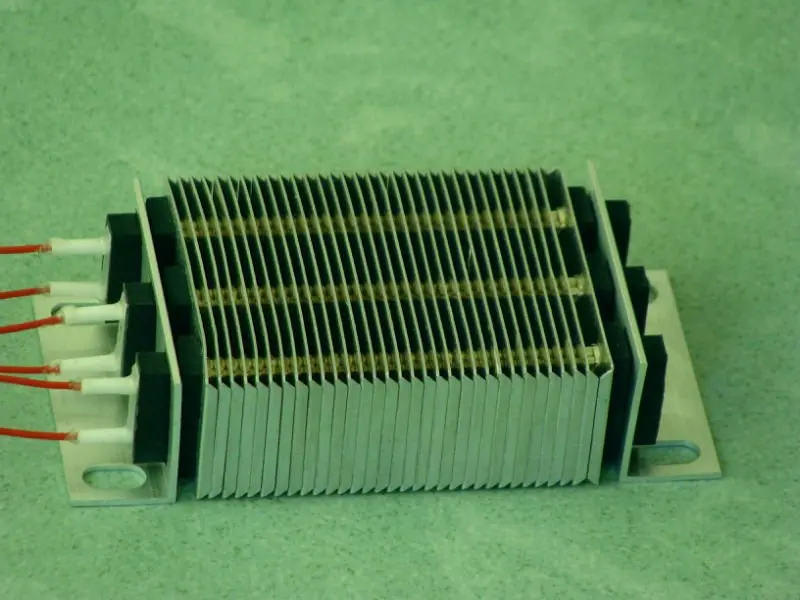

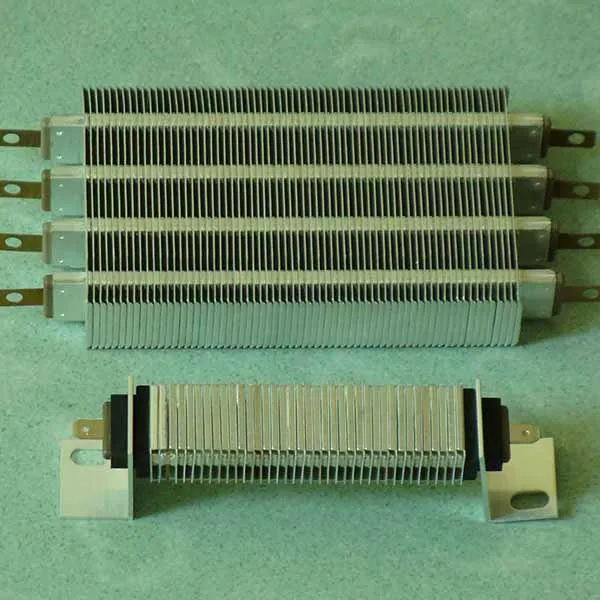

Blowing type: insulated type with wave radiator, uninsulated type with wave radiator, insulated type with inserted foil radiator, insulated type with comb radiator.

Heater with fan: insulated type with fan, uninsulated type with fan.

Convecting type air heater.



2. Some appliances.

Blowing type: room heater, bathroom heater, air conditioner heater, drying room heater, clothes dryer, hand dryer, air conditioner system for electric car, discharging loader for battery.

Convecting type: moistureproof and dew proof for electronic equipments, heating for electronic controll case, room heater.



3. Notice in appliance.

Blowing type:

1)This type of PTC air heater need a fan to blow, usually the faster is the air blowing speed, the larger is the power;

2)When PTC is used in very low ambient temperature, it have to be special designed;

3)PTC heater do not be damaged without air blowing, but the power is very low;

4)The power could be adjusted by air blowing speed; or it could be adjusted by voltage; or changing the number of heaters.

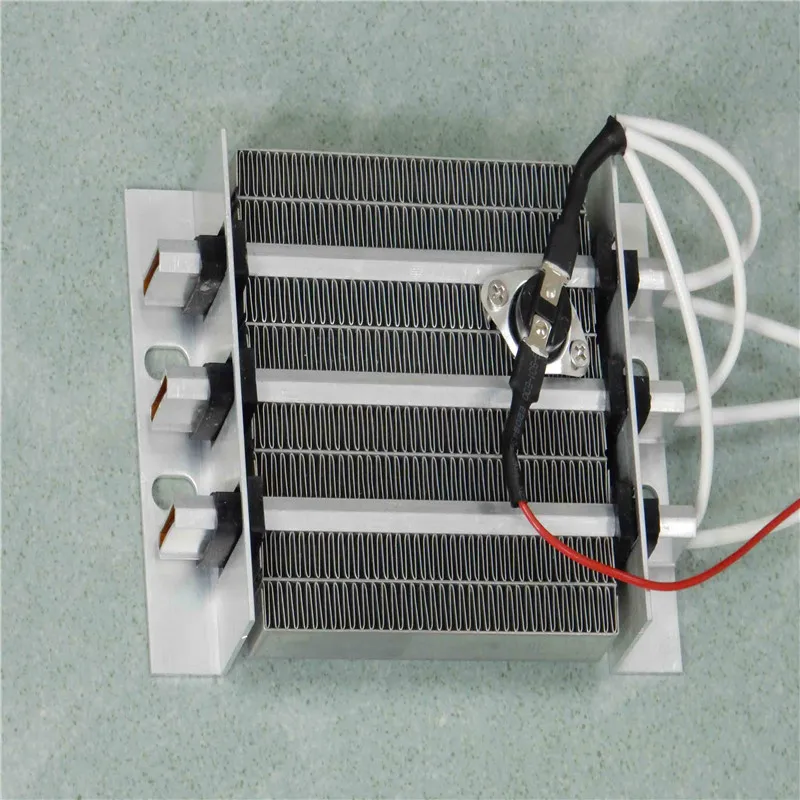

5)The surface tempetature on heater would be higher without air blowing. A thermostat could be assembled on the heater, preventing the damage of the holde;

6)The surface temperature on dispersion plate is closed to the curie temperature, without air blowing; but the surface temperature on dispersion plate will be lower than the curie temperature very much, with air blowing;

Convecting type.

1)Heating power depends on assembling methods, direction of the heater;

2)Keep air flowing itself for heat could be diffused;

3)The heating power will be increased 2~4 times, when the heater is blowed;

4)The heating power will be increased, when the heater is assembled on a metal holder.

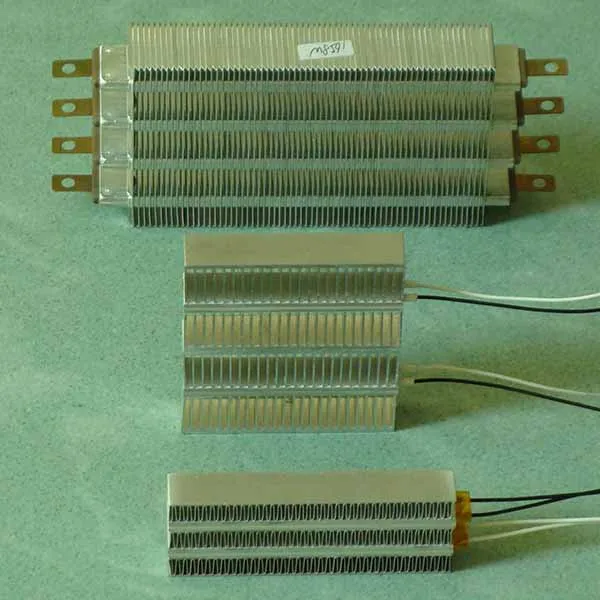

Insulated multi-slice herater.

Part number	Length of heating part/mm	Height /mm	Width /mm	Applied voltage /V	High pot voltage /V	Switch temperature /°C	Power /W (5m/s, airflow)
MZFRJ-24J300Z90-220V5	300	90	26	220	3750	250	2400
MZFRJ-33J400Z90-220V5	400	90	26	220	3750	250	3300
MZFRJ-41J500Z90-220V5	500	90	26	220	3750	250	4100





Part number	Length of heating part/mm	Height /mm	Width /mm	Applied voltage /V	High pot voltage /V	Switch temperature /°C	Power /W (5m/s, airflow)
MZFRJ-9.0J100Z60-220V4	100	60	30	220	3750	250	900
MZFRJ-18J200Z60-220V4	200	60	30	220	3750	250	1800
MZFRJ-25J100Z60-220V4	300	60	30	220	3750	250	2500

Notice:

1) Customer’s required power and dimensions was possible; the larger is the area of radiator, the larger is the heating power;

2) 100~400V of rated voltage, DC or AC, are possible;

3) UL file for PTC pellet: E207611;

4) 80~250°C of switch temperature is posible; the power is direct ratio with temperature difference (ΔT = switch temperature-ambient temperature).
