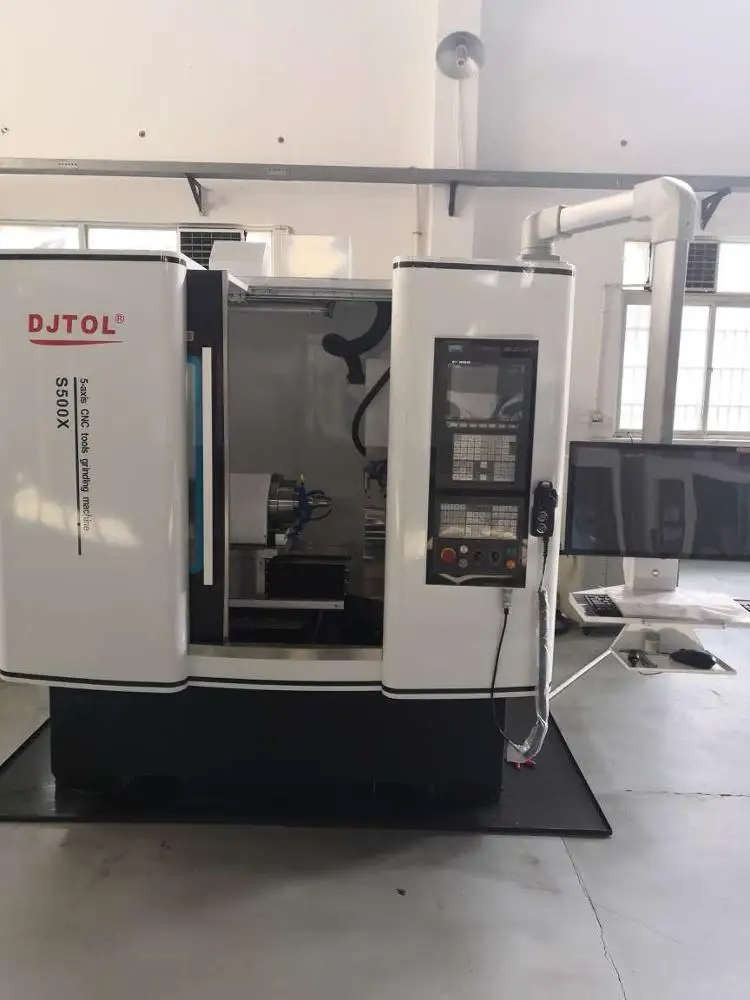

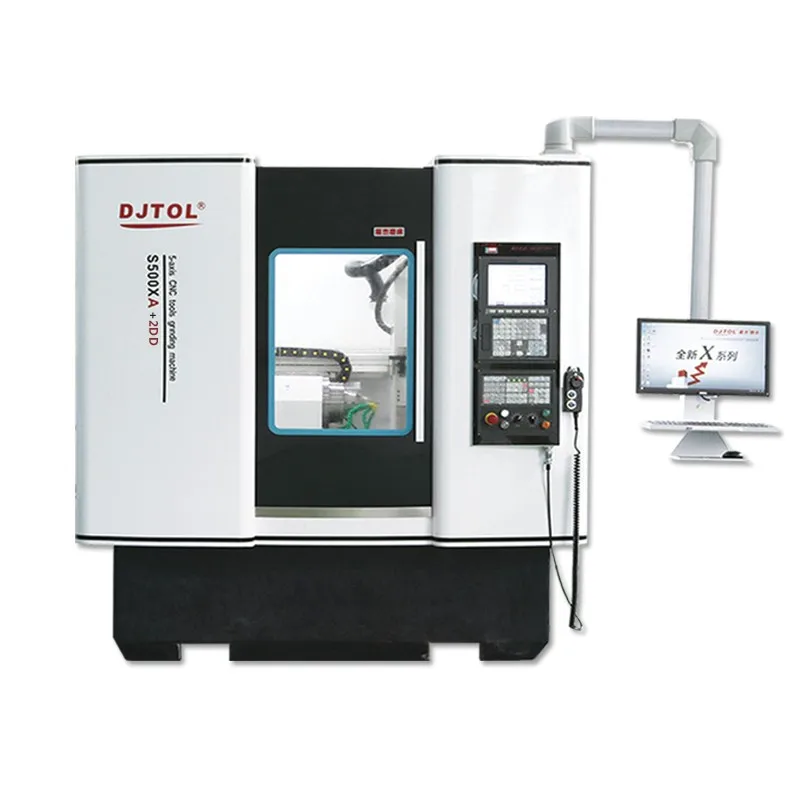

Medium 5 aixs CNC Tools grinding machine S500X series
Medium 5-aixs CNC Tools grinding machine S500X series
Medium 5-aixs CNC Tools grinding machine S500X series

Medium 5 aixs CNC Tools grinding machine S500X series

Share on (534091272):


Price:RUB 7,596,880.00 - RUB 11,395,320.00

Quantity:


Product Overview

Description

Product Description

Product Features

   Daijie Company is one of the five-axis CNC tool grinding machine pioneers in China since 2009,it has started to launch the first generation five-axis CNC tool grinding machine S500T, and in 2016, the improved version of S500T+ with the A-axis as DD was launched. S500XA is the new upgraded version of S500T+,it is officially quantity launched in June,2018. We constantly improve and upgrade the machine design to ensure customer costs effectiveness and high level of product quality by using our machine, it's greatly upgrading in quality and efficiency and is greatly welcomed by market. Compared with the S500T+, the S500XA has greatly improved in hardware and software. The marble base replaces the cast iron, the servo spindle replaces the electric spindle, and the C-axis uses precision bearings.The improvement part of software system is that the system is newly upgraded, the transmission speed is fast, the resolution is higher, the processing speed is faster, the built-in machine with new design,small space, high efficiency. The overally equipment of S500XA has a significant increase in accuracy, stability and efficiency.     This equipment is suitbale for processing round handle tools up to 12mm such as end mills, IT cutters,wood cutters,drills, reamers, step cutters and etc.


Processing Content
Types of processing and grinding tools: Round shank tools, such as integral milling cutters, IT cutters, woodworking cutters, medical tools, drills, reamers and other hole processing tools, processing range 1 mm to 12 mm of solid carbide tools

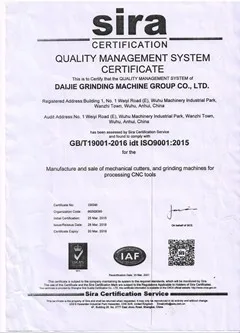

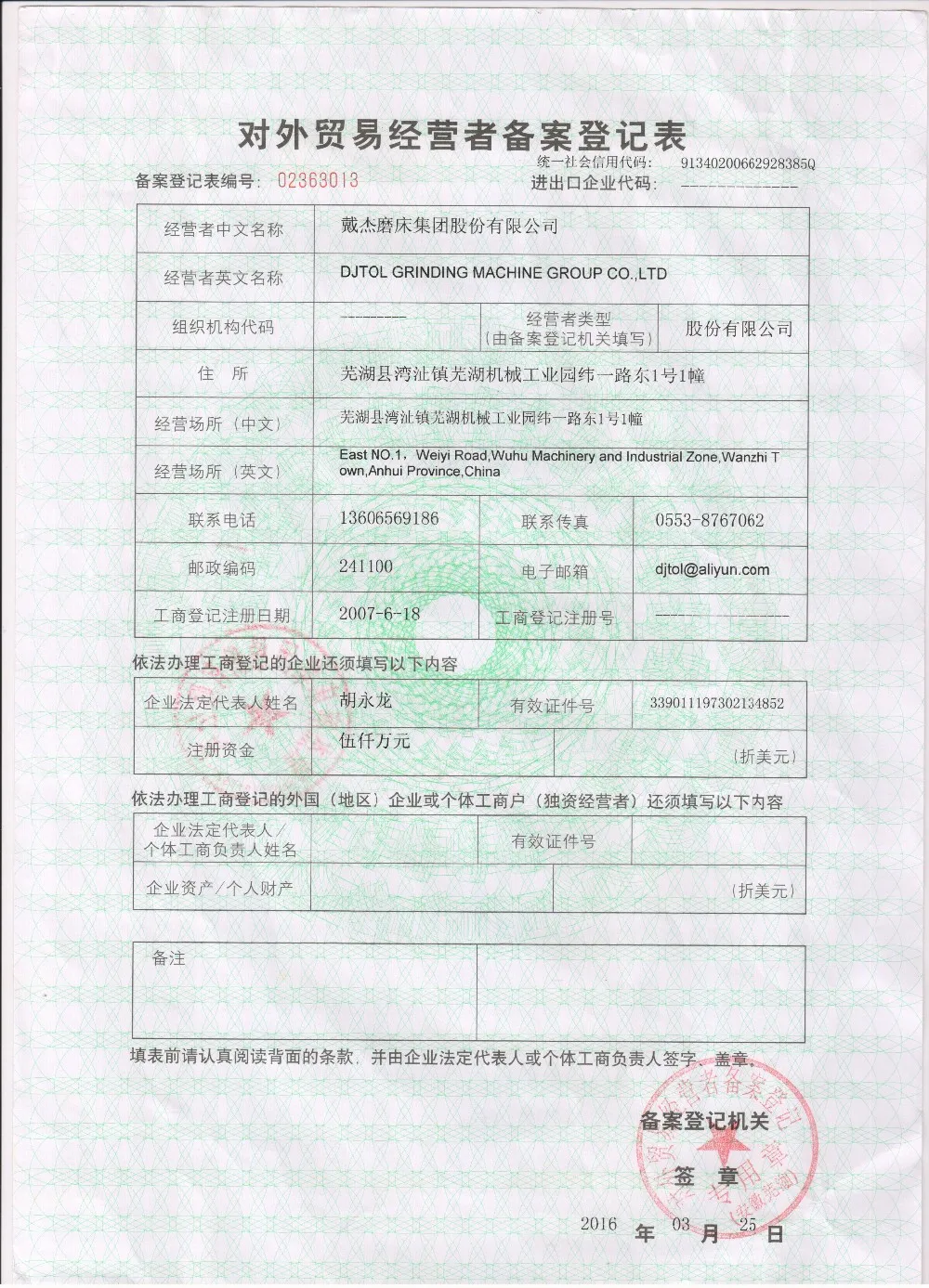

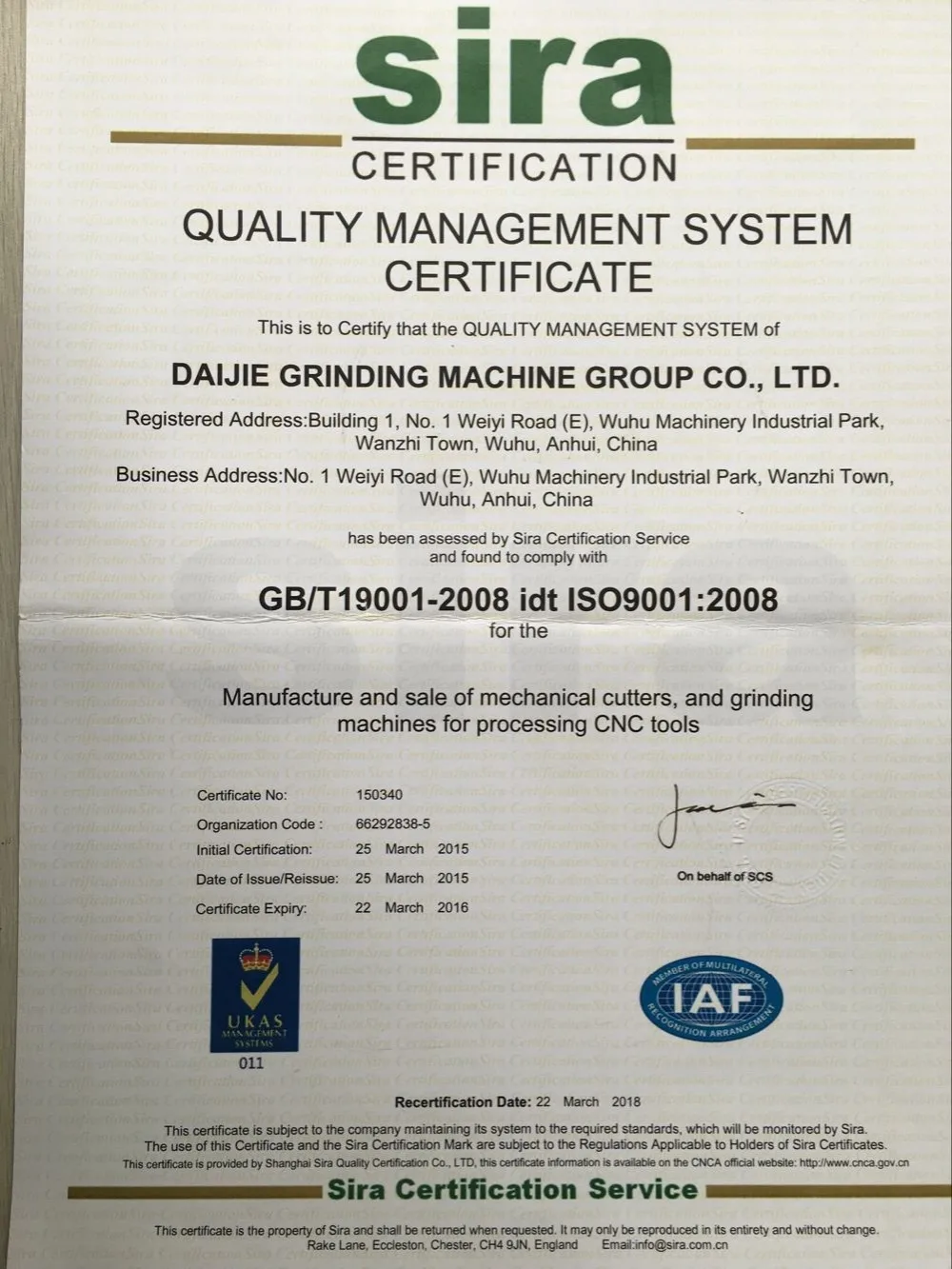

Certifications
Detail Display

Machine Parts

Name: Direct-drive dividing head

Direct-drive dividing head: direct -driven, zero wear and tear, quick and accurately wheel dressing, high accuracy of separation, high quality and high efficiency cutting tool production

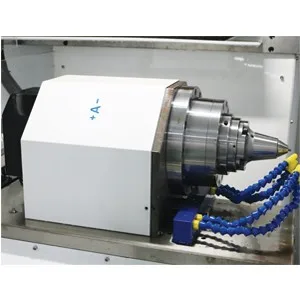

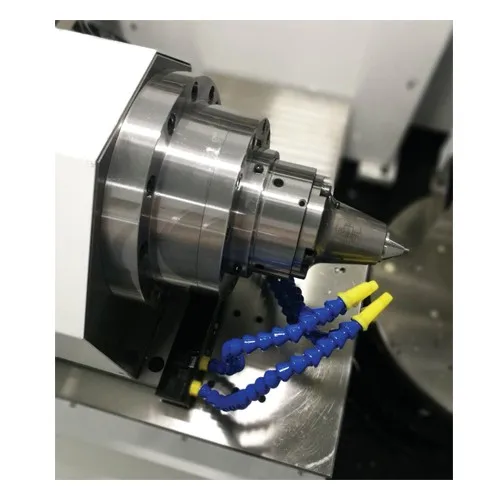

Name:  A-axis of machine

A-axis of machine: A-aixs clamping chunck is from Schaublin, fast speed of installing tools

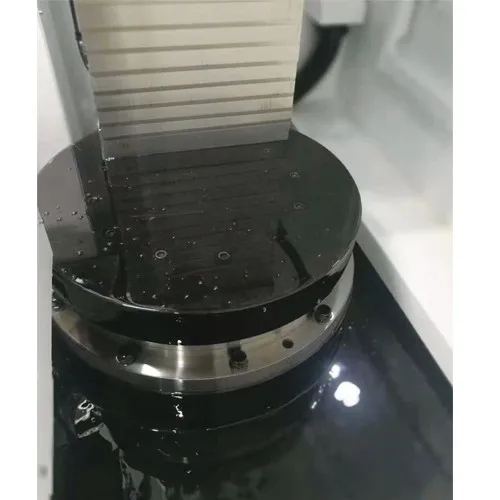

Name: Direct drive C-axis

Direct drive C-axis: High rigidity, zero clearance, no wear, high repeat position, fast speed

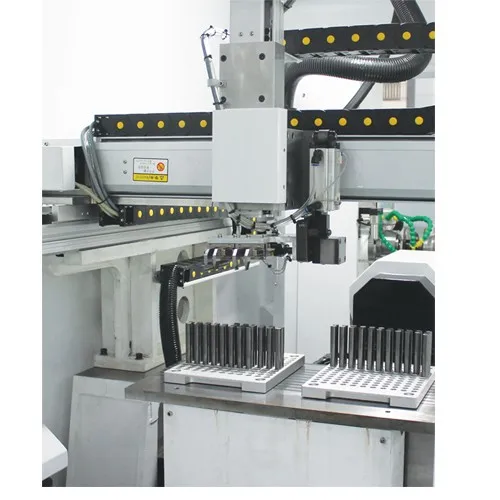

Name: Automatic loading and unloading

Automatic loading and unloading: Greatly improve production efficiency and save labor costs

After-sales service

1.Warranty period: one year from the date of final acceptance of machine by buyer/customer.

2.During warranty period, the supplier is responsible for equipment failure as long the user use the machine in proper and according to our recomended working condition as status in our operation manual. The supplier provides free maintenance include change of spare parts, free labour and any cost involved.

3.The seller has duty to maintain/service the machine whether in the warranty period or after the warranty period. After receipt the service/ maintenance request, our maintenance staff will go to the site on specified time.

4.The customer can call our technical support hotline 24 hours daily.

Packing & Delivery
Packaging
Size
2300 (L) * 2900(W) * 2400mm(D)
Weight
4200kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

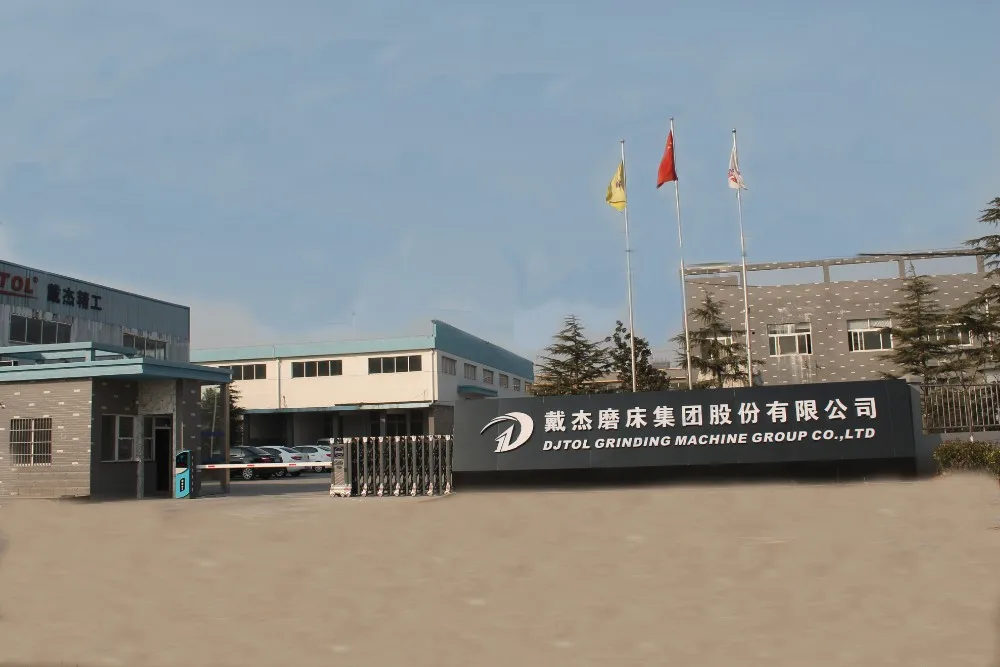

Factory Photo
