Jinan FASTCNC угловой профиль, выпрямляющий станок для угловых каналов, труб, круглых Стержней, квадратных стальных пластин

Product Overview

Description

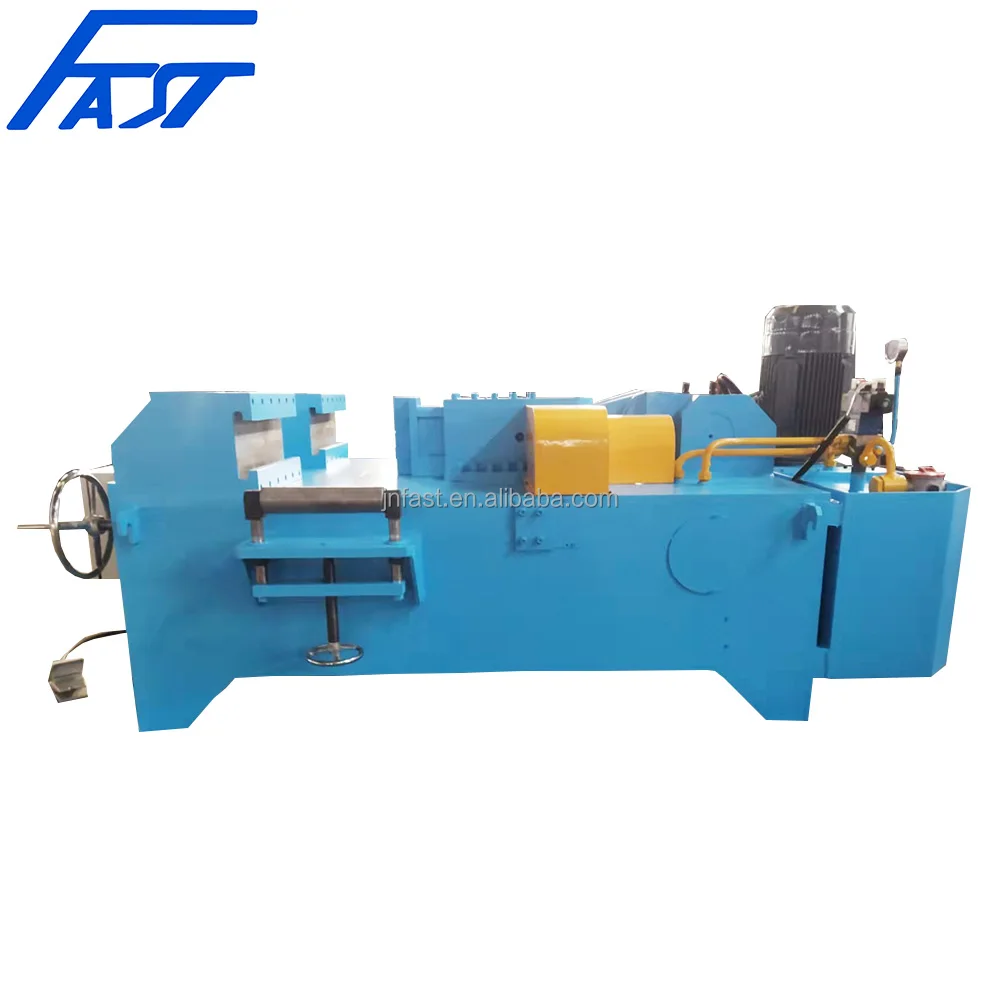

Jinan FASTCNC Angle Profile Straightening Machine For Angle Channel Pipe Round Bar Square Steel Plateia

APPLICATION

The machine is used for straightening, opening& closing or bending for angles, channels, H-beam, square, round, pipe, shafts, ect. This machine is widely used in the winding, power, bridge, construction industries, iron tower, metal plates and maintenance industries. Also, this machine can be used as horizontal pressing equipment.



FEATURES

• The fuselage of section straightening machine the C steel welding structure.


• The transmission styles include hydraulic transmission and engine transmission.


• Operation location is divided into single location and double location. Each location has the alone disposition seal width-adjusting device.

TECHNICAL DATA

Model	XZ20/14K	XZ25/18K
Max. Straightening Force (kN)	1000	1000 (Option 1600)
Max. Straightening Angle (mm)	200*200*20	250*250*25
Max. Straightening Round Steel(Diameter)	150	150
Max. Straightening Channel Steel(Diameter)	260	260
Max. Straightening Band Steel(Diameter)	260	260
Max. Straightening Square Steel(Diameter)	150	150
Machine Format	Horizontal
Max. Opening Angle Size (mm)	140*140*12	180*180*18
Max. Opening & Closing Angle (°)	90°±25°
Stroke Time (m/min)	>25	>25
Working Stroke (mm)	20	20
Close Width Adjuster (mm)	100	100
Motor Power	7.5	11 (Option 15)
Overall Dimension L*W*H (mm)	2200*1200*700	2400*1300*750
Driving Mode	Hydraulic Driving, Stepless Adjustable, Easy Operating.

•  All of these models can be customized according to customer requirements.

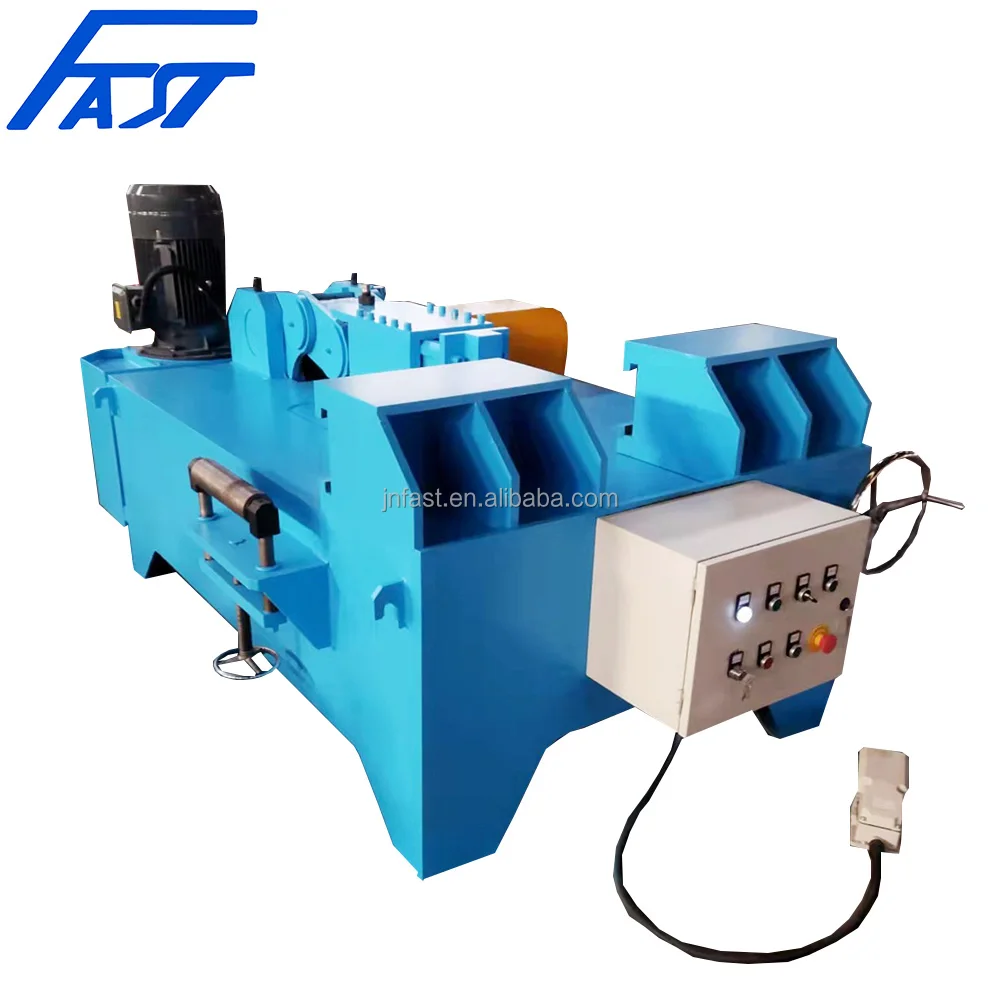

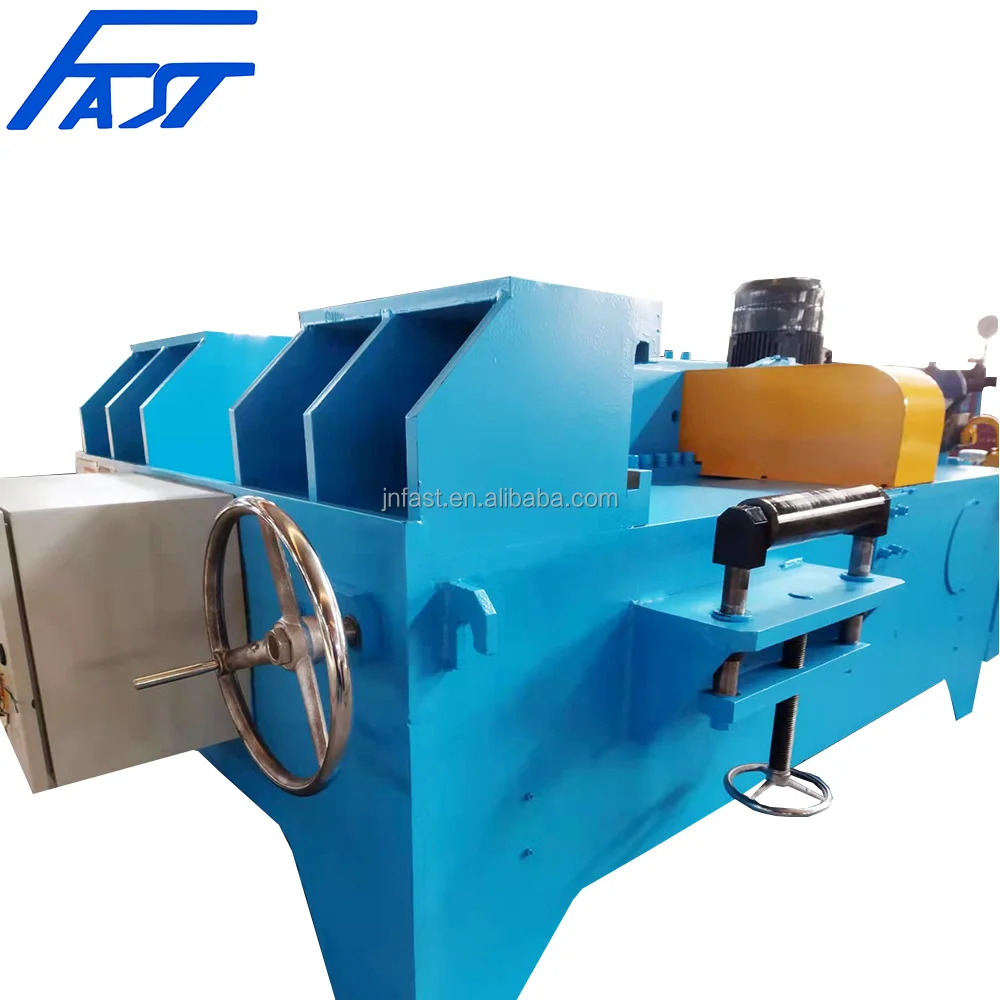

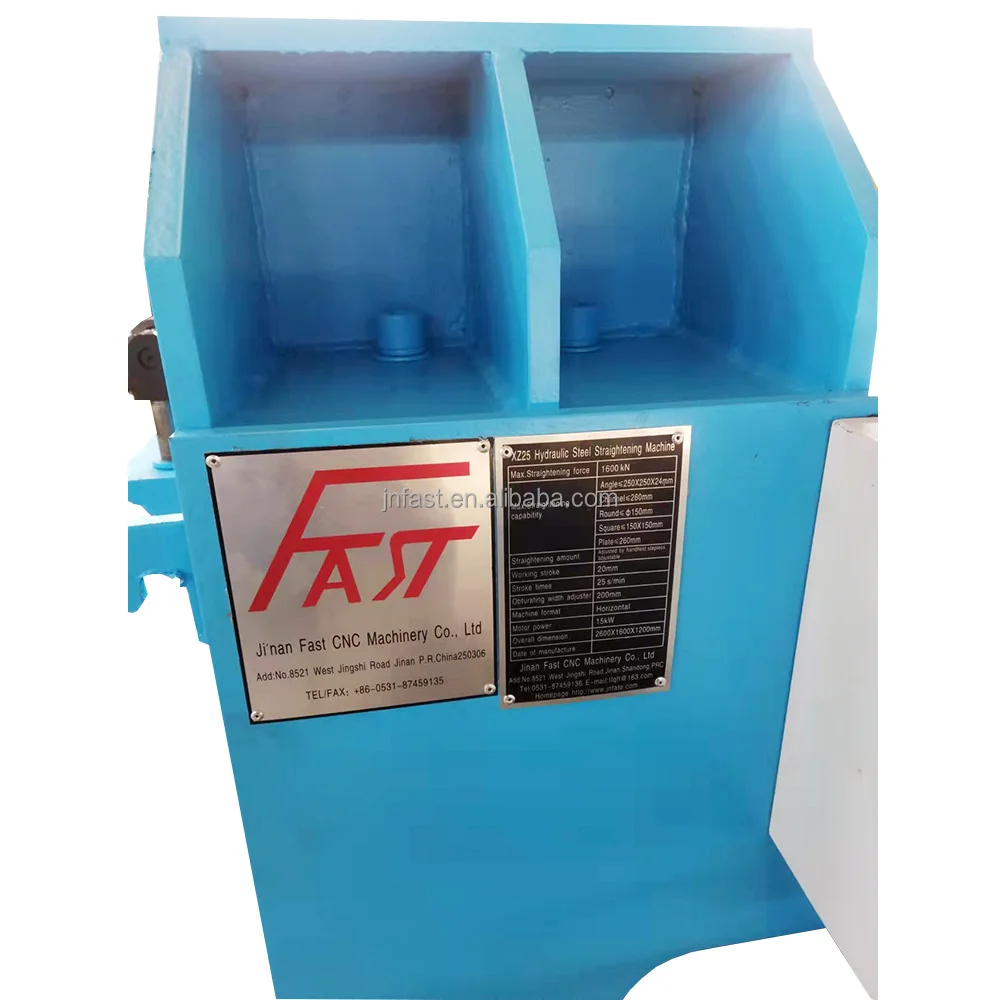

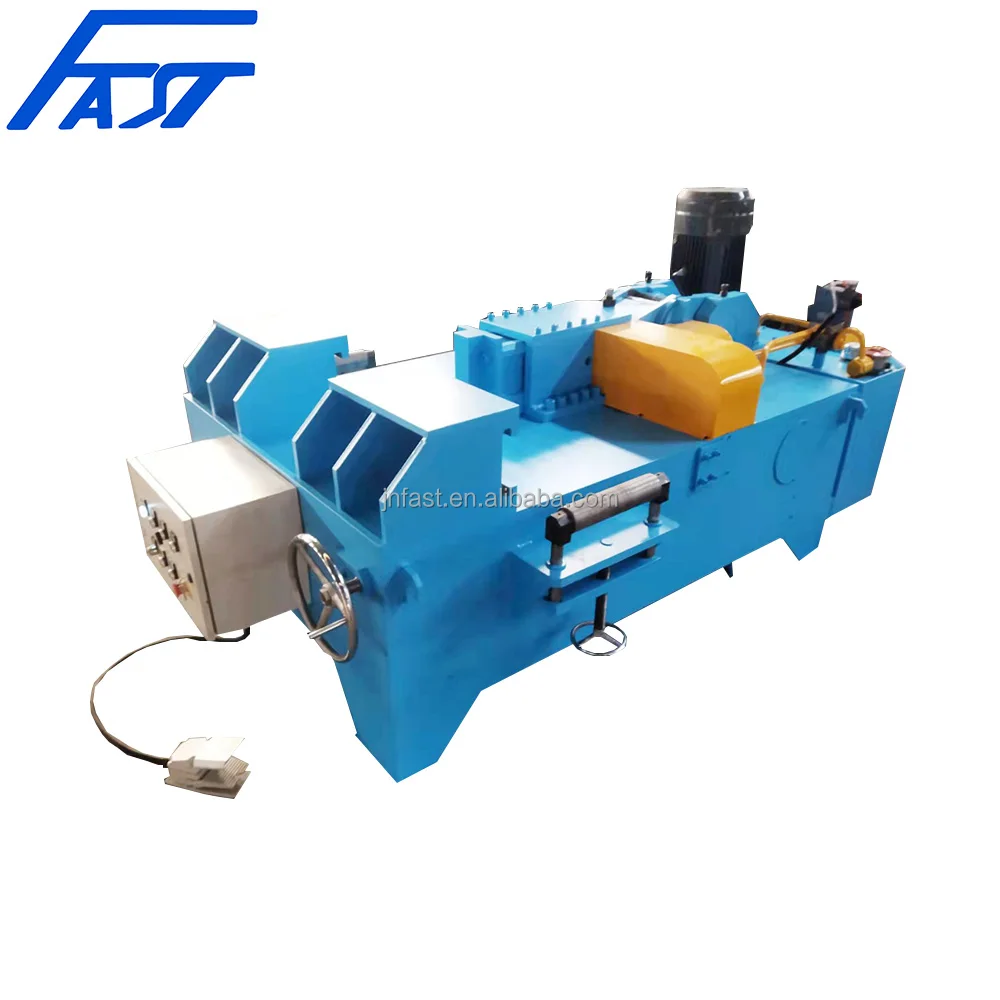

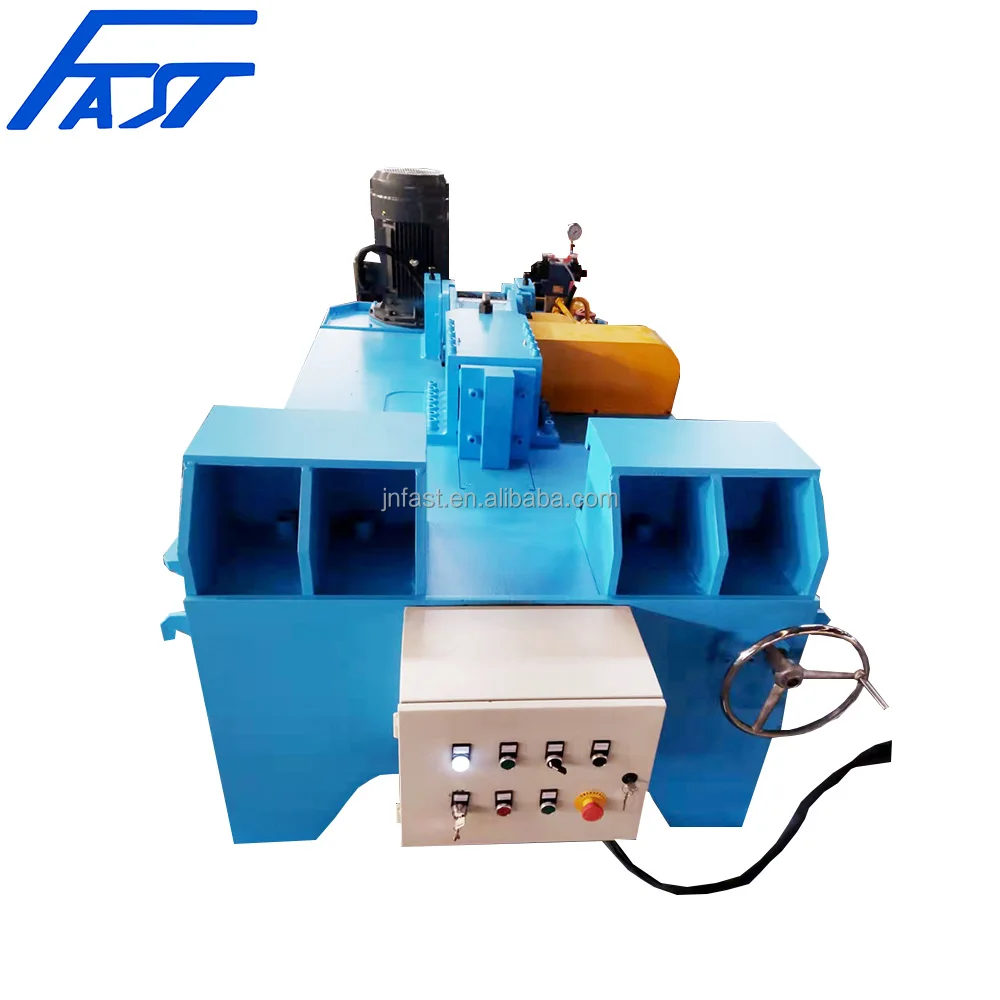

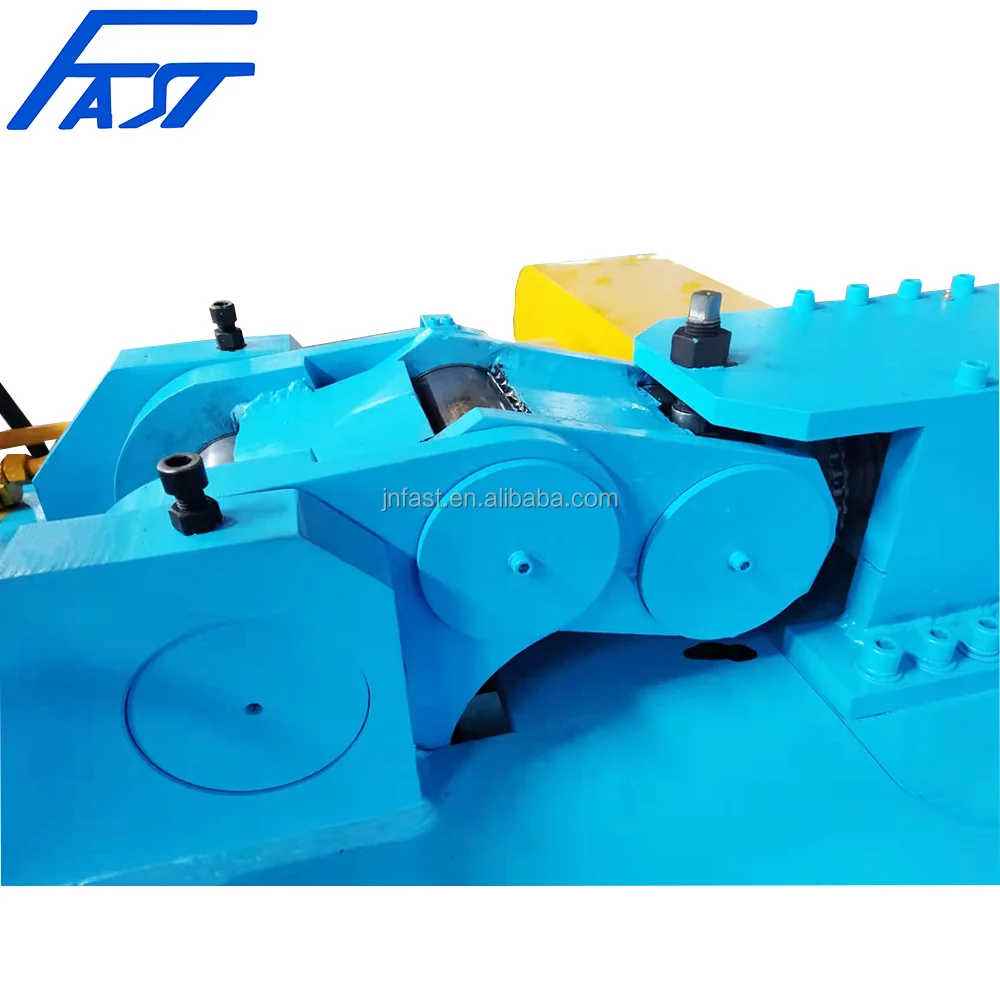

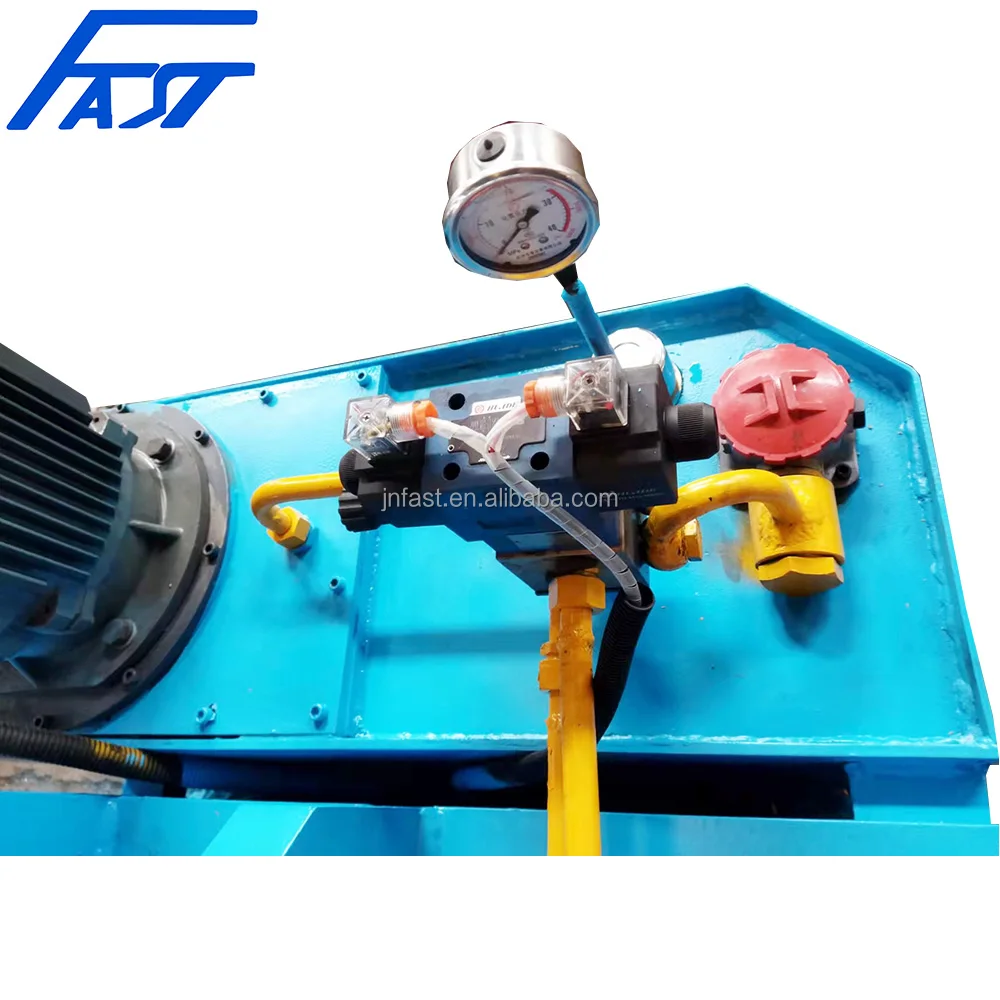

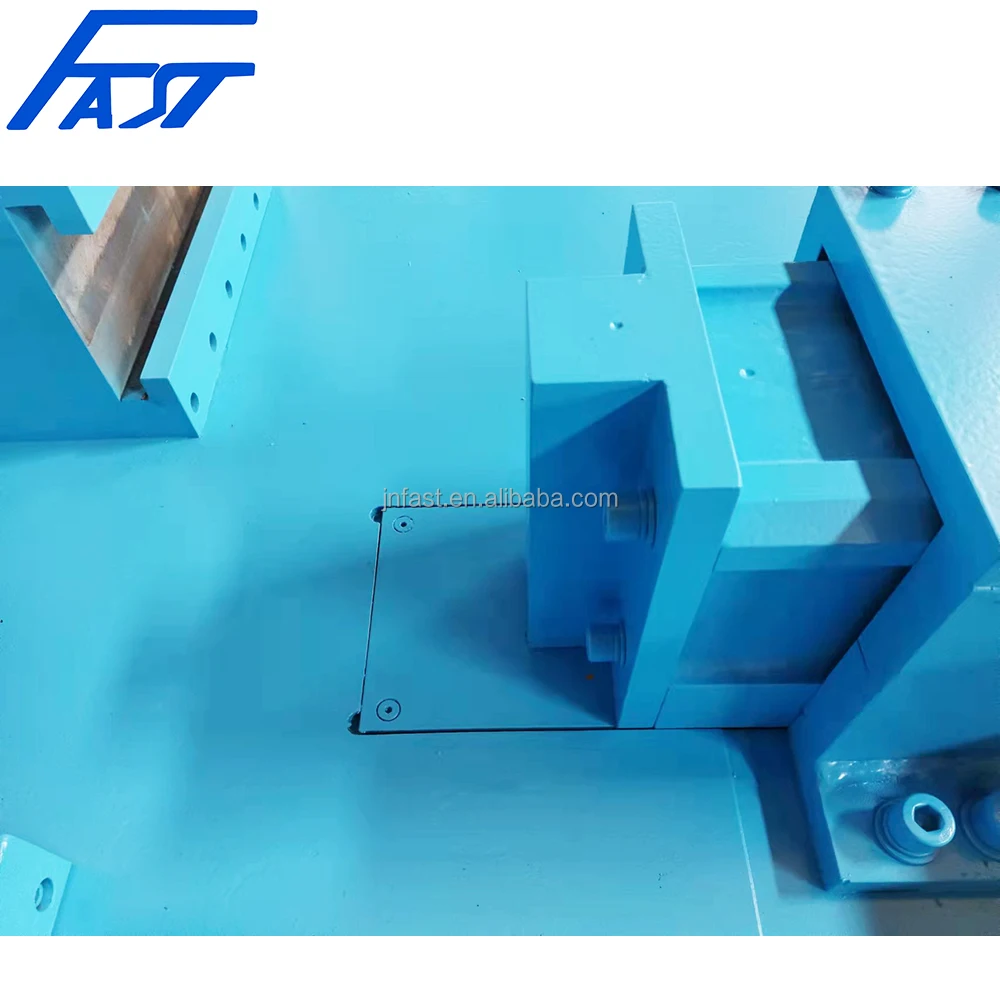

DETAIL IMAGES
