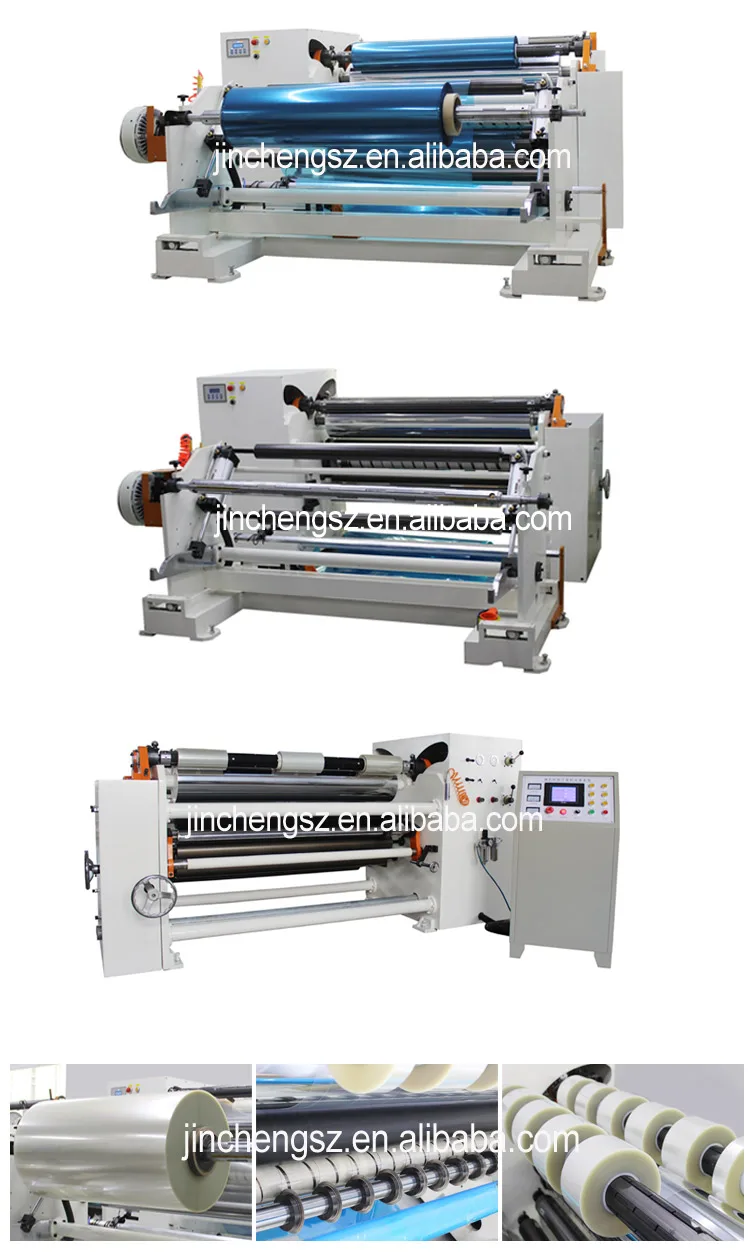

Automatic Film and paper jumbo roll slitter rewinder machine

Product Overview

Description



Automatic Film and paper Roll slitter rewinder machine



• Function:
• Suitable for slitting rewinding paper, film, adhesive tape such as BOPP, PE, PET,
• masking tape, double sided tape, self adhesive material, release paper, etc.


• Main technical parameters:

Machine width	650-1600 mm
Max Unwid. diameter	800 mm
Max Rewind diameter	420mm
Min slitting width	5 mm
I.D of paper core	3 ''/6''
Cutting tolerance	±0.1 mm
Speed	0-150 m/min
Voltage	3 phase 380V/50HZ (As required)





• Features:



1.Independent feeding shelf (You can choose the automatic type feed-in system).

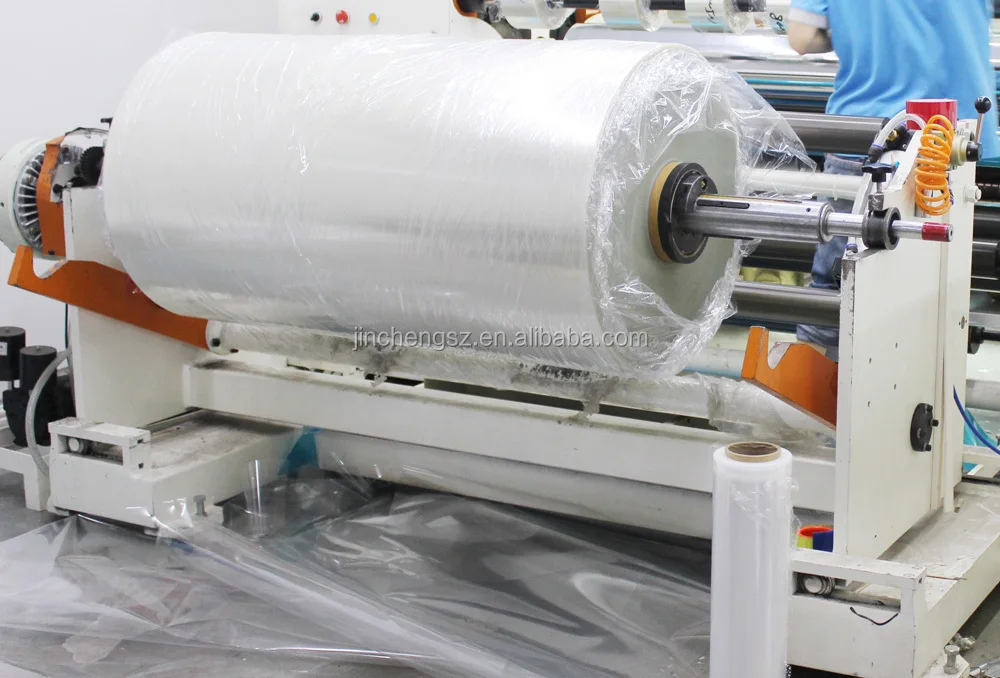

2.The unwinding and rewinding use air shafts, and the stability paper tube very fast for unloading the materials.



3.Setting two-step length counter to control the slitting and rewinding length, the first step to reduce the  speed,

the second  step to make the machine stopping steady and accurately length counter.

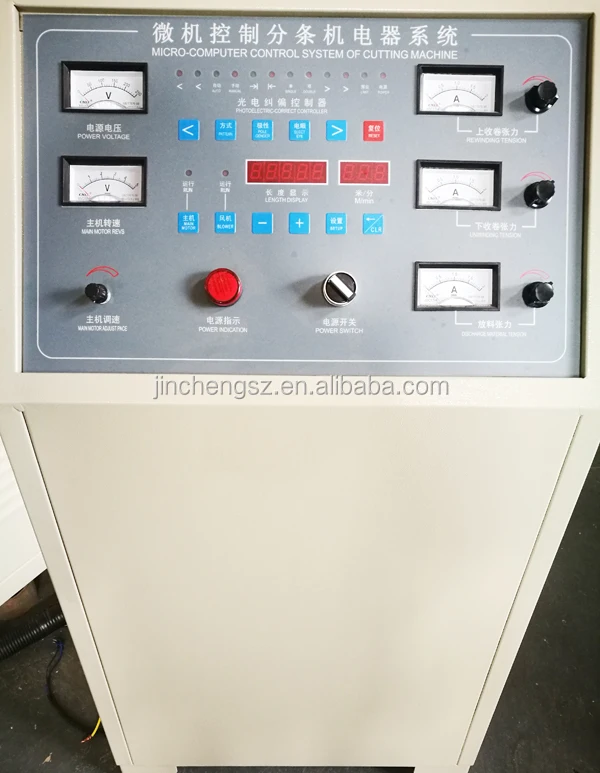

4.Tension control system with the digital dispaly system.

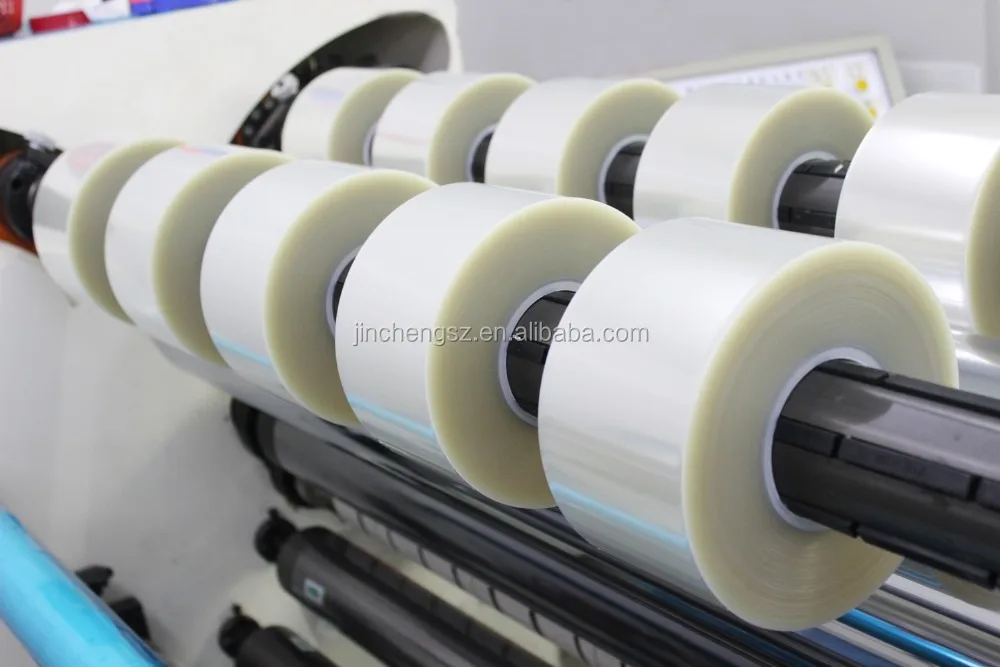

5. Slitting:  circular blades.

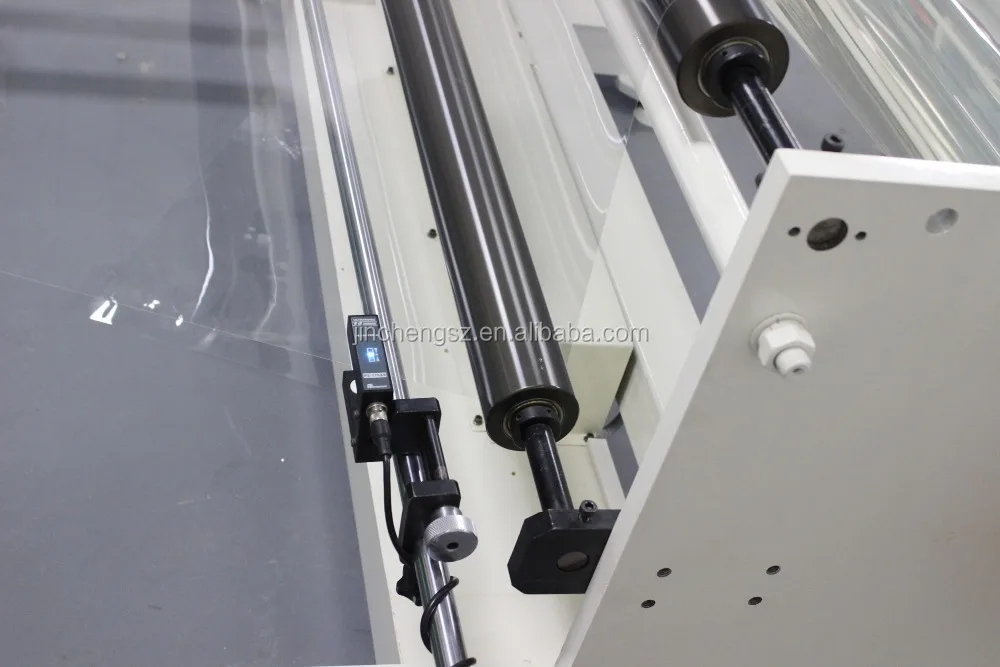

6.Automatic offset correction for the unwinding the jumbo rolls.



7.Special design for avert scuffing, makes the  finished product avoid scraping.
