AFC60G 60mm 110v 230v Cross Flow Fan

Product Overview

Description









AFC60G 60mm 110v 230v Cross Flow Fan





HOUSING	Metal/Aluminum
IMPELLER	Aluminum,Ø60mm
BEARING	Ball
INSULATION	Class A
OPERATING TEMPERATURE	0°C to + 45°C
OPERATING VOLTAGE RANGE	85 VAC to 125 VAC for 115V Type
	185 VAC to 245 VAC for 230V Type
DIELECTRIC STRENGTH	1,500 VAC for 1 second
INSULATION RESISTANCE	10M Ω min. @500 VDC
SAFETY	Thermally Protected
MOTOR TYPE	Capacitor Motor
ROHS COMPLIANCE	Yes
IP LEVEL	IP21 (Special IP Rating On Request)

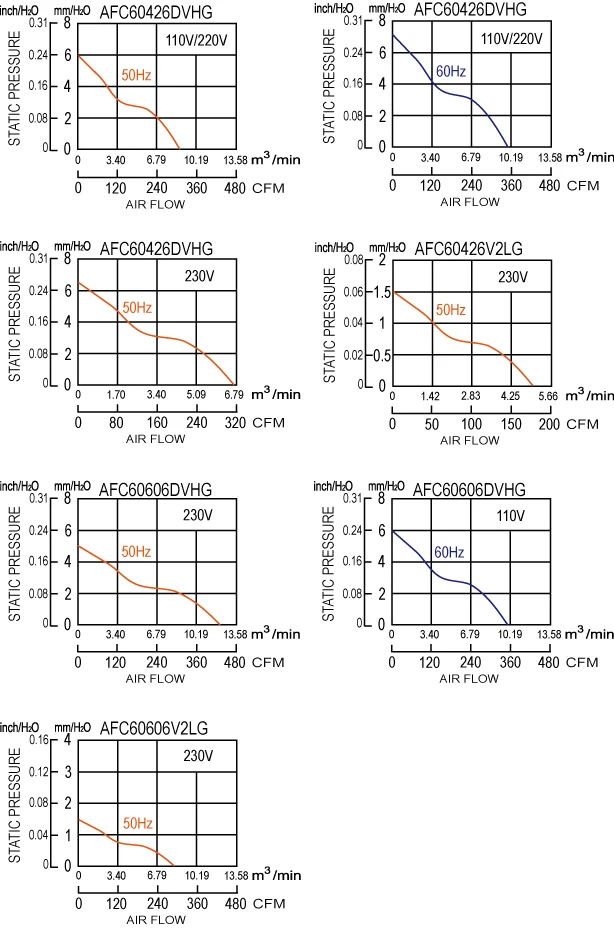

Model No.	RATED	FREQUENCY	RATED	INPUT	SPEED	MAX. AIR PRESSURE		MAX. AIR FLOW		NOISE dB(A)
	VOLTAGE	(Hz)	CURRENT	POWER	(RPM)					@1M
	(V)		(A)	(W)		inchH2O	mmH2O	CFM	m3/min
AFC60426DVHG	110	50/60	0.42/0.56	45/62	2600/2800	0.24/0.28	6/7.2	300/354	8.5/10	55/57
AFC60426DVHG	220	50/60	0.22/0.29	47/64	2600/2800	0.24/0.28	6/7.2	300/354	8.5/10	55/57
AFC60426DVHG	230	50	0.22	49	2700	0.26	6.5	318	9	56
AFC60426V2LG	230	50	0.11	26	1700	0.06	1.5	177	5	34
AFC60606DVHG	110	60	0.67	73	2000	0.24	6	354	10	51
AFC60606DVHG	230	50	0.28	64	2300	0.2	5	424	12	54
AFC60606V2LG	230	50	0.11	26	1400	0.06	1.5	283	8	37
