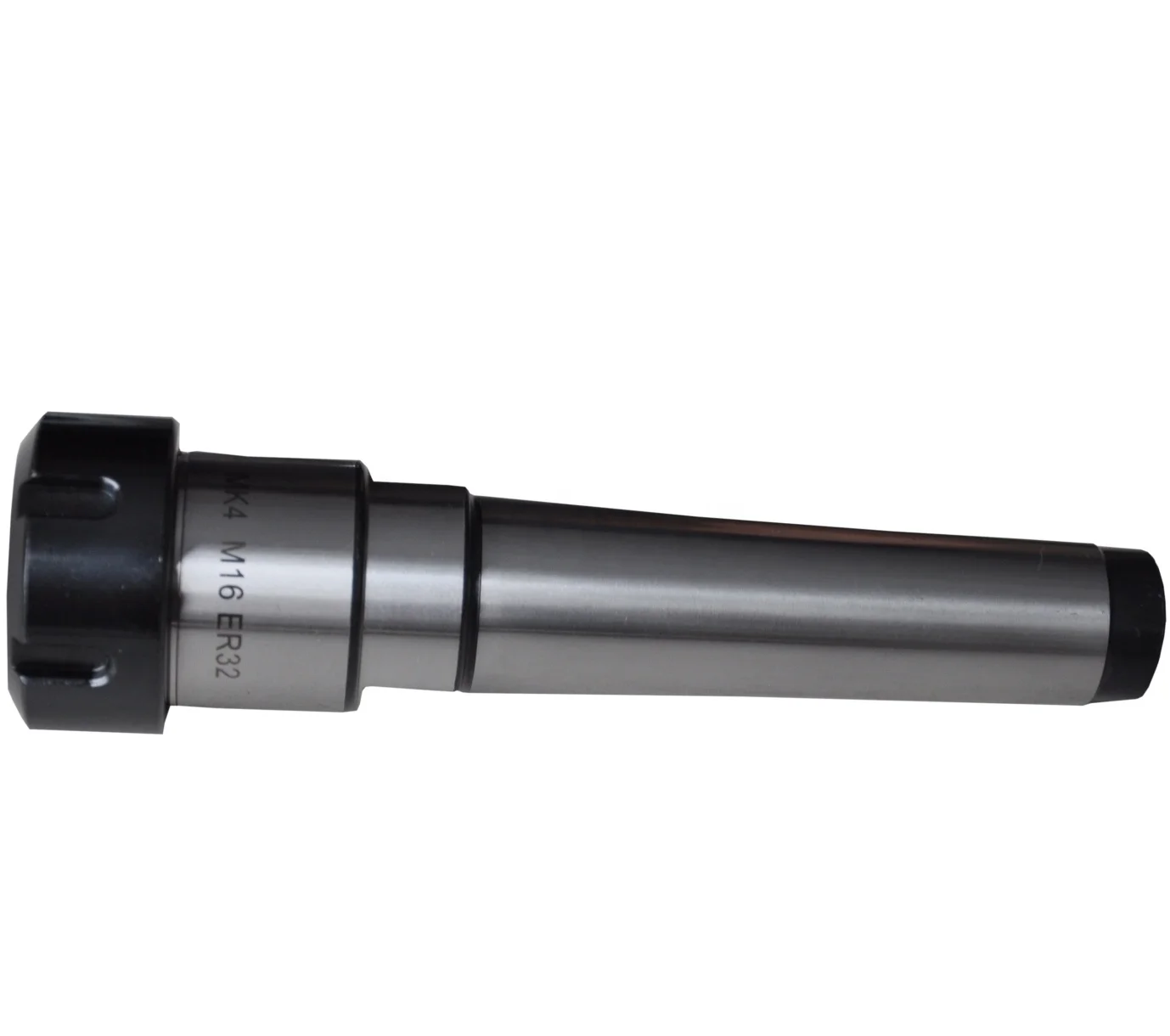

morse taper MT ER collet chuck

Product Overview

Description

morse taper collet chuck
1Ms no.Ms2,Ms3,Ms4,Ms5
2.with Er collet:ER11-Er50

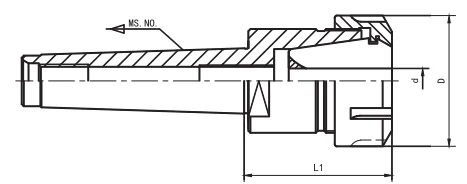

model no.	MS no.	d	D	L1
MS1XER11	MS2	1-7	19	35.3
MS2XER16	MS2	1-10	28	44.3
MS2XER20	MS2	1-13	34	53.3
MS2XER25	MS2	1-16	42	57.7
MS3XER16	MS3	1-10	28	49.3
MS3XER20	MS3	1-13	34	56.2
MS3XER25	MS3	1-16	42	55.7
MS3XER32	MS3	2-20	50	65.7
MS3XER40	MS3	3-26	63	71.7
MS4XER16	MS4	1-10	28	46.5
MS4XER20	MS4	1-13	34	51.7
MS4XER25	MS4	1-16	42	46.7
MS4XER32	MS4	2-20	50	74.2
MS4XER40	MS4	3-26	63	69.7
MS5XER40	MS5	3-26	63	69.2
MS5XER50	MS5	6-34	78	85



packaging way:Inner packing is by plastic box.The outer packing is by cartons.Pallet is available upon the customer's request.



Shipment way:We can send the goods by sea,air or courier(DHL,TNT,FEDEx etc) according to the customer's requirement.



Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.



Our Services and reputation: we have been the supplier at Alibaba for 14(fourteen) years.

 We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
