DEUTZ MWM TD226B 4C Marine engine 60KW/1500RPM

Product Overview

Description

DEUTZ MWM TD226B-4C Marine engine 60KW/1500RPM

Type Water cooled, inline, 4-strike,

natural aspiration, turocharged, turbocharged and intercooled

Num.of cylinders 4

Bore/Stroke(mm) 105/120

Displacement(L) 4.16

Min.Fuel consumption(g/kw.h) ≤198

Min.oil consumption(g/kw.h) ≤1.36

idle speed(r/min) 600±50

Average noise dB(A) ≤100

Steady gorenor radio ≤8%

Firing Sequence 1-3-2/1-3-2-4/1-5-3-6-2-4

Starting method Electricity

Cooling method Water cooling forced circulation

Lubricating method Pressure lubricating

Lub.oil volume(L) 15 ( 6-cylinder)

Crankshaft rotation direction anti-clockwised

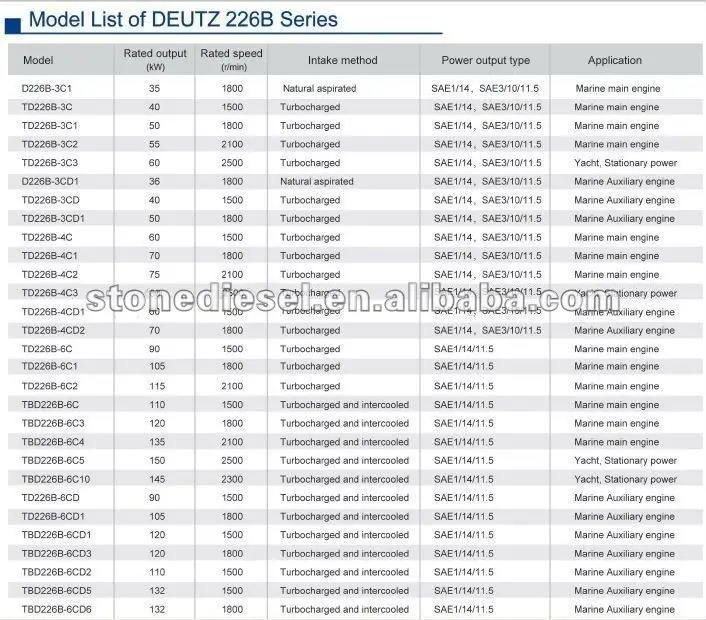

Type	Cylinder-numbers	Displacement(L)	Rated Output(kW)	Rated speed(R/min)
TD226B-3C	3	3.117	40	1500
TD226B-3C1	3	3.117	50	1800
TD226B-3C2	3	3.117	55	2100
TD226B-3C3	3	3.117	60	2500
TD226B-4C	4	4.156	60	1500
TD226B-4C1	4	4.156	70	1800
TD226B-4C2	4	4.156	75	2100
TD226B-4C3	4	4.156	80	2500
TD226B-6C	6	6.234	90	1500
TD226B-6C1	6	6.234	105	1800
TD226B-6C2	6	6.234	115	2100
TD226B-6C3	6	6.234	120	2500
TBD226B-6C	6	6.234	110	1500
TBD226B-6C3	6	6.234	120	1800
TBD226B-6C4	6	6.234	135	2100
TBD226B-6C5	6	6.234	150	2500
