Network telephony Caller ID USB Interface, free SDK, VB,VC,VF,DEPHI C#

Product Overview

Description

Key features:



-Incoming/outgoing number, time & date record

-Conversation duration counting

-Compatible with ETSI/Bellcore FSK and DTMF caller ID

-Live line operating status indication

-Flexible system parameter programming

-HID USB data transmission without USB driver

-Multiple system LED indicator status control

-Provide several talking startup conditions

-Expandable to 4 devices simultaneously

-Start talking interval & missed call time setting

-Provide polarity reversal detection



Product Sepcification:

System Requirements:
Pentium 400 MHz CPU or above
Windows98se/XP/2000/NT OS
10MB HD space or above
128 MB RAM
CD-ROM
Standard USB port
Standard RJ11 port

USB Audio Function:
Supports USB2.0 Full Speed
Supports USB Audio Device Class Specification 1.0
Supports Microsoft Windows98se/ ME / 2000/ XP


Environment Requirement:
Operation Temp 0oC - 50oC (32oF - 122oF)
Storage Temp -30oC - 65oC (-22oF - 149oF)
Operation humidity 10% - 90% without congealment


Specification:
Product: Single line USB Caller ID interface
Item No.: AD101
Dimension: 138(L) × 106(W) × 25(H) (mm)
USB cable: 1.5M
Weight: 187 g

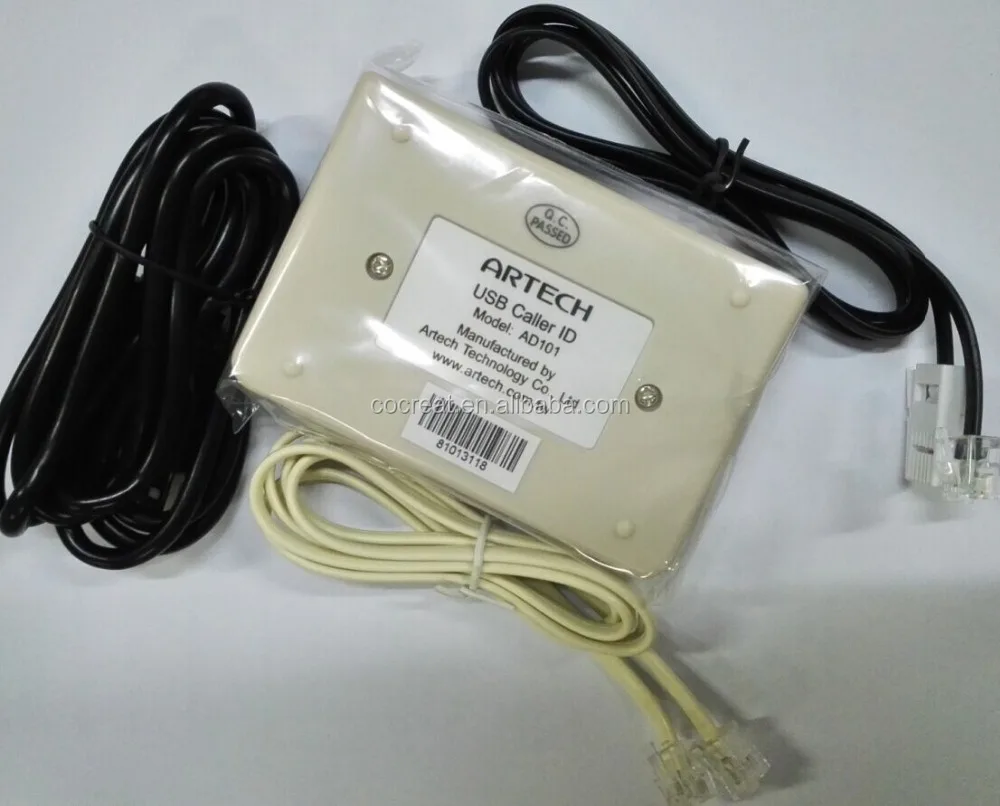

Contents: AD101 hardware,SDK(AIP) and DEMO Driver-CD,USB Cable,RJ11 Cord,User’s manual
