Good Price Swimming Pool Heat Pump Hot Water Heater

Product Overview

Description

Features:

1.Compressor: copeland/Sanyo/Panasonic

2.Expansion valve: refrigerant flow control accurate

3.Evaporator: using surface modification of hydrophilic aluminous foil

4.Cabinet: stainless steel or spray coating

5.Condenser: high quality copper tube coils constructed of inner groove technology

6.Heat exchanger: corrosion resistant titanium material for swimming pools heat exchanger

7.LCD display control panel

8.Intellectual control water pump, water supplement, water discharge and defrosting system.

9.Supply water all day long, guarantee water at the fixed time



Description:

Air source heat pump is a kind of high energy saving water heater and green products.

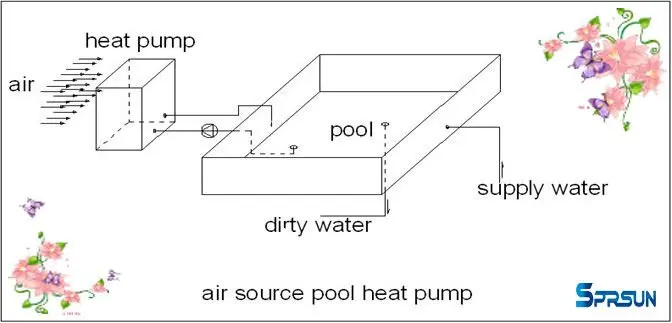

Following is air source heat pump working principle.





Specification:

Model	CGY-18/C
rated input power	KW	4.6
heating capacity	KW	18.4
Max outlet water temp	°C	65
Water flow	L/h	5200
rated voltage	V	380
frequency	Hz	50
phase		three
ABC line	Mm2	4
N line	Mm2	1.5
current	A	9
pipe size	mm	25
net weight	kg	160
gross weight	kg	170
dimension	mm	1120*425*1260
packing dimension	mm	1165*560*1420
noise	db	60
20ft container	PCS	20
40ft container	PCS	40
compressor	Copeland 1pc
condenser	Titanium tube HE
Evaporator	Finned tube HE
Fan motor	Axial fan motor
cabinet	Spray coating

Normal working condition: R417A: air/water temperature: 20°C/45°C; R404A: air/water temperature: 10°C/45°

Good Price Swimming Pool Heat Pump
