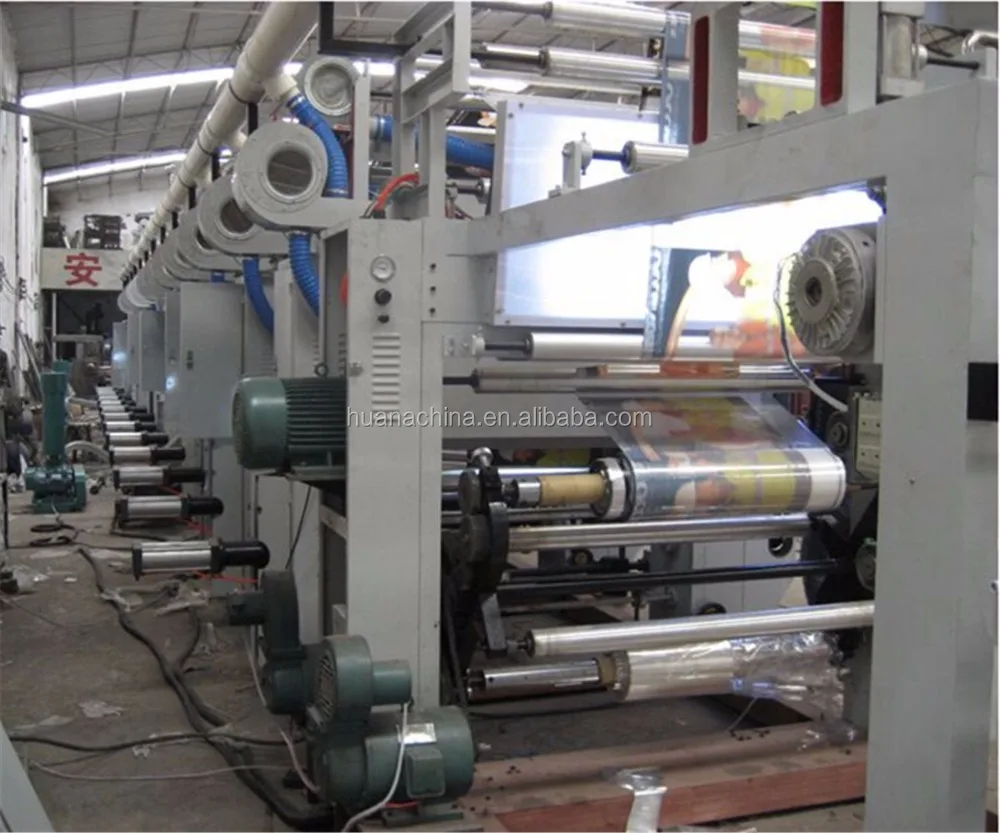

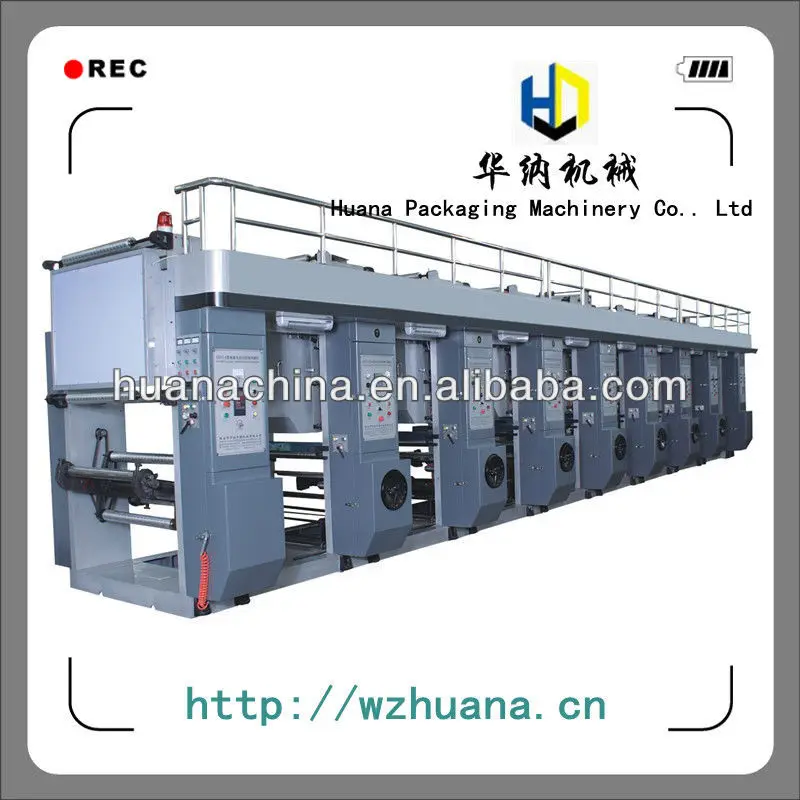

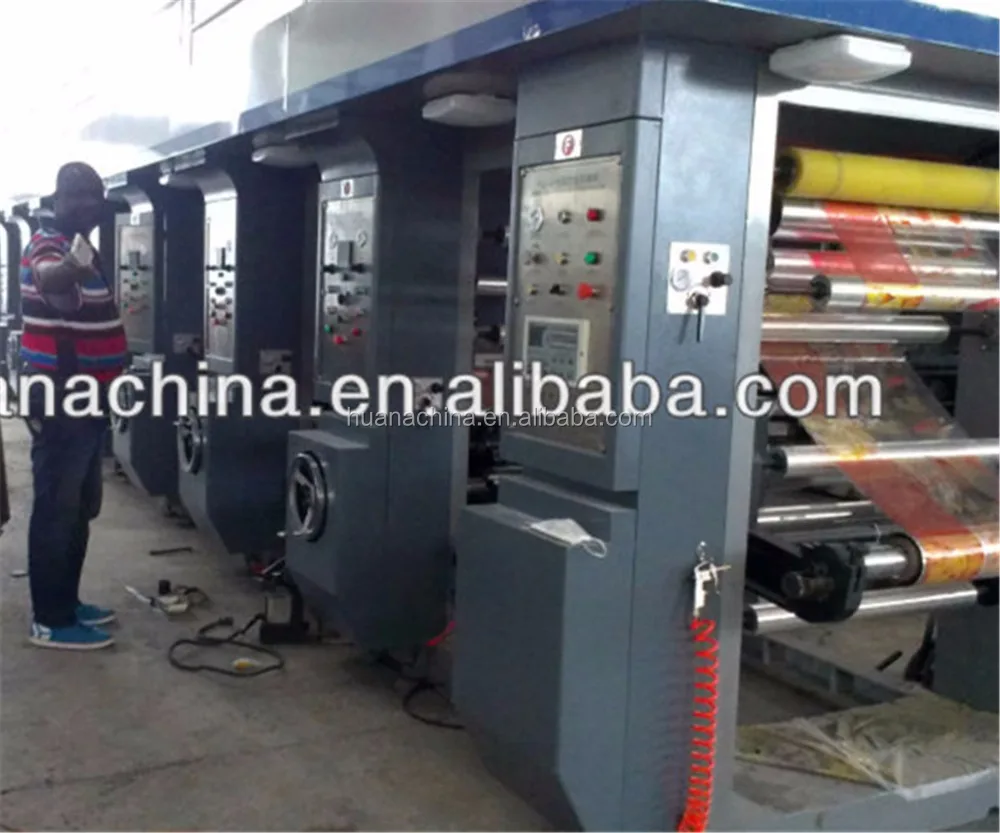

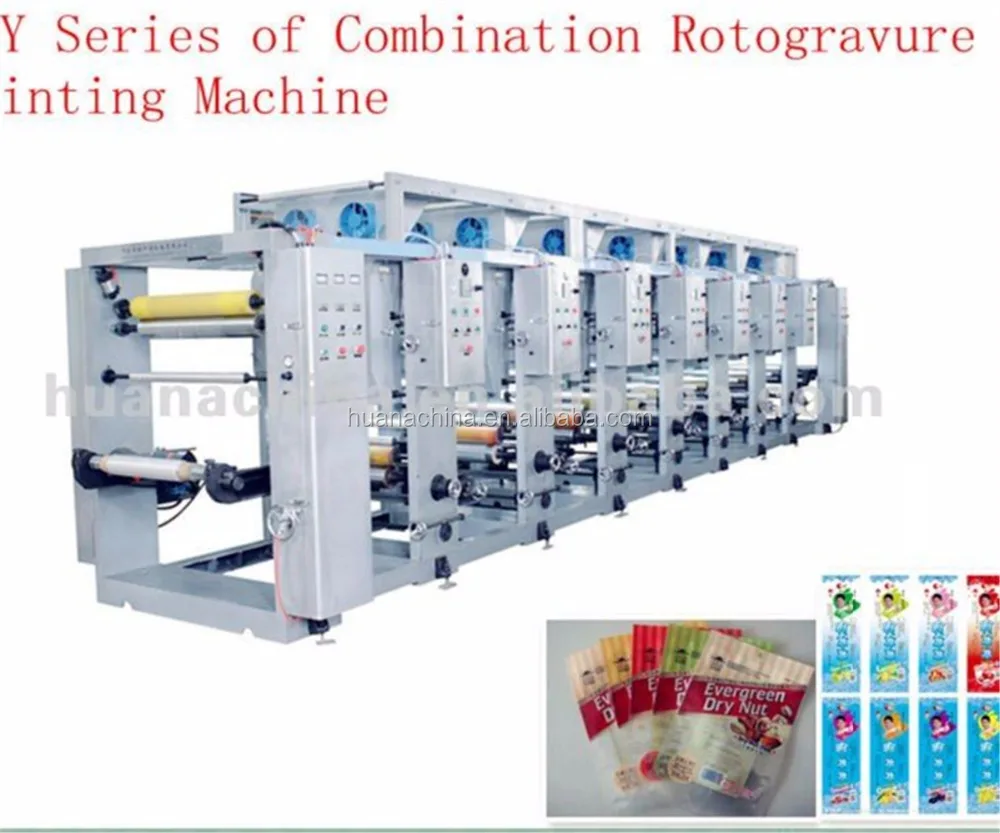

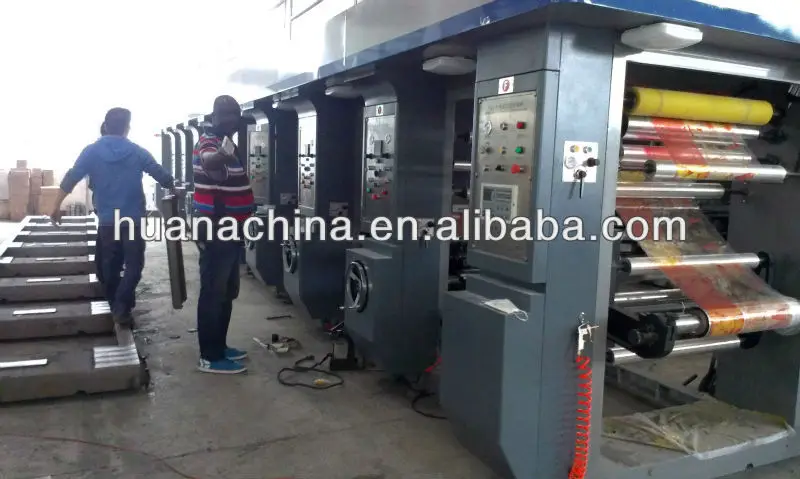

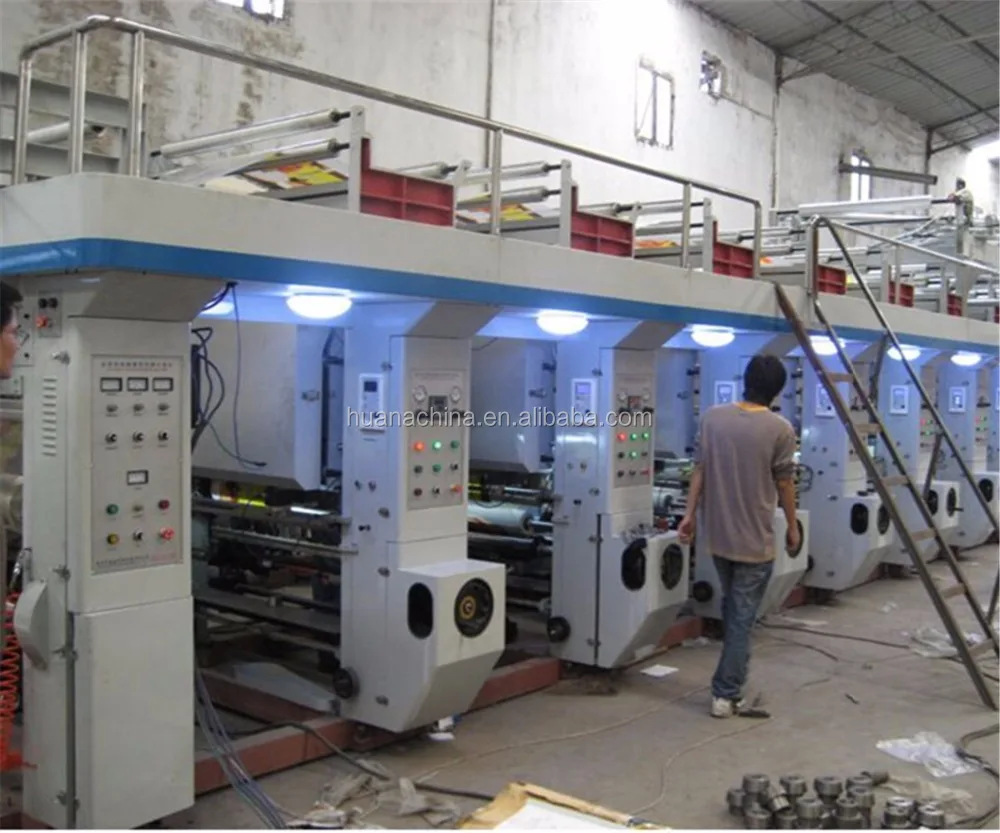

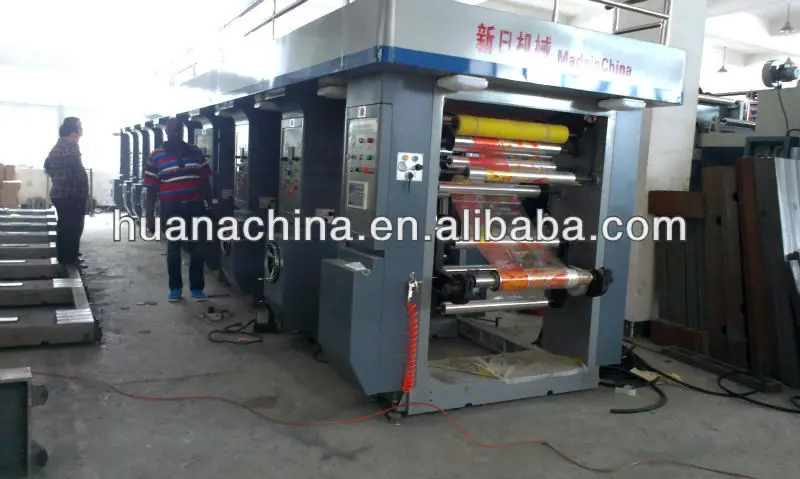

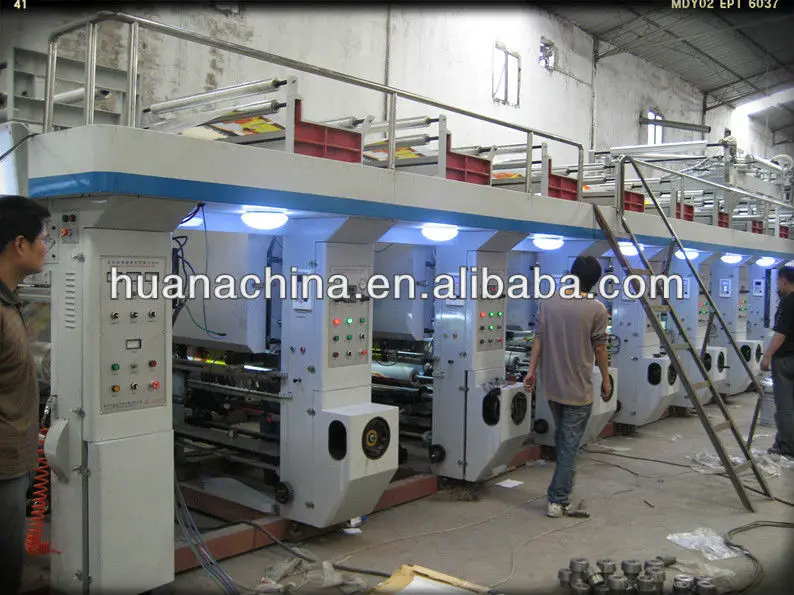

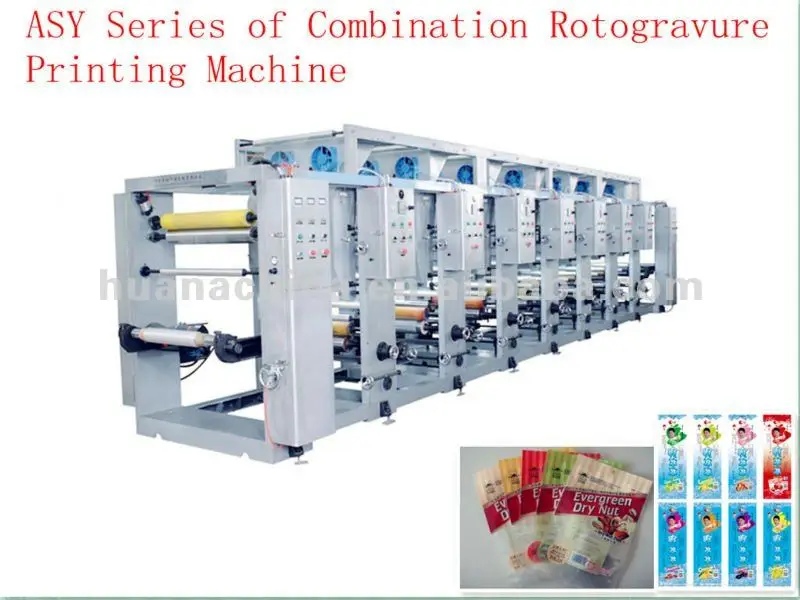

ASY model full automatic high speed rotogravure printing machine
1. Flow direction: From unwinder to rewinder unit
2. Width of the material: 390-1200mm
3. Diameter of the plate roll:110mm-300mm
4. Width of the plate roll: 400mm-1130mm
5. Max. Diameter of unwinding: 600mm, adopts winding overturn mode by double electromotion
6. Max Diameter of winding :800mm,adops unwinding overturn mode by double electromotion
7. Printing speed:0-200m/min(according to the different materias)
8. Landscape orientation chromatography precision: ≤0.15 mm,
Lengthways chromatograpy precision : ≤0.15 mm
Kinds of web | Plastic film,Paper |
Mechanical speed | 170m/min |
Max.printing width | 800mm,1000mm,1200mm,1400mm |
Plate cylimder diameter | Φ120-300mm |
Max.unwind/rewind/diameter | Φ600,Φ800 |
1. The main motor control, three section constant tension control
2. Shaftless and pnoumatic type lock-up. high-precision gear box transmission.
3. Double-cylinder heavy type scraper device.
4. Internal double working position turn over, high speed printing and automatic material feeding.
5. High efficiency thermal cycling wind, dryer heating, electric and steam etc.
6. Domestic brand vertical automatic register, static sreen display.
