MCP DKB 01 KELVIN BRIDGE

Product Overview

Description

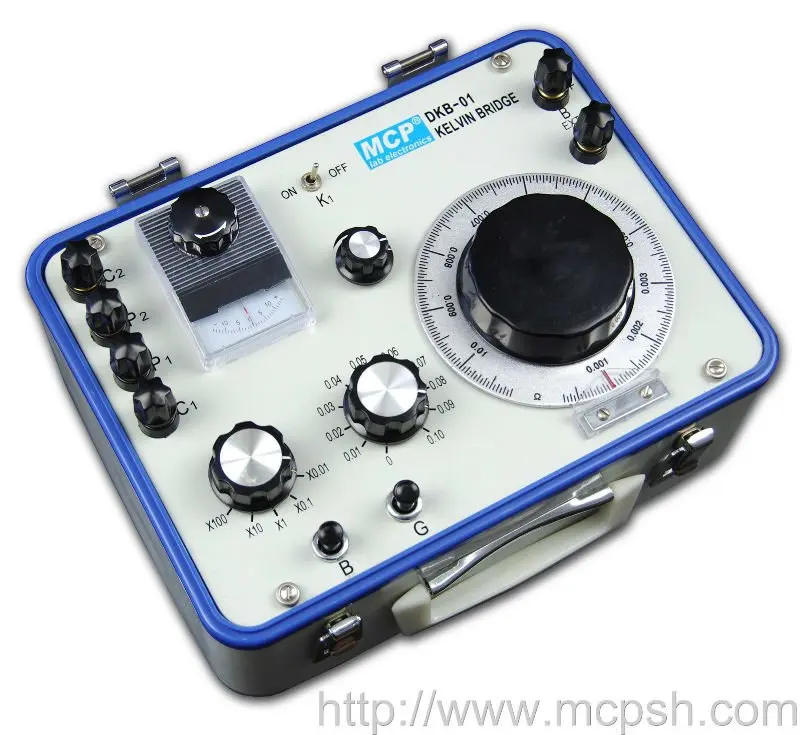

DKB-01 KELVIN BRIDGE



Features

.Wide measuring range 1Ωto 10MΩ
.Built in galvanometer and bridge power source
.Null measuring method
.One multiplier and four measuring arms
.Guarding and shielding with a portable metal case



Electrical characteristics:

Measuring range: 0.0001Ω to 11Ω
Measuring dials: one decade: 0.01x10
                          one linearity diad:0.001~0.01



Multiplier	Measuring range	Accuracy	Standard resistor	Bridge power source
x100	1~11Ω	0.5%	10Ω	1.5V×2
x10	0.1~1.1Ω	0.2%	1Ω
x1	0.01~0.11Ω	0.2%	0.1Ω
x0.1	0.001~0.011Ω	0.5%	0.01Ω
x0.01	0.0001~0.0011kΩ	1%	0.001Ω



Galvanometer(built-in)sensitivity: 0.6μA/div., battery: 9V 6F22
Operating temperature: 5~35°C
Humidity range: 85%max., relative
Dimensions: 285 × 140 × 215 mm
weight: 2.5kg
