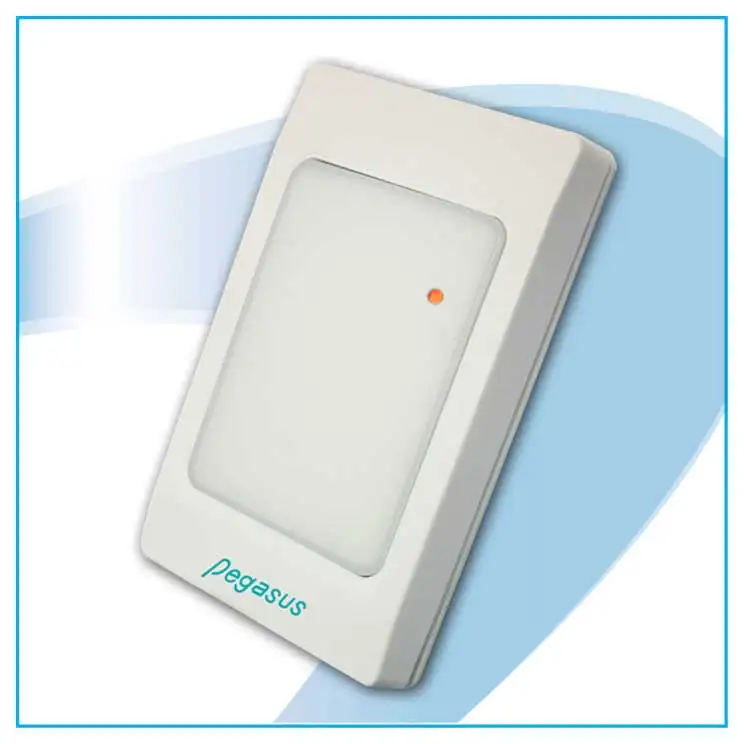

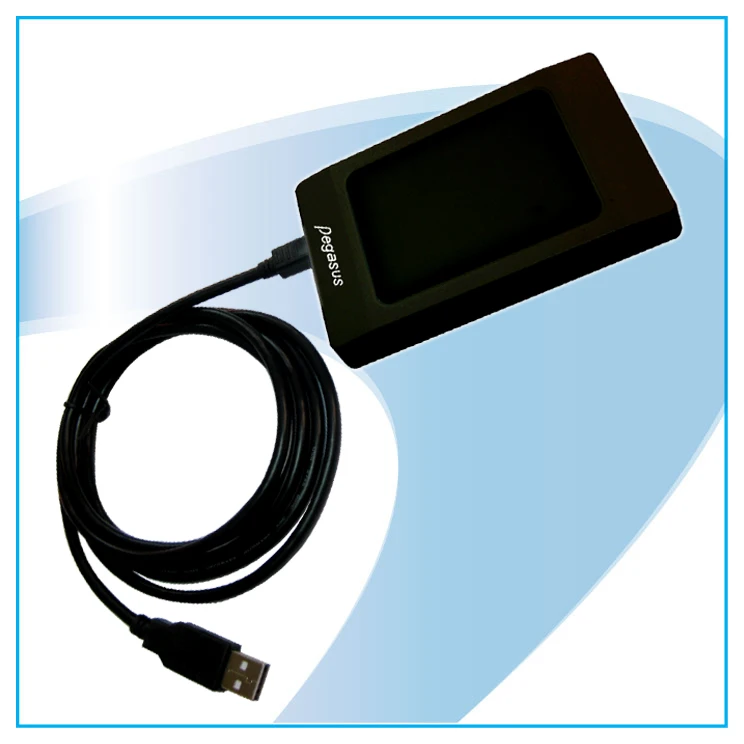

RFID Felica / MF Ultralight / DESFire / NFC card reader with USB interface

13.56MHz RFID proximity reader with USB interface

Example Applications

Product Description

This product is the RFID reader with USB interface. It can be used to read MF13.56MHz card or both 125KHz EM & 13.56MHz. It can provide easy ID filing by USB keyboard emulator without any driver (plug & play) and no request of external power supply. So it is especially applicable to various software applications which need to input card number instead of editing it manually.

Features
•Registration ID card for access control system.
•System login / logout application.
•Member system.
•POS.(Inventory management, logistics system, food and drinks industry and so on.)
•Support Android 4.0 system.
•With multi card formats output thru DIP switch selection.(ASCII ID, Decimal and Hexadecimal)


Specifications

Ordering Information For Proximity Reader

*U1 : Plug & Play, USB, keyboard emulation(without any PC driver)
*U3 : Serial port emulator thru USB interface

*M0 : Reading 13.56MHz UID (Serial No.)
*M1 : 13.56MHz sector number assigned by Pegasus for specific customer. (with proprietary key)
*M8 : Reading card number from 13.56MHz block 8 by factory defaulted key.

*M2 : For 13.56MHz read/write application (customized firmware),
*U2 : USB, Reader/Writer (with software)

*Standard RS-232 output format: <STX>000043090892<CR><LF><ETX>
*Standard RS-485 output format: <STX>000043090892<CR><LF><ETX>

We reserve the right to change the specification without prior notice or obligation!
