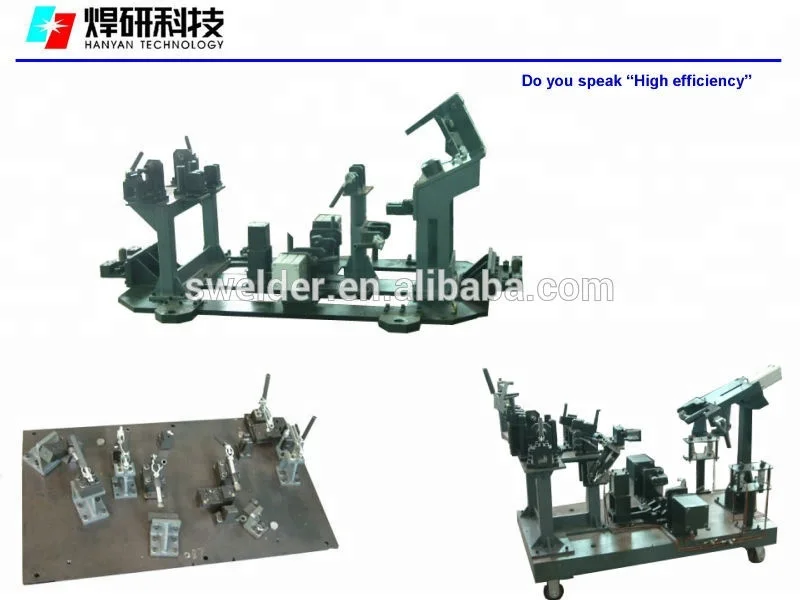

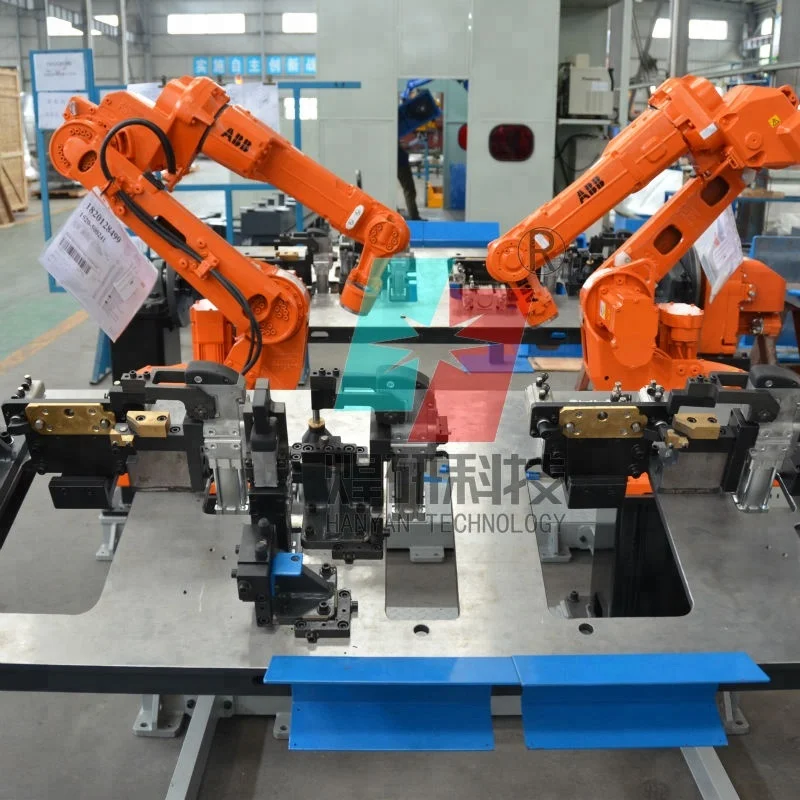

Jigs for tacking and assembly of half housing and triangle jigs

Product Overview

Description



welding Jigs for tacking and assembly of half housing and triangle



1) Tacking object: Half axle housing and triangle



2) Equipment introduction of welding jig:

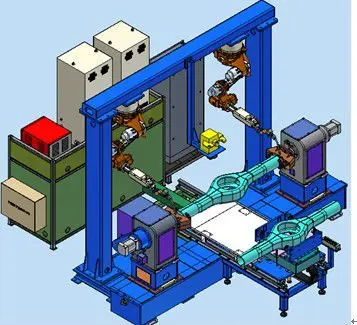

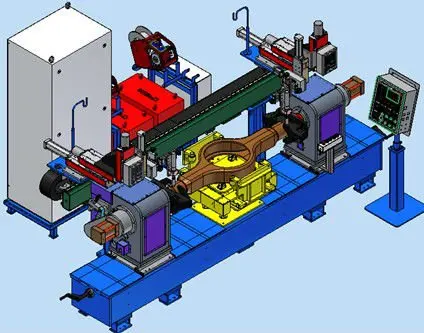

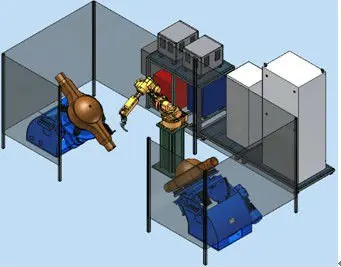

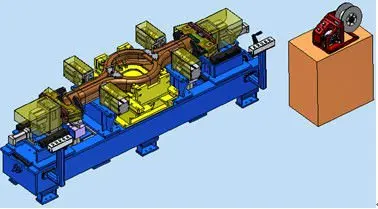

The jigs for assembly and tacking of half housing and triangle are mainly used in the assembly and tacking of rear half axle housing and triangle. The metal CO₂ gas shielded welding process is used. The half axle housing at the upper part and the lower part is placed in the tacking jigs. The self-centering mechanism is taken to position the axial direction of half housing, the axis of workpiece is positioned with self-centering clamped jigs at both sides, hydraulic puller jigs realize the press-fitting of half axle housing, and the pressure head is adjustable. Handheld triangle is equipped to support the positioning jig to position triangle. After the tacking of one side is finished, the pneumatic climbing mechanism inside the lathe bed makes workpiece climb to the high position and then rotate. After the rotation is completed, the bracket puts the workpiece back to the jig body, and then the positioning, clamping and tacking of the workpiece is carried out once again.





3) Checklist of equipment configuration:

Serial No.	Model & Specification	Quantity	Remark
1	Working table for tack	1
2	Hydraulic self-centering jig	1
3	Self-centering clamped jig at ends	2
4	Hydraulic puller jig	2
5	Climbing bracket	2
6	Manual welding machine	1	Optional
7	Hydraulic station	1



5) Major technical parameters:

Effective length of weldable workpiece	1000-1500mm
Weight of weldable workpiece	≤200Kg
Stroke of hydraulic self-centering jig	150mm
Stroke of hydraulic puller jig	50mm
Stroke of climbing bracket	300mm
Welding power supply	380V    3   50HZ 380V    3 phase    50HZ
Control power supply	220V       50HZ 220V    single phase    50HZ
