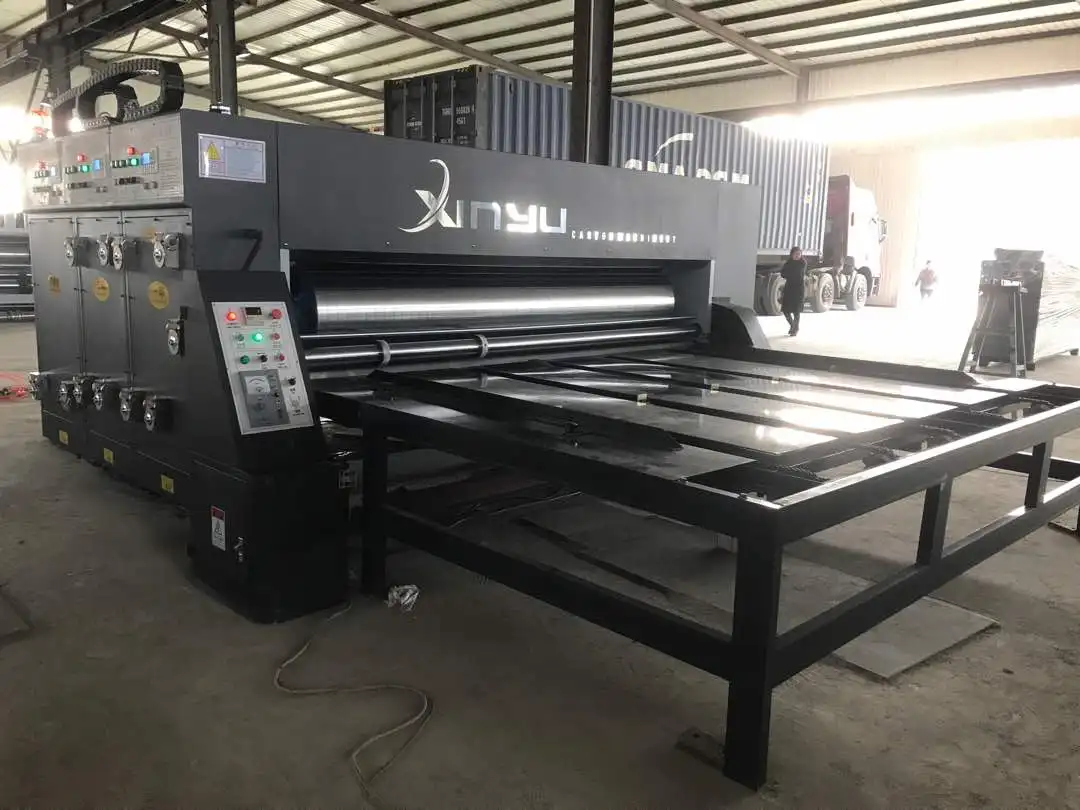

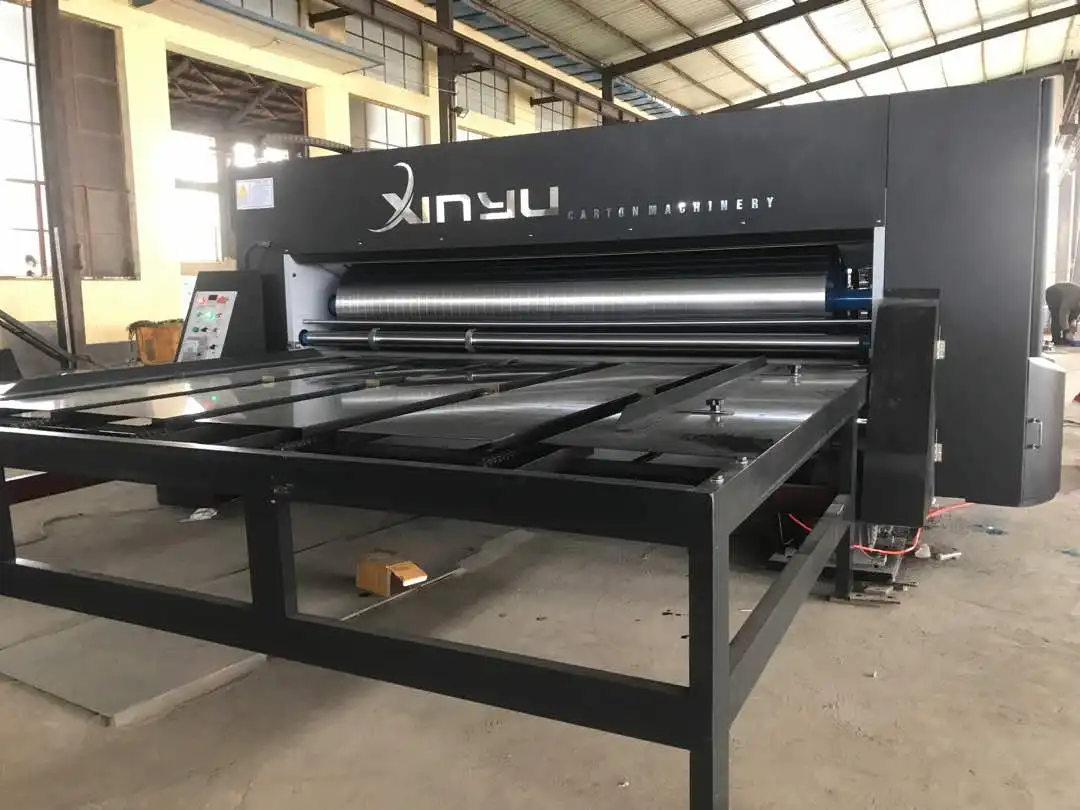

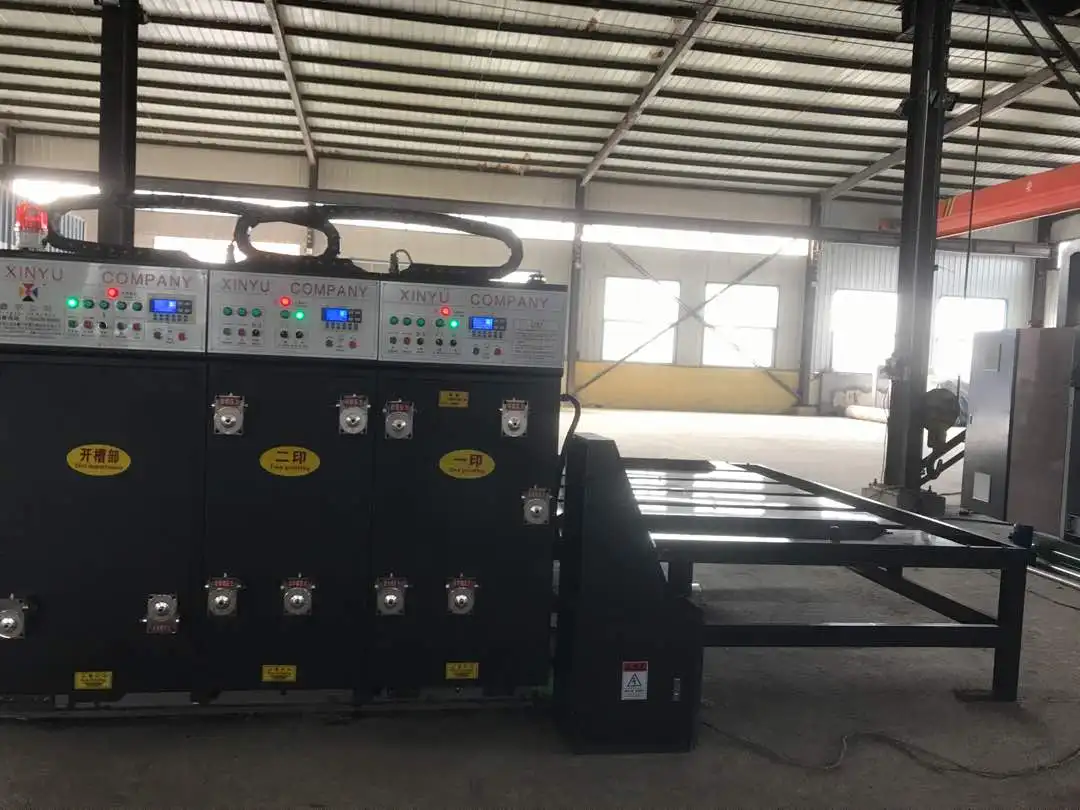

Chain feeding four colors slotting die cutting machine(1200x2600mm)
Product Description
Design speed
60(piece/min)
Economic speed
50 (piece/min)
Max Cardboard size
1200*2600mm
Min cardboard size
360*650mm
Max printing size
1200*2400mm
Max skip cardboard
1600*2600mm
Slot width*slot depth
7×400mm
Min slot distance
300*100*300*100mm
Max die cutting size
1200*2600mm
Standard plate thickness
Hanging plate7.2mm
Main motor power
5.5kw
Total power
7kw
Tinted precision
±0. 5mm
Slotting precision
±1.5mm
Die cutting precision
±1mm
Weight about
8Ton
Whole machine introduction
1, It adopts press line in ahead and slotting in behind ,it is convenient to clean scraps of paper and adjust and change fast
2, Phase adjustment electrically ,it is adjusted 360°digitally and it show on the dial ,it is adjustable when working and stop and improve working efficiency

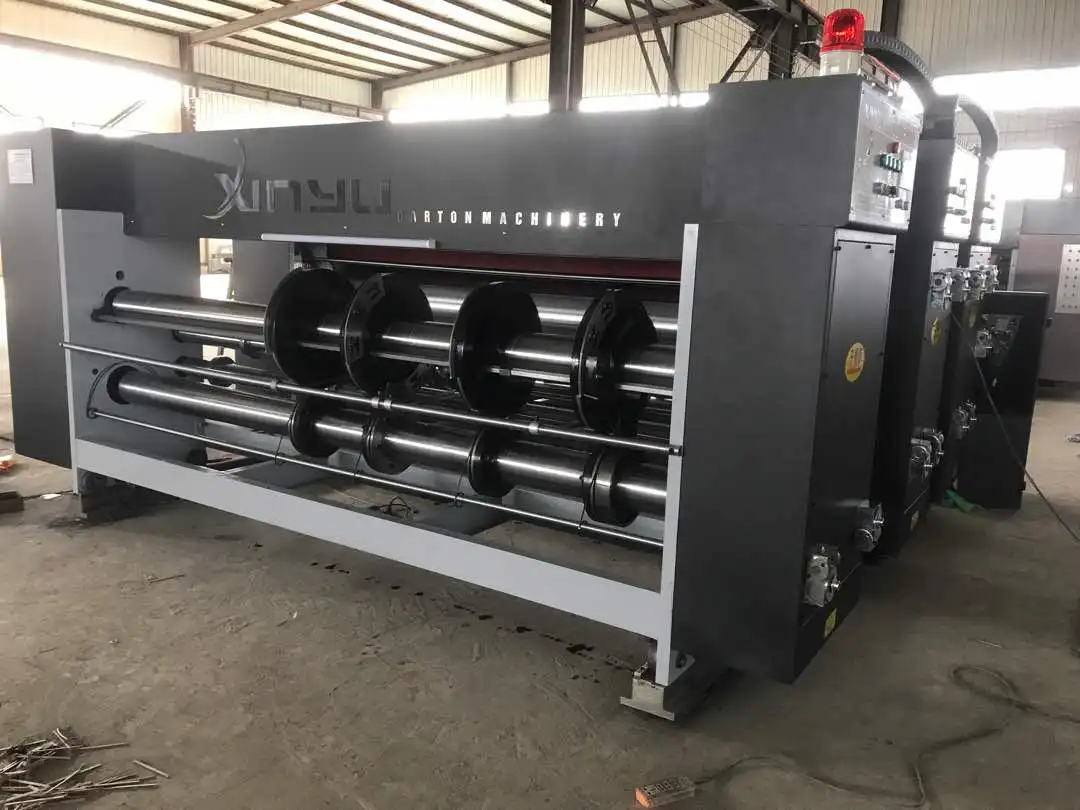

3,Slotting and cutting part:
1)The adjustment for knife seat of slotting
Before the cardboard go in knife seat , to make sure the axial distance between knife seat ,
2)Install the slotting and cutting knife.
To make the cutter head consistently , it has two knifes on the cutter head , one is fixed on sign "0" , the other to adjust axial position as to box height , the head of blade need to be opposite and towards center of cardboard
3)Install cutting knife
The knife seat is installed on the cutter head . First ,open the fixed bolt , adjust driving shaft manually , check knife installation is suitable or not , finally fixed bolt
4,Cutting and creasing part
Cutting knife and creasing module is installed on the upper and lower shaft , to make sure the distance and position as to cardboard specification and then fix knife seat and the iron wire on the module
5,Counter device automatically and can control production amount
Packaging & Shipping
Our Services
1.We need to test the machine working condition before delivery to customer country.
2.If you need our engineers install and teach you how to operate machine, we also can send our engineers to your country, but need you bear all fee: tickets, food, hotel and salary.
3.Our machine has one year warranty, during this period, if problems caused by our machine quality, we will change all parts for you by free fee. If any questions, send me email by 24 hours, we also help you solve these problems.
