China/Chinese woodworking machinery panel saw

Share on (536972514):


Price:

Quantity:


Product Overview

Description




Product Description

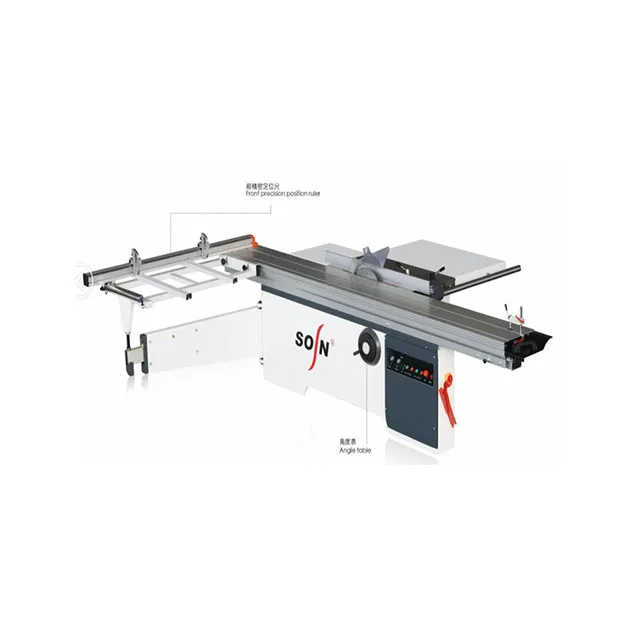

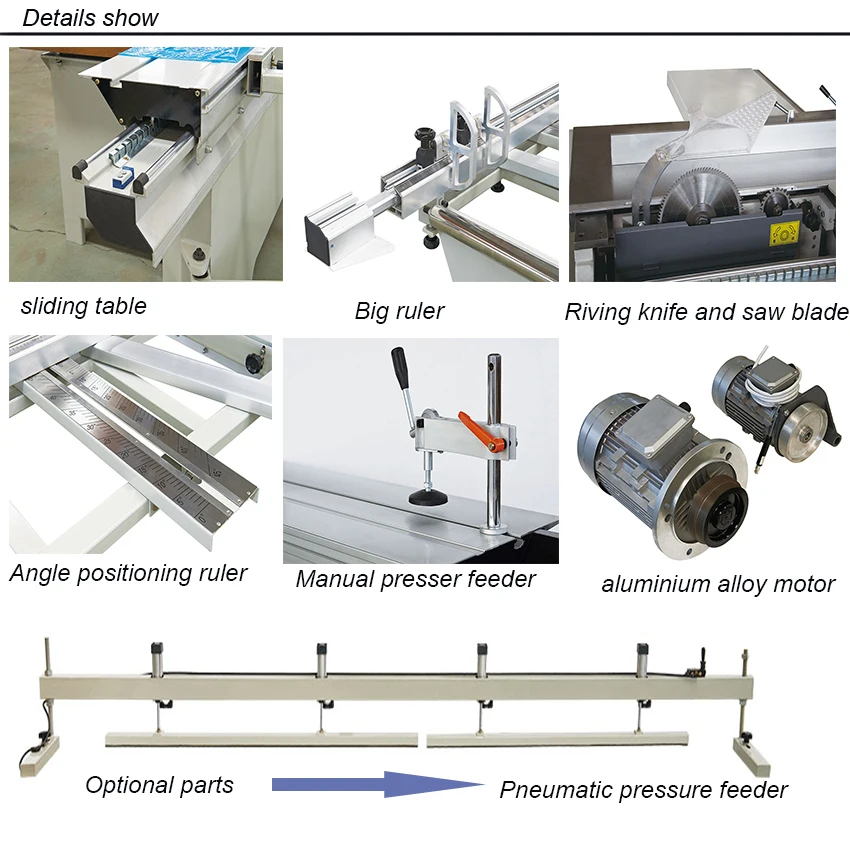

Machine details

.jpg



Technical parameter





Gross cut capacity

1600mm

Gross cut width

1250mm

Main saw blade diameter

300-400mm

Bore of main saw blade

30mm

Max height of cut

80mm

Tilting

45 tilting or90 tilting

Speed of main saw spindle

4000/6000rpm

Main spindle diameter

30mm

Main motor

220v,380v,415v, 3kw,4kw,5.5kw

Scoring saw blade diameter

120mm

Speed of scoring saw blade

8000rpm

Scoring spindle diameter

20mm

Scoring motor

1.1kw

Gross weight

800kgs

Packing size of the machine body(L*W*H)

2250*1220*1240mm

Packing size of the sliding table(L*W*H)

3150*430*260mm



Exhibition show

.jpg

Our quality

Many years manufacturing experience lead us to a mature and professional quality guarantee with best price. Professional assembly line work and strict quality test system can ensure your high quality requirement



Our services

1. After you purchased a product from SOSN, it's not the end of the business but the beginning of our service. We promise to our customers that we will provide persistent technical assistance.

2. After the machine reached you, Please check the machines to see if they are going well, if there is any question, please feel free to contact with us, and also if any problem in the later daily using, please also do not hesitate to contact with us, we will try our best to give you the solution within two working days.

3.Therefore, you don't need to worry about the after-sale maintenance. Warranty one year .if you have any questions about machine,please contact me  With a professional sale and technique group, we can assure you a considerate and professional service experience Trade processing:Actively solving problems during manufacturing and delivery, assure you a best price.



why choose SOSN

1. professional team--as much as possible to meet your needs
2. quick delivery--timely and effective
3. excellent after-sale services--no worries anymore
4. friend partner relationship--a win-win cooperation



Note

1. The price is valid for one month since the date of quotation offered
2. Delivery Time: within 25workdays after be prepaid.
3. One year warranty
4. Payment: 30% the deposit by T/T, the balance 70% before the shipment
