FTTH 47~1000MHz CATV Mini Optical Receiver (H9122)

Product Overview

Description

H9122

FTTH 47~1000MHz  CATV Mini Optical Receiver

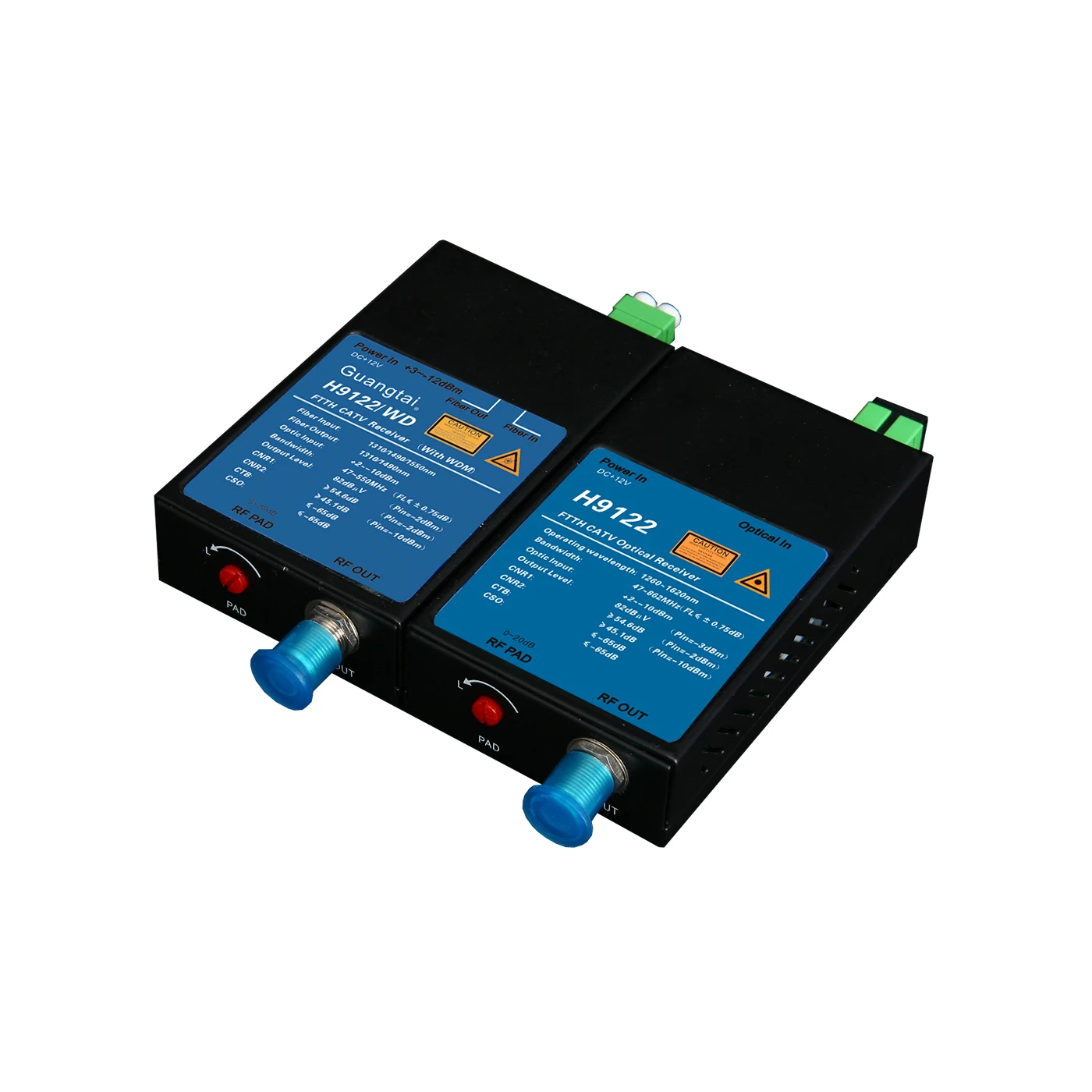

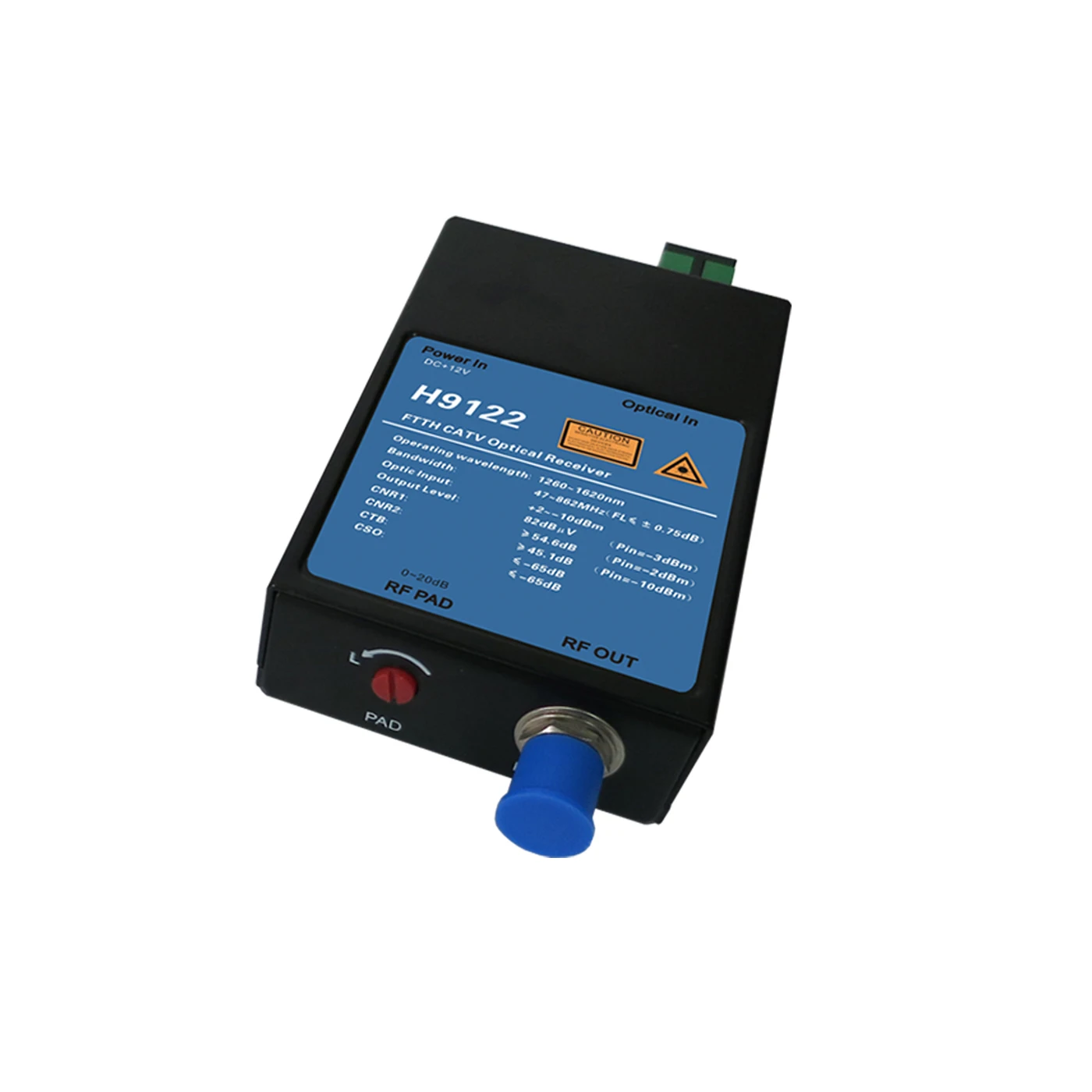

Huatai H9122  catv mini optical receiver series, 47~1000MHz operate bandwidth, output level Vo=82dBμV (Pin=-2dBm), suitable for FTTH optical fiber access network, which is a low power consumption, high performance, and excellent cost performance RFTV broadcast network ONU(Optical network unit).



This series product adopts high sensitivity receiving tube and Huatai special low noise matching circuit. Under 3.8% modulation, when transmitting in full channels and with receiving power of -10dBm, the CNR can still reach high index of 45dB. Therefore, if adopting H9122, it is only need very low optical power to reach 45dB CNR required by the user.



1. Extra-low noise(3.8% modulate, -10dBm receive, CNR ≥ 45dB)


2. All receiving optical power in the range of +3dBm to -12dBm has good linearity


3. In the range of 47~862MHz, all have good flatness (FL ≤± 1.0dB)


4. Metal shell, supply safeguards to opto-electrical sensing device


5. High output level can supply for many users


6. Low power consumption, high cost performance



• FTTH


• FTTP, FTTO



Performance			Index	Supplement
Optic feature	CATV work wavelength	(nm)	1260~1620	H9122 ( A -Type )
			1540~1563	H9122/WF,H9122/WD ( A & B & C Type )
	Pass wavelength	(nm)	1310, 1490	H9122/WD ( B & C Type )
	Channel Isolation	(dB)	≥40	1550 &1490nm
	Responsibility	(A/W)	≥0.85	1310nm
			≥0.9	1550nm
	Receiving power	(dBm)	+2 ~ -10	Analog TV (CNR>45dB)
			+2 ~ -20	Digital TV (MER>29dB)
	Optical return loss	(dB)	≥55
	Optical fiber connector		SC/APC	H9122, H9122/WF
			LC/APC	H9122/WD
RF feature	Work bandwidth	(MHz)	45 ~ 1000
	Flatness	(dB)	≤±0.75	45 ~ 1000MHz
	Output level	(dBμV)	>82	Analog TV (Pin=-3dBm)
			>82	Digital TV (Pin=-5dBm)
	Output level adjust	(dB)	0 ~ 18	MGC
	Return loss	(dB)	≥14	47 ~ 862MHz
	Output impedance	(Ω)	75
	Output port number		1
	RF tie-in		F-Female	F-male optional
Analog TV Link feature	Test channel	CH	59CH(PAL-D)	NTSS/80CH
	OMI	(%)	3.8
	CNR1	(dB)	54.6	Pin=-2dBm
	CNR2	(dB)	45	Pin=-10dBm
	CTB	(dB)	≤-65	Pin:0~-10dBm
	CSO	(dB)	≤-65	Pin:0~-10dBm
Digital TV Link feature	OMI	(%)	4.3	Pin : +2.0~-13.0dBm
	MER	(dB)	≥36	Pin = -15.0dBm
			≥30	Pin = -19.0dBm
	BER	(dB)	<1.0E-9	Pin :+2.0 ~-20dBm
General feature	Power supply	(V)	DC+12V	±1.0V
	Power Consume	(W)	≤3	+12VDC, 210mA
	Work temp	(℃)	-20 ~ +55
	Storage temp	(℃)	-40 ~ 85
	Work relative temp	(%)	5 ~ 95
	Size	(mm)	38×80×20	A -Type
			50×88×22	B -Type
			59.5×98×24	C -Type
