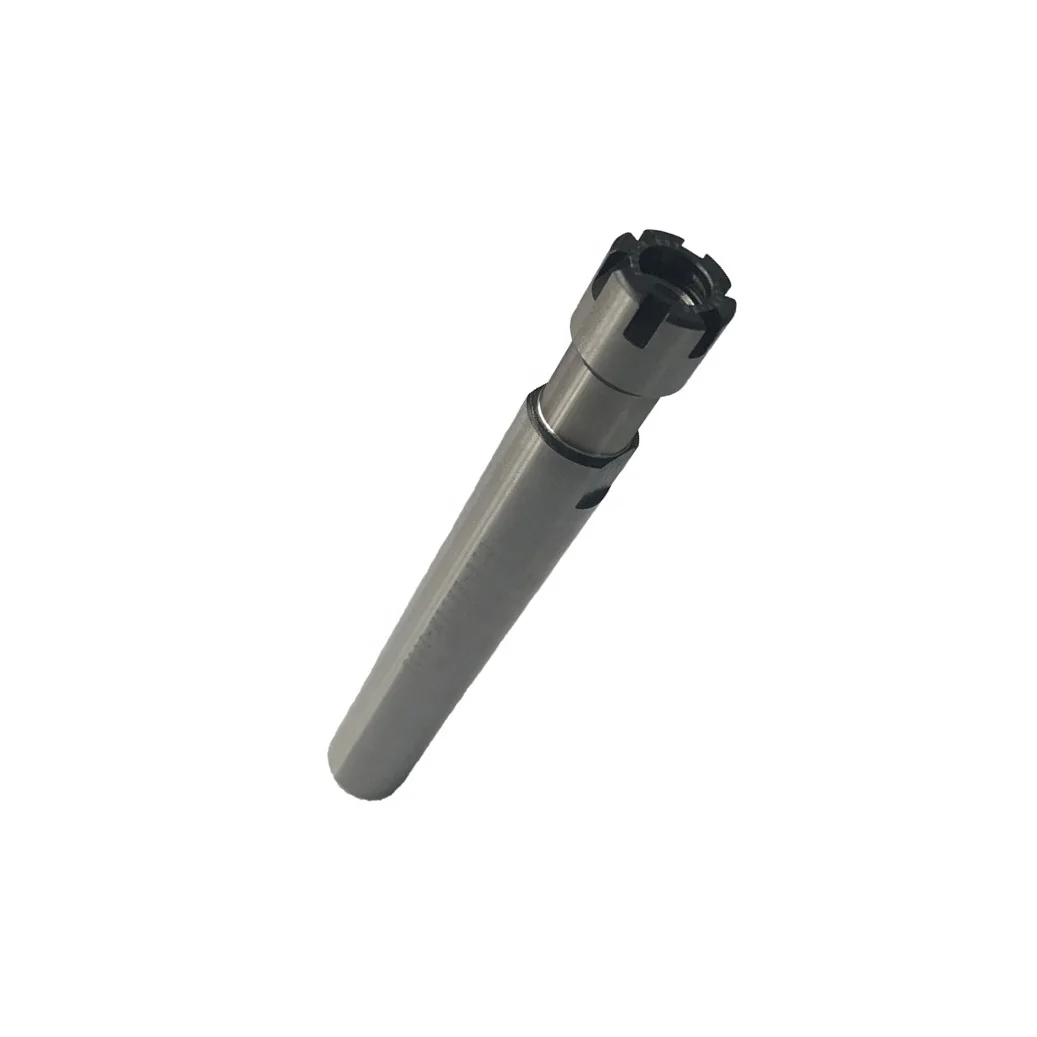

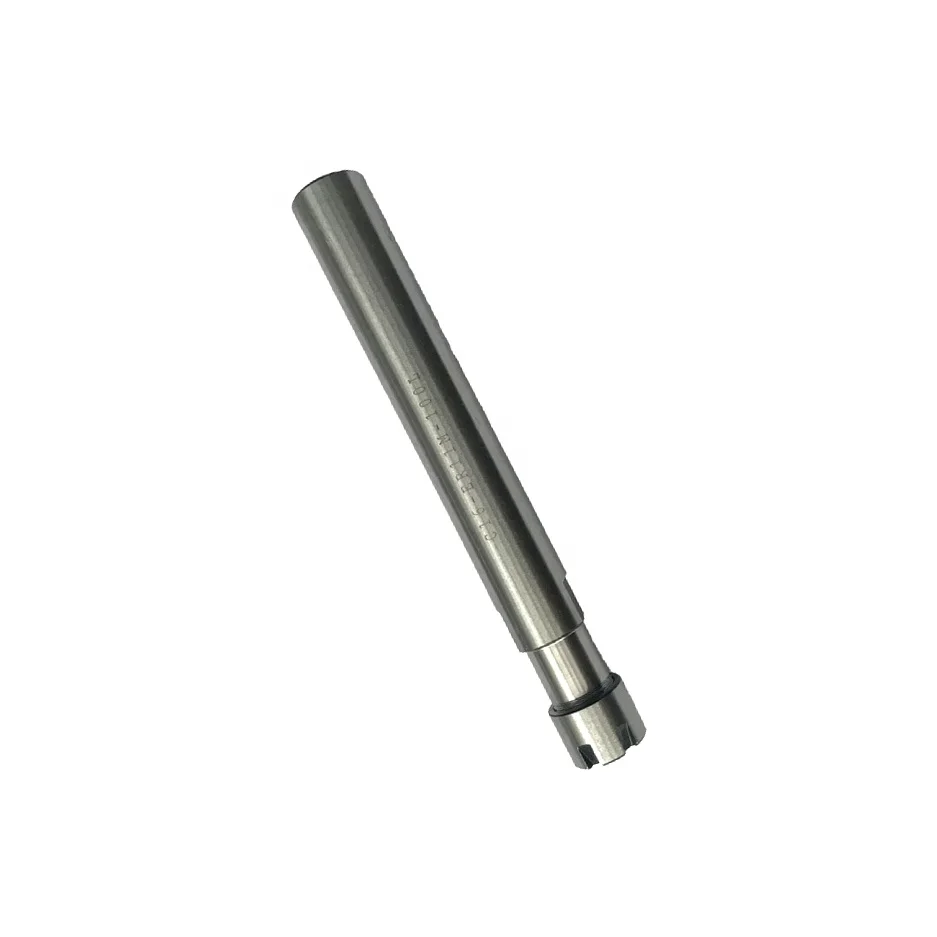

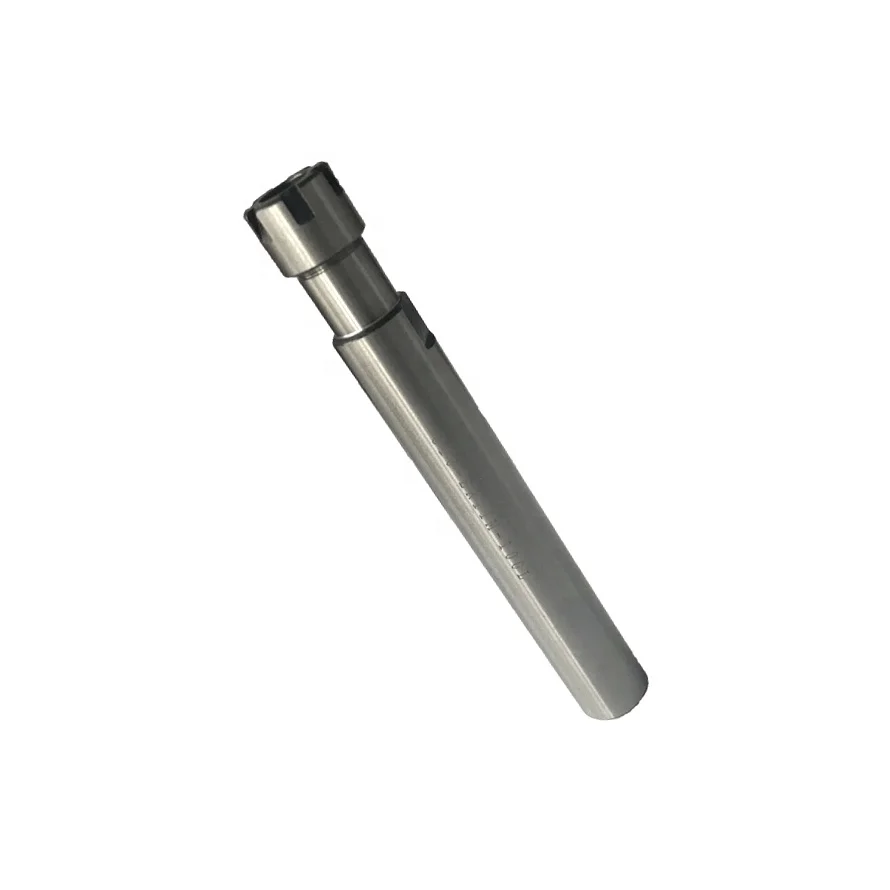

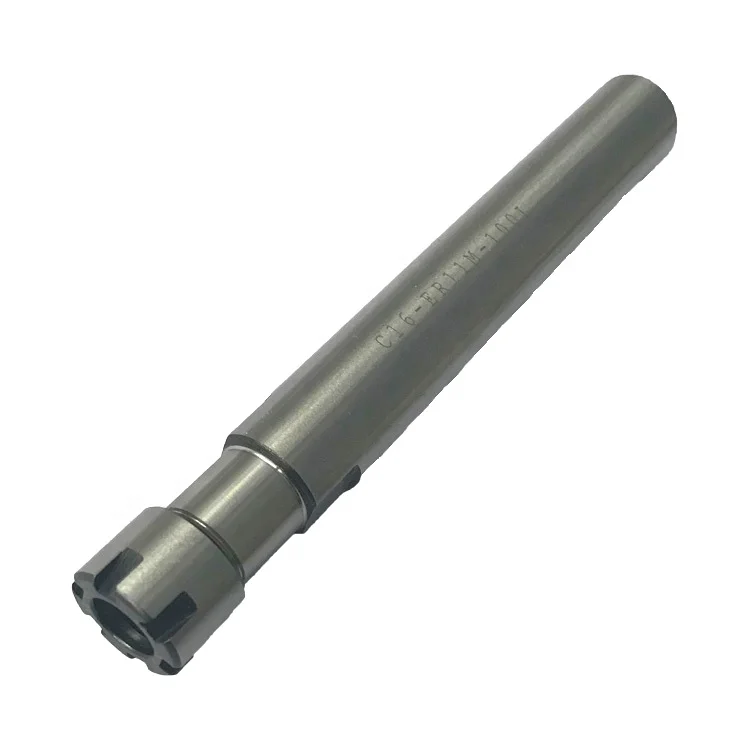

cylindrical straight shank collet chuck with mini nut,hex nut,UM nut
- Category: >>>
- Supplier: Dezhou Zhongyi Industry And Commerce Co. Ltd.
Share on (537314023):
Product Overview
Description
straight shank cylindrical collet chuck with mini nut
| model no. | L | l2 | l3 | dD | t1 |
| C8xER8M-55 | 79 | 24 | 6 | 12 | M4x0.7 |
| C10xER8M-100 | 117 | 17 | 6 | 12 | M4x0.7 |
| C10xER8M-150 | 167 | 17 | 6 | 12 | M4x0.7 |
| C10xER8M-180 | 197 | 17 | 6 | 12 | M4x0.7 |
| C12xER8M-55 | 72 | 17 | 6 | 12 | M4x0.7 |
| C12xER8M-120 | 137 | 17 | 6 | 12 | M4x0.7 |
| C12xER8M-180 | 197 | 26.5 | 6 | 12 | M4x0.7 |
| C12xER11M-80 | 96.6 | 16.6 | 6.6 | 16 | M5x0.8 |
| C16xER11M-50 | 66.6 | 16.6 | 6.6 | 16 | M5x0.8 |
| C16xER11M-100 | 116.6 | 16.6 | 6.6 | 16 | M5x0.8 |
| C16xER11M-140 | 156.6 | 16.6 | 6.6 | 16 | M5x0.8 |
| C16xER16M-80 | 117 | 25 | 10.6 | 22 | M10x1.5 |
| C20xER16M-100 | 125 | 25 | 10.6 | 22 | M10x1.5 |
| C20xER16M-140 | 165 | 25 | 10.6 | 22 | M10x1.5 |
| C20xER16M-160 | 185 | 25 | 10.6 | 22 | M10x1.5 |
| C20xER20M-60 | 100 | 40 | 11.5 | 28 | M12x1.75 |
| C20xER20M-100 | 140 | 40 | 11.5 | 28 | M12x1.75 |
| C20xER20M-120 | 160 | 40 | 11.5 | 28 | M12x1.75 |
| C20xER20M-150 | 190 | 40 | 11.5 | 28 | M12x1.75 |
| C20xER20M-180 | 220 | 40 | 11.5 | 28 | M12x1.75 |
| C20xER20M-140 | 168 | 28 | 11.5 | 28 | M12x1.75 |
| C20xER25M-100 | 150 | 50 | 12 | 35 | M12x1.75 |

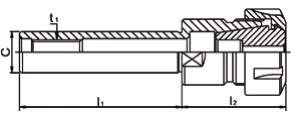

straight shank cylindrical collet chuck with hex nut and UM nut:
| model no. | L | l2 | t1 | Weight(kg) |
| C16xER11A-140 | 156.5 | 16.6 | M6x1.0 | 0.23 |
| C16xER16A-50 | 90 | 40 | M10x1.5 | 0.15 |
| C16xER16A-100 | 140 | 0.20 | ||
| C16xER16A-150 | 190 | 0.28 | ||
| C20xER16A-50 | 90 | M12x1.75 | 0.25 | |
| C20xER16A-100 | 140 | 0.35 | ||
| C20xER16A-150 | 190 | 0.40 | ||
| C20xER20A-60 | 100.5 | 40.5 | 0.35 | |
| C20xER20A-120 | 160.5 | 0.40 | ||
| C20xER20A-140 | 175.1 | 0.50 | ||
| C20xER25-50 | 101 | 51 | 0.40 | |
| C20xER25-100 | 151 | 0.45 | ||
| C20xER32-50 | 101.5 | 51.5 | M10x1.5 | 0.42 |
| C20xER32-100 | 151.5 | 0.55 | ||
| C25xER16A-150 | 185.1 | 35.1 | 0.45 | |
| C25xER20A-140 | 175.1 | 40.5 | M12x1.75 | 0.55 |
| C25xER25-50 | 101 | 51 | M16x2.0 | 0.40 |
| C25xER25-100 | 151 | 0.55 | ||
| C25xER32-50 | 101.5 | 51.5 | 0.60 | |
| C25xER40-50 | 115 | 65 | 2.10 | |
| C32xER32-60 | 111.5 | 51.5 | 1.15 | |
| C32xER32-100 | 151.5 | 0.80 | ||
| C32xER40-50 | 115 | 65 | 2.23 |
