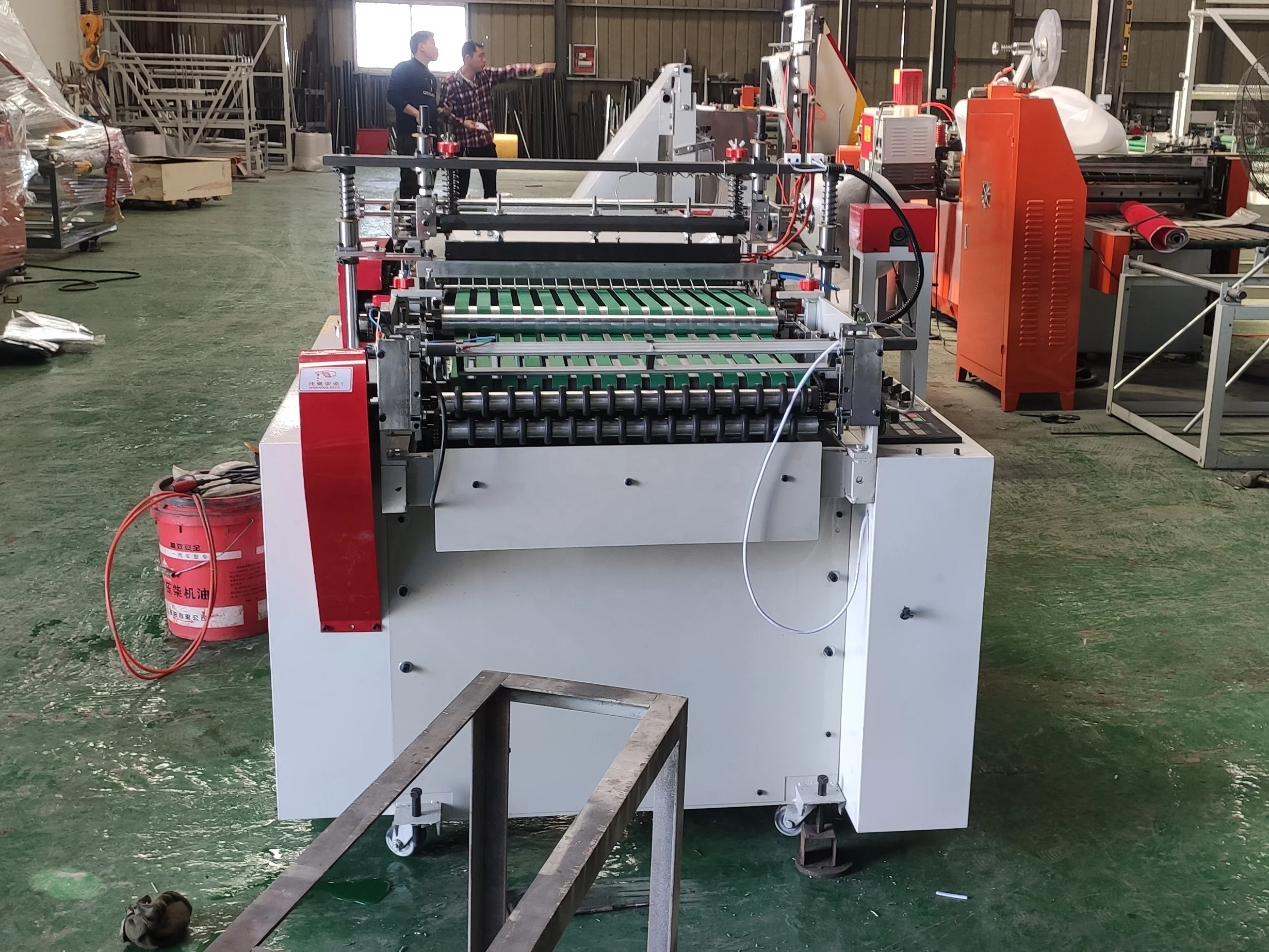

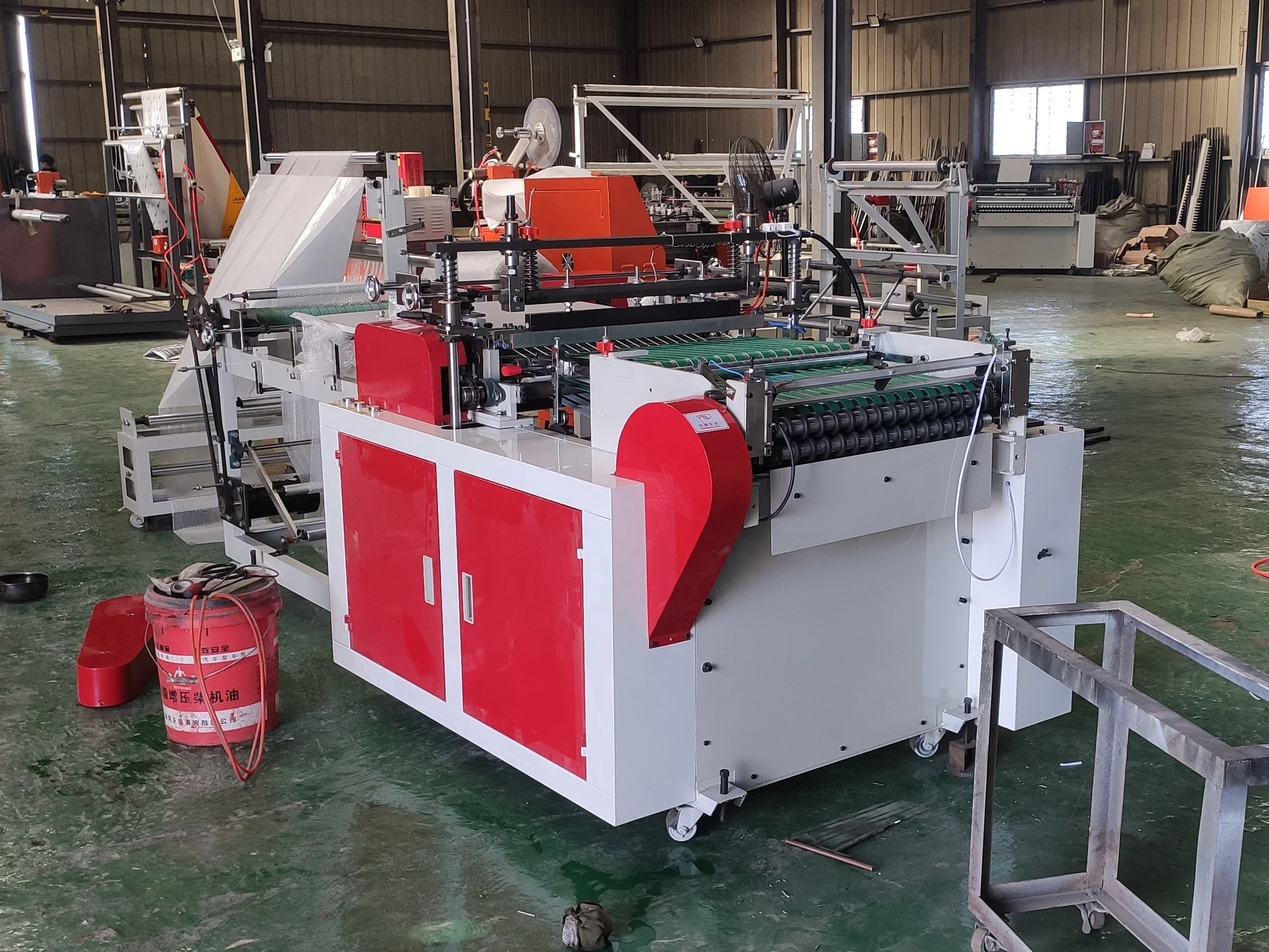

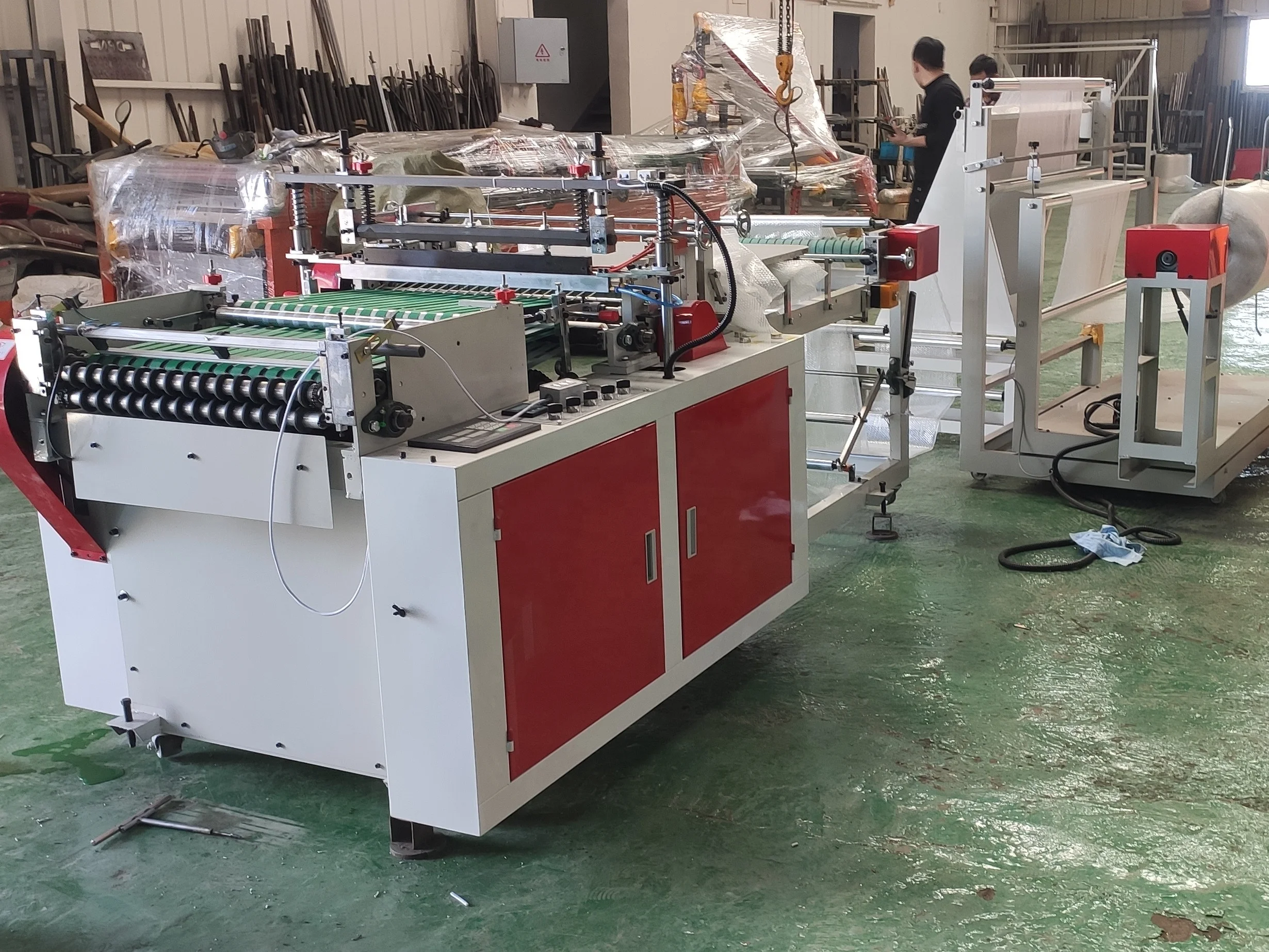

Automatic high speed air bubble bag making machine

Product Overview

Description

Plastic air bubble bag machine



PROFILE

It is used for making bubble film and EPE foam to bags, which kind of bags are widely used for protect products.It is widely used for protect cellphones, watches, computer monitors, and many kinds of electric products. etc.



FEATURE
the whole machine is microcomputer control, the material is taken by the stepper motor (optional: servo motor control system).
computer set the length and speed, it's accurate and smooth.
automatic bag quantity counting, It will alarm when reach to the seted quantity and can be seted to stop the machine in specific quantity.
from the bubble sheet and EPE foam to form the bag at once, reducing space, processes, labor and other costs.
Easy to use, flexible speed adjustment, smooth running, can make making kinds style bags



PARAMETER

Model	QP-600	QP-800	QP-1000	QP-1200	QP-1500	QP-2000
Bubble film roll width	1200mm	1600mm	2000mm	2400mm	1500mmx2	2000mmx2
Bubble film roll diameter	1000mm	1000mm	1000mm	1000mm	1000mm	1000mm
Max. Bag making length	600mm	800mm	1000mm	1200mm	1500mm	2000mm
Max. Bag making width	1500mm	1500mm	1500mm	1500mm	1500mm	1500mm
Capacity	20-180pcs/min	20-180pcs/min	20-180pcs/min	20-180pcs/min	20-180pcs/min	20-180pcs/min
Total Power (KW)	2.8	3.2	3.6	4.0	4.4	5.0
Weight (T)	1.0	1.2	1.4	1.6	1.8	2.0
