ABS/PS/PP/PVC vertical plastic granules mixer; plastic blending machine

Product Overview

Description

Why you can choose Qi Zheng Mixing Machine?

1.with 8 years specializing in producing plastic mixing machines

2.strong enterprise innovation,with groups of professional engineers and salesmen

3.our quantity and quality but low price have gained huge market and public praise from clients

4.we have very faultless after-sales service

5.we have no MOQ for clients and tailor-made to clients' request



The mixing machine features:

a, the mixing machine is of framework design, solid and durable.
b, the mixing machine propeller is wholly processed after welding, with high concentricity and steedy operation.
c, the mixing machine tank can be completely stirred by swirl type which makes a shorter mixing time.
d, the mixing machine adopts stainless steel ensure a easy cleaning and rustlessness.
e,the mixing machine is suitable for all kinds of plastic raw material and colors, widely usede for plastic industry.

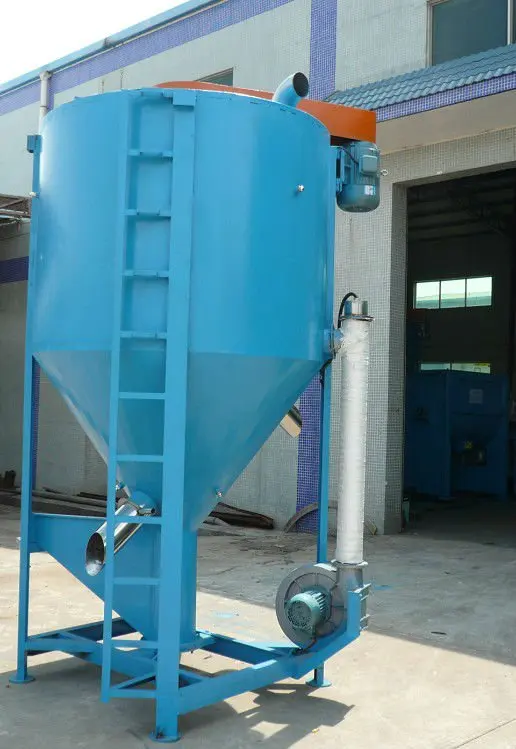

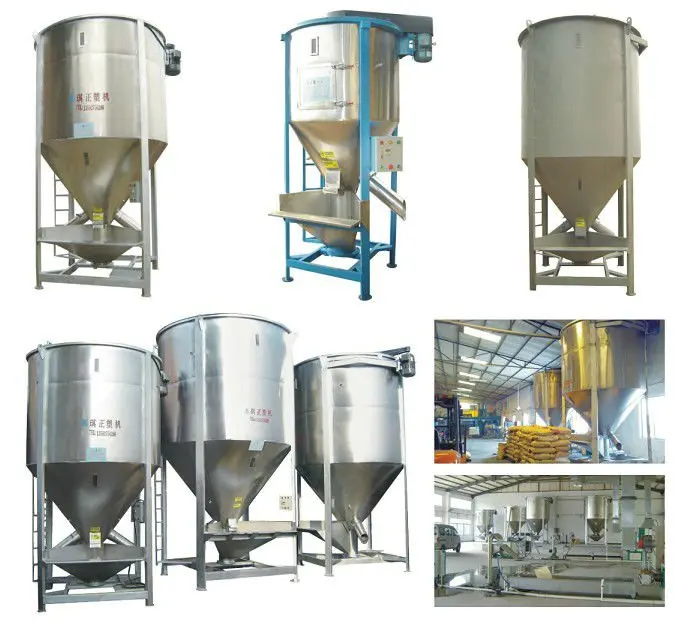

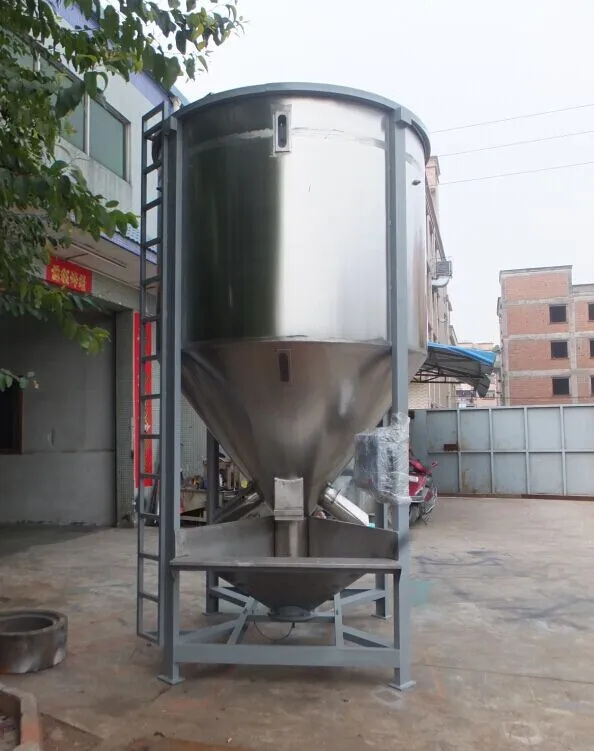

The mixing machine photos:

Model	Power		Rotating Speed(R/MIN)	Capacity(kg)	Dimensions(MM)
QZ-L500	4HP	4KW	350	500	1200*2500
QZ-L1000	4HP	4KW	350	1000	1500*2750
QZ-L1500	4HP	5.5KW	350	1500	1650*3300
QZ-L2000	4HP	5.5KW	350	2000	1850*3300
QZ-L3000	4HP	7.5KW	350	3000	2000*3750
QZ-L5000	6HP	7.5KW	350	5000	2400*4350
QZ-L7500	6HP	11KW	300	7500	2600*5100
QZ-L8000	6HP	11KW	300	8000	2750*5100
QZ-L10000	6HP	11KW	300	10000	3000*5300
QZ-L12000	6HP	15KW	300	12000	3100*5850
QZ-L15000	6HP	15KW	300	15000	3100*6500
