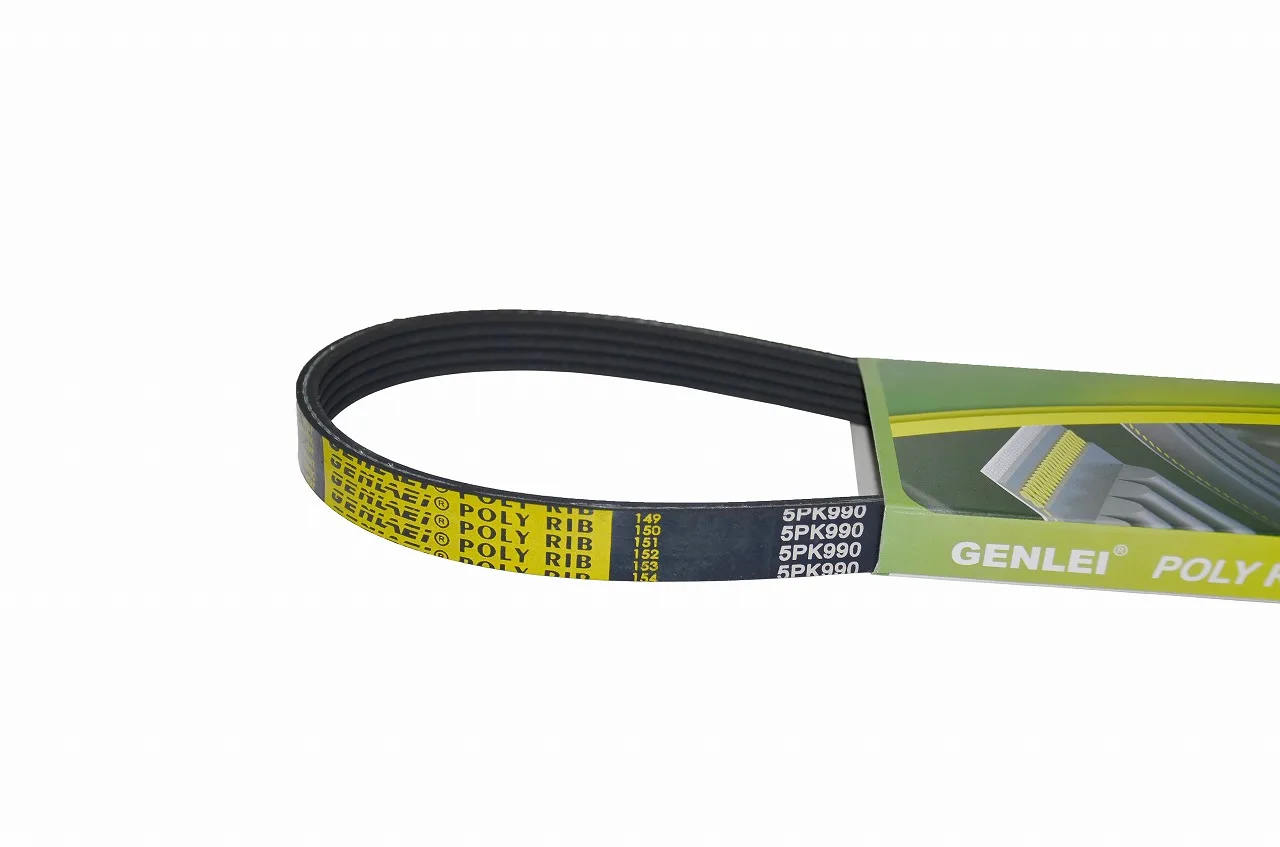

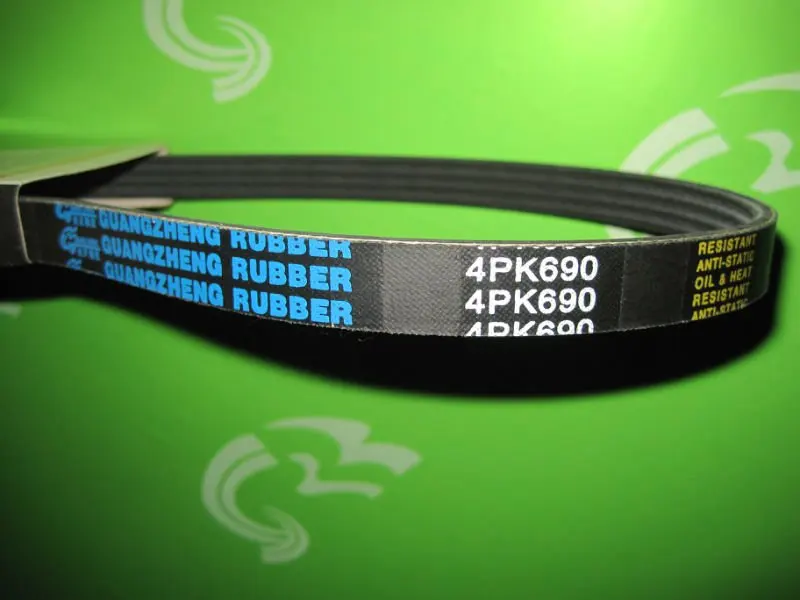

3PK 4PK 5PK 6PK 7PK 8PK 9PK 10PK 20PK Poly Ribbed v belt

Product Overview

Description

Characteristics: With the function of both v-belts and flat belts, poly-rib belt has soft and tough property as flat belt and tight and effective

                                   property as V belt.

                                      1.High transmission power, at the same condition, transmission power is 30% higher than common v-belt.

                              2.Structure  of transmission system is compact, at the same transmission power, it occupies 25% smaller than common v-belt.

                              3.Flat and soft belt is suitable for not only transmission of small pulley but also high-speed transmission with speed of 40m/s;

                                 besides, its characters as slightvibration, few heat diverge and steady working.

                              4.Anti-heat, anti-oil, anti-wearing out, few elongation and long life.





auto pk belt With the function of both v-belts and flat belts, ribbed v-belt has soft and tough
property as flat belt and tight and effective property as V belt.



ribbed v-belt r cutting edge belts that allow a great reduction of the space required by the trasmission system, smaller pulleys and high speed uniform weight distribution in the belts width.



Type	Rib Section	Thickness	Rib numbers	Angle of rib	Length Range
PH	1.6	3	3-54	40	540-1270
PJ	2.34	4	3-36	40	615-2500
PK	3.56	4-6	3-25	40	600-2665
PL	4.7	10	3-16	40	900-3000
PM	9.4	17	3-8	40	1500-3000







Place of Origin: China
