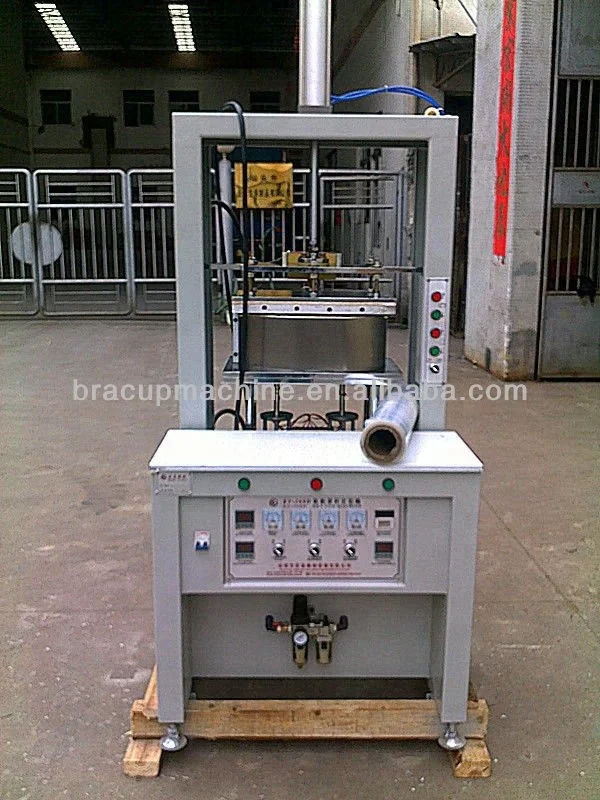

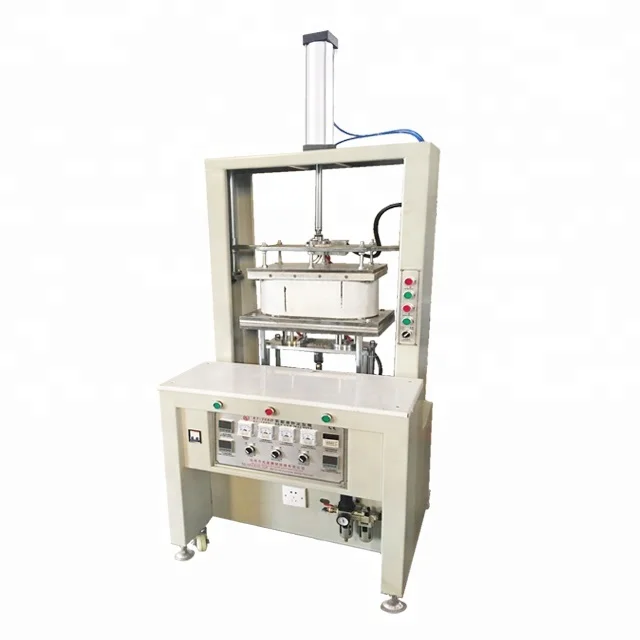

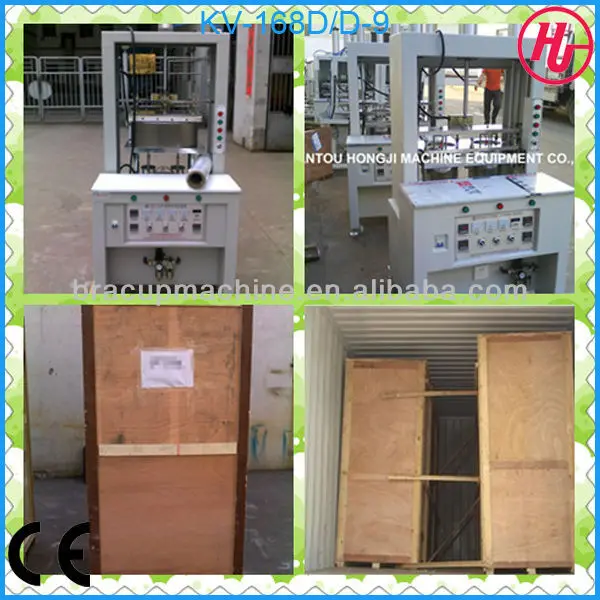

KV 168D/D 9 High Quality Hot Sale Bra Fabric Cup Molding Machine

Product Overview

Description

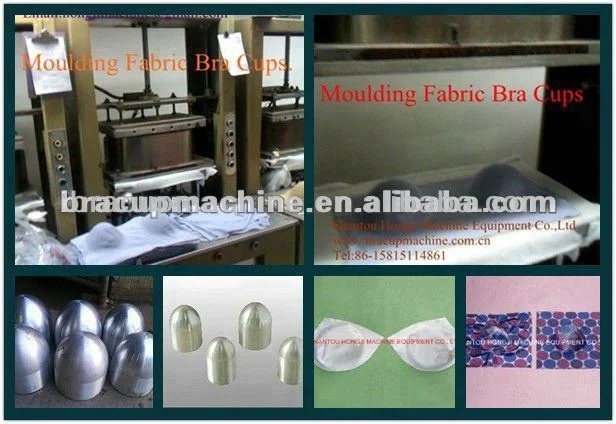

Usage of machine: It is able to mold rigid fabric cup ( non stretch fabric ) and also elastic fabric cup and space fabric etc. As it uses conical shaped moulds with adjustable molding depth, so it can mold elastic fabric to get suitable cup shape for matching the foam cup shape for stitching & sewing them together.



Merits: Machine equipped with air cylinder pressing plates and convinient to control fabric tension and reduce and avoid fabric pulling while molding.



Capacity:Machine is able to load one set of bullet head aluminum mold with 2 cavities, which can produce 1 pair of fabric cup per cycle within molding time 35 to 45 seconds.



Technical parameter:

power supply / power	220V/4.4KW
specification of heating tube	Φ12×250mm×500W-220V; Φ 16×150mm×700W-220V
size of molding table	700mm×330mm
size of the machine	1000mm×670mm×2100mm
max. diameter of mould	180mm
applicable materials	fabric materials
applicable moulds	bullet head moulds
weight	650KGs

We are the 1st professional manufacturer & supplier of underwear machinery in Shantou, China Mainland.  Besides, we also have own bra cup factories located in Xiamen City and Dong Guan City. We can supply 400~500 sets of machinery monthly, and 1.5~2.0 million pairs of bra cups/ bra pads in each factory.





1.  MOQ: 1 set



2.  OEM & ODM can be acceptable.



3.  We own all the original R & D Technology and Proficient Experience in this field over 13 years.



4.  All the Moulds can be customized according to your supplied samples.

     CNC Made or Manual Made to be Optical.



5.  The Molding Table Size can be bigger customized if required.



6.  The Molding time and temperature can be preset and adjusted freely through the timers and temperature controllers when we mold / press different materials.



7.  All the digital meters are easy to operate.



8.  All the spare parts can be matched to supply.



9.  All the electric fittings and pneumatic parts used in our machinery are with high-quality.



10. All the raw materials (machine frame, machine fittings and etc) are processed by our own factory.



11. We guarantee there is absolutely without jerry-built.



12. Good & Timely After-Sale Services.



If above details are still not clear for you, kindly please contact me without delay!

Looking forward to cooperating with you for long term!
