Mineral powder auger feeding double roller hydraulic compacting camphor ball briquette machine
- Category: >>>
- Supplier: Changzhou Shengong Granulation Equipment Co. Ltd.
Share on (538501287):
Product Overview
Description
Camphor balls
Briquette machine applications:
1.fertilizer:
2.powder material
zinc oxide, lead oxide, calcium chloride, calcium phosphate, High test bleaching powder, cryolite, chemical inhibitor, silica, Isophthalodinitrile etc.
3.chemical raw material, fine chemical material
We are small factory but dedicated in roller compactor for granulating & briquetting powders
Briquette machine operating principle:
Difference of type A and B
Briquette machine technical parameter:takes FGD gypsum for instance, final pellets are oval ball.
Type Item | SG-360B | SG-500B | SG-600B | SG-650B |
Roller dia. (mm) | Φ360 | Φ504 | Φ600 | 650 |
Effective width (mm) | 180 | 300 | 310 | 330 |
Roller rotating speed (r/min) | 16 to 22 | 14 to 20 | 12 to 18 | 10 to 16 |
Power of feeder (kw) | 7.5 | 11 | 11 | 15 |
Pre-pressure of accumulator (Mpa) | 5 to 6 | 6 to 10 | 8 to 10 | 8 to 12 |
Max. pressure rate (kn/cm) | 55 | 55 | 55 | 55 |
Briquette's size and shape(mm) | 40mm | 40mm | 40mm | 40mm |
Briquette output (kg/h) | 3,000 to 5,000 | 6,000 to 8,000 | 8,000 to 10,000 | 10,000 to 12,000 |
Power of compacting machine (kw) | 30 | 75 | 90 | 110 |
Installed capacity (kw) | 42 | 88 | 104 | 129 |
Dimension (l*w*h) (mm) | 1,850*1,5000*1,650 | 3,650*2,250*2,500 | 3,660*2,450*2,700 | 4,000*2,600*3,300 |
Weight of feeder and compacting machine (kg) | 6,000 | 15,000 | 20,000 | 25,000 |
Production time(d) | 30 | 45 | 60 | 60 |

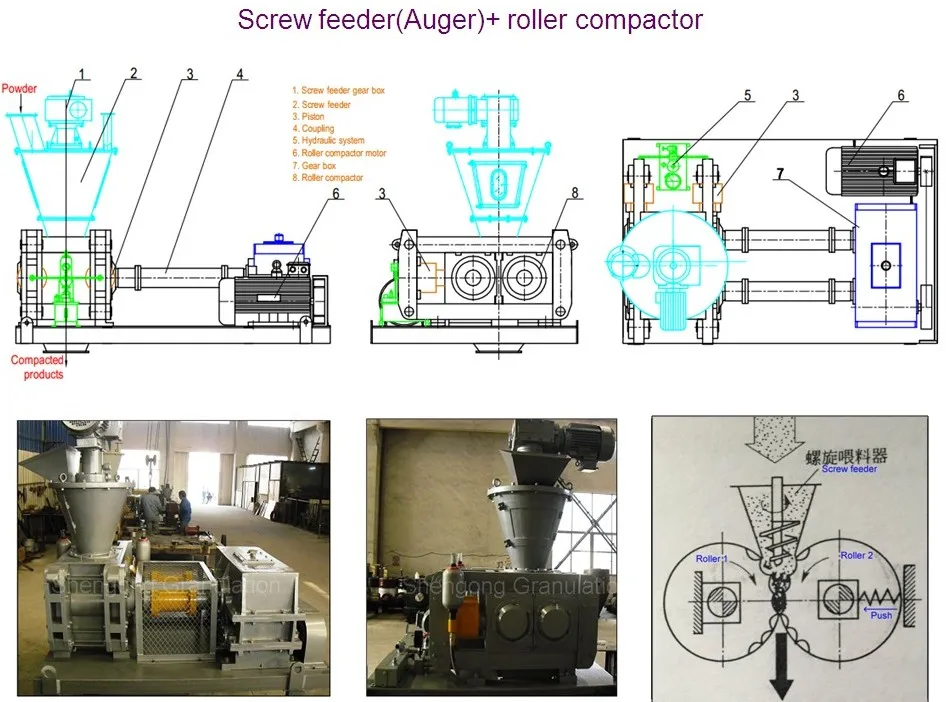

Briquette machine consists of screw feeder (upper taper) and double roller compactor
Briquette machine's peripheral equipments

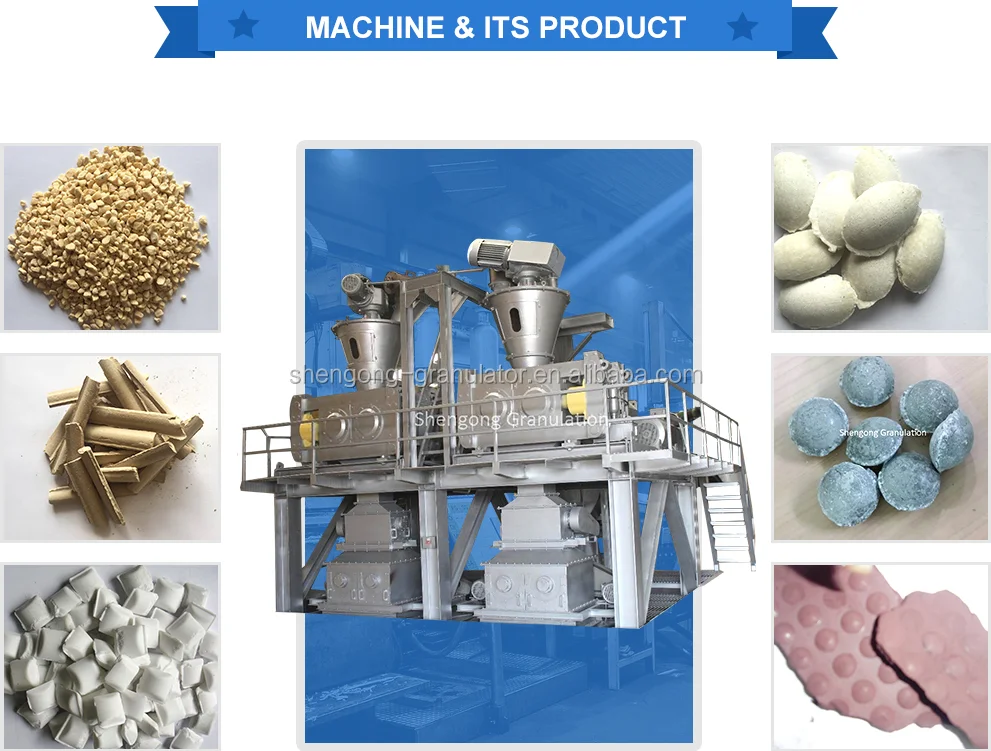

Briquette machine final products variable shapes
Rollers
Briquette machine line is being loaded into one 40ft. container.
