Applications Our die cutting machine is an indispensable piece of post press equipment which is widely used for die cutting, and creasing of adhesive stickers, carrier bags, book covers, packing boxes, greeting cards, desk calendars, corrugated cartons, etc. It can effectively cut the desired material into large numbers of the same shape.
Features 1. Our die cut machine is manufactured using high quality material for high strength 2. It adopts a 4-step helical gear mechanism, resulting in stable operation, large cutting force, and low noise. 3. Single disc electromagnetic clutch ensures agile, reliable operation 4. Reasonably designed operational altitude, moving bed with a large open angle 5. Electrical system is designed in accordance with IEC standard. 6. Single sheet die cutting, continuous die cutting operations, adjustable delay range 7. Reliable safety system ensures operator safety.

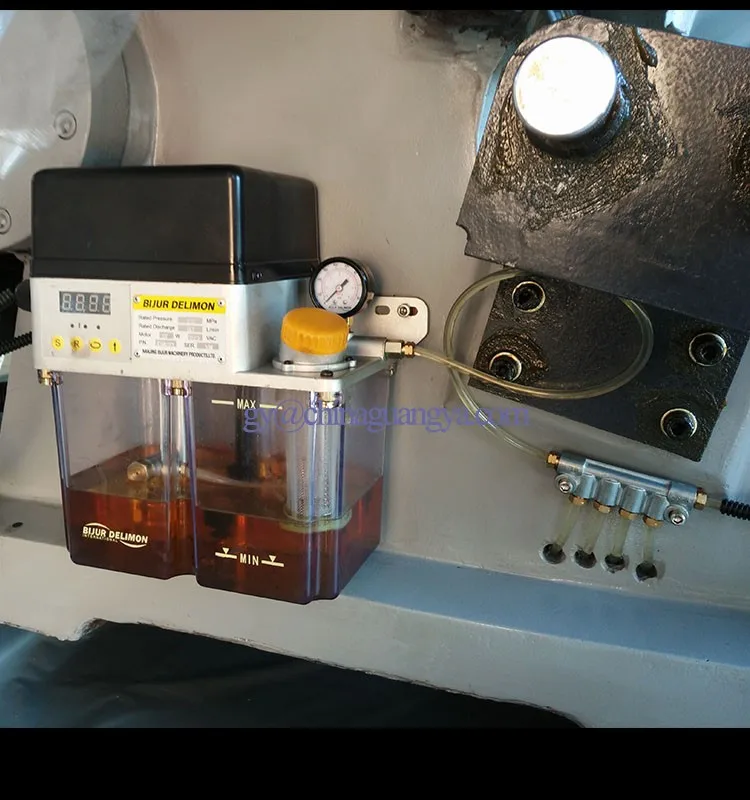

Advantages 1. Our die cutting machine uses centralized lubrication pump system 2. It adopts world famous brand electrical components 3. Strengthened construction ensures smooth operation and long service life. 4. The adoption of active plate frame makes it convenient to install die cutting rule and adjust pressure, producing clear and beautiful results.
Specifications
Model
ML-2000
ML-1800
ML-1600
Inside chase (mm)
2000×1400
1800×1300
1600×1250
Max. die cutting size (mm)
2000×1400
1800×1300
1600×1250
Speed (cuts/min)
16±2
16±2
16±2
Max. rule length (m)
≤58
≤50
≤43
Power main motor (kw)
15kw
11kw
11kw
Gross weight (kg)
16500
14200
12000
Dimensions (L×W×H)(mm)
3500×2200×2180
2900×2300×2180
2700×2300×2180

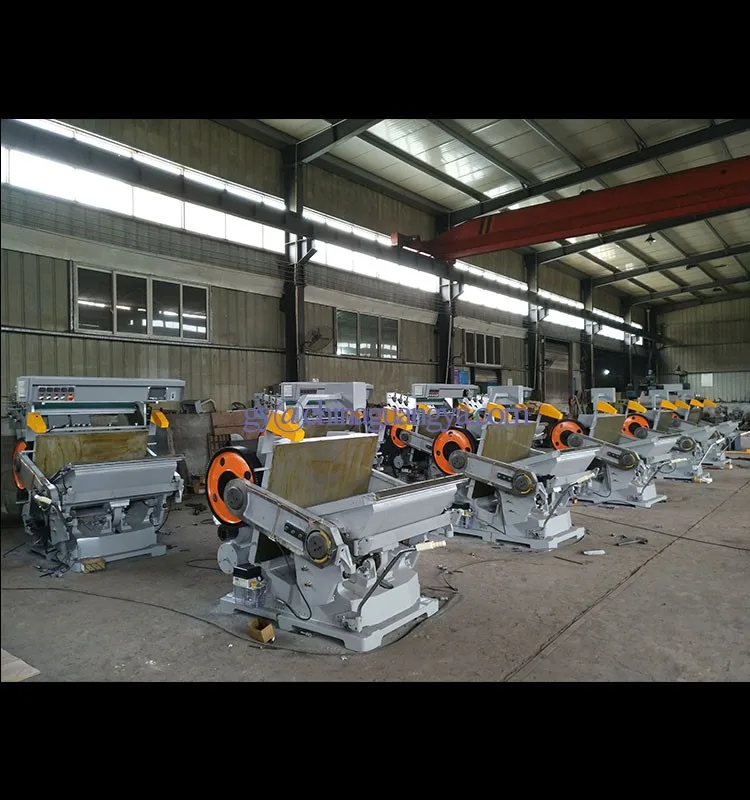

Mac under production

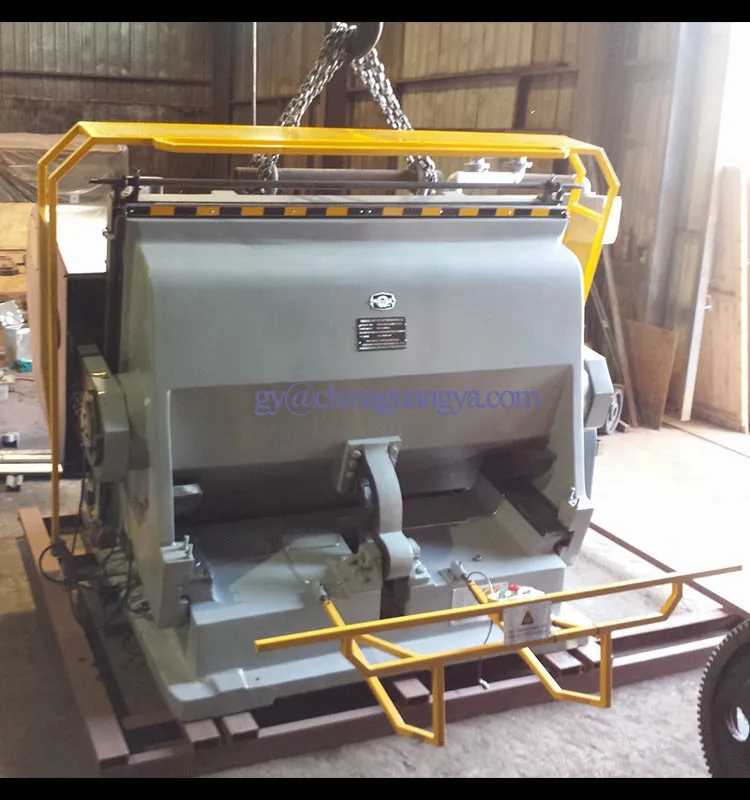

Packaging & Shipping
Before shipment, the machine is cleaned fully, daubed by anti-rust oil carefully, covered by plastic bag, wrapped by the stretch film, and at last firmed into the wooded case.
Certifications
Our Services
The Unique Human Care And Profession Passionate Sales Service System
We have professional sales and engineer, are ready to send emergency repair parts in 24 hours, easily damaged parts in 7 days with professional knowledge. We focus on customer service, all year non-stop service, personal training and so on. Not only provide customer service, But also pre-sales system, including solution to product selection, storage of parts, technical guidance, operating training, exchange management platform and so on. Realizing the idea of focusing on customer success, creating value to customer.
Company Information
Zhejiang Guangya Machinery Co., Ltd. was established in 1996, especially founded as a high technology manufacturer of print finishing equipment (Die Cutting Machine & Hot Foil Stamping Machine).
At present, Guangya machines can be found in over 80 countries, the products have gain the acceptance of customers all over the word.
Also Guangya has become one of the leading suppliers for solutions of the print finishing equipment in china.
Guangya hope to be your deal business partner to develop the prosperous future together.
FAQ
1. Are you a trading company or factory? We are the manufacturer and also we have import export license. We have been in making die cutting machine and hot foil stamping machinefor over 22 years.
2. Where is your company located? How can I visit there? Our new factory address: No.258, Haize Road, Binhai New Zone, Haixi Town, Pingyang County, Wenzhou City, Zhejiang Province, China.
The nearest transportation center is Wenzhou airport or Ruian train station.
3. Can you send technician for installation and training? Yes, we can send our technician abroad for installation and training, but all the charges must be paid by buyer, such as the plane tickets (a round trip), meals, hotel, traffic etc.
4. What’s your advantages ?
--22 years' experience: We have been in making die cutting machine and hot foil stamping machine for over 22 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply: Our team will reply you soon.
--After-sale service: We have an aftersales department, service for your problems and dealing with spare parts.
Buying Guides
Please feel free to contact us any time if you have any question.
