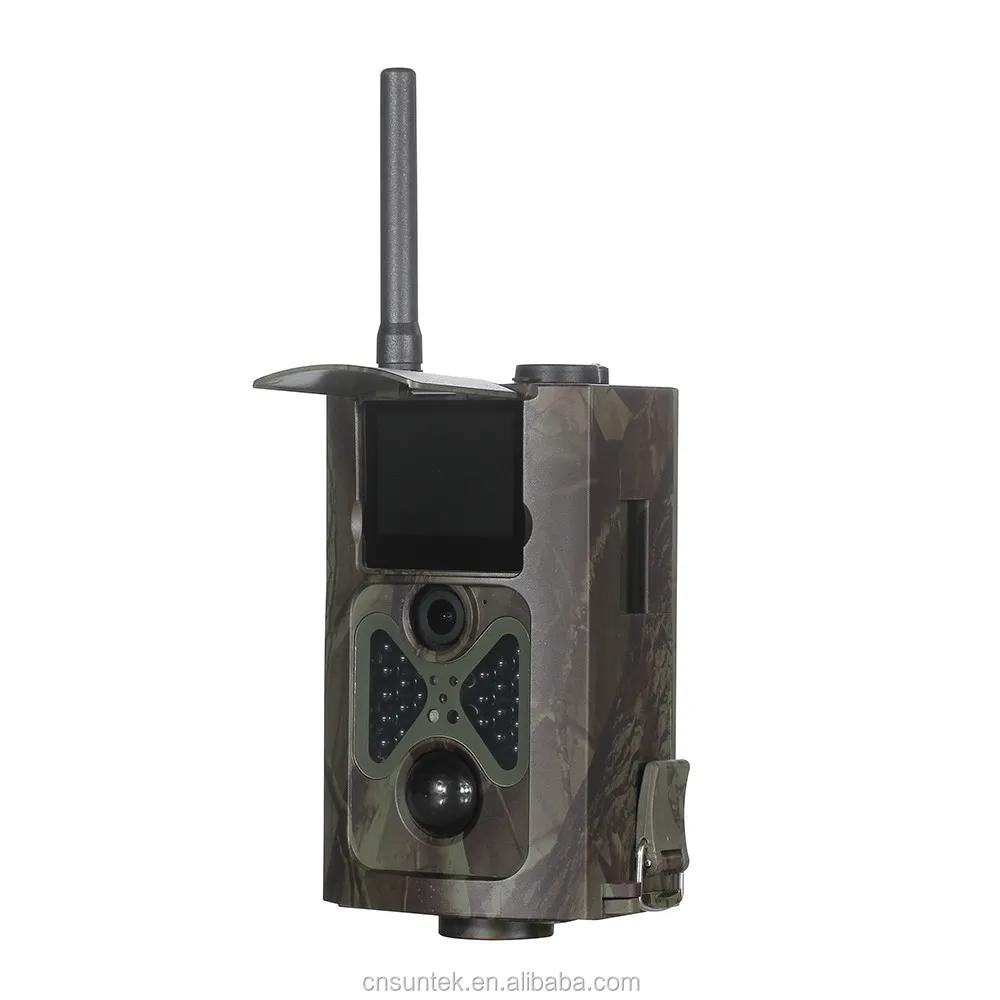

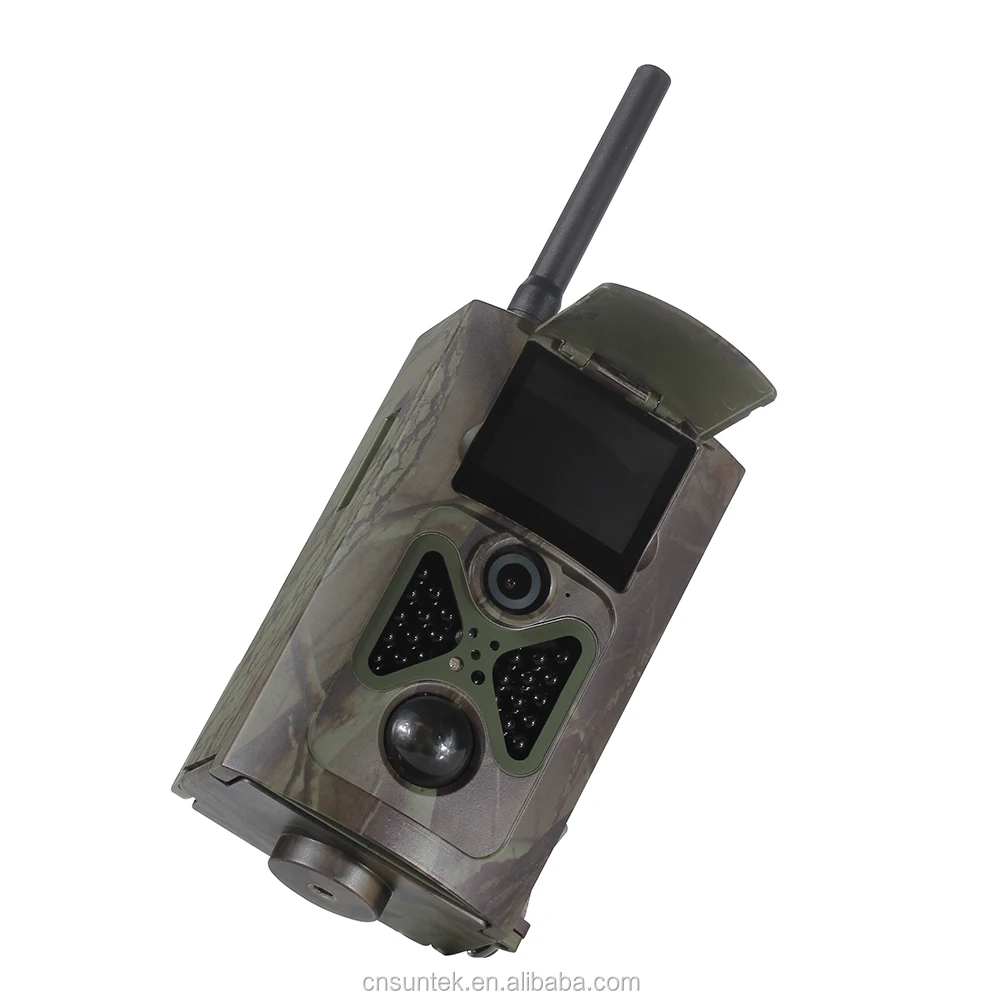

Wholesale Suntek 12MP MMS/GSM/GPRS/E-mail SMS Command Night Vision Hunting Camera HC550M
A. GENERAL DISCRIPTION
The HC550M is the newest high end trail camera work as a remote cellular camera,
with its highly sensitive Passive Infra Red (PIR) sensor, the camera detects the sudden
change of ambient temperature caused by moving game in a region of interest (ROI),
triggers to take pictures/videos, and sends the images via GSM network to the
user’s cell phone or email account.
B.Specifications
Image Sensor Type(True Megapixels)
16 MP Megapixels Color CMOS
Memory
TF Card 8MB~32GB (Not included)
Lens
F=1.8mm, FOV(Field of View)=90°
PIR Sensing Distance
65feet/20m
TFT Display Screen
2.0 inch
IR Filter
Full Automatic IR Filter
Selectable Image Resolution
16MP/12MP/8MP
Video Resolution
1080P(25fps), 720P(25fps), VGA(25fps)
PIR Sensor sight angle
120 degrees
Timelapse
30min/60min/90min
Trigger speed
0.5second
Triggering interval
1 second ~ 60mins (default 5 sec)
Operation Temperature
-30 - +70 °C /-22 - +158 °F
Multiple Frame
1/3/6/9
File Format
JPEG/AVI (16:9 size)
Power Supply
8xAA or 4xAA battery
Stand-by Current
0.2mA
Power Consumption
150mA
Date Time Imprint
Yes
Camera ID
Support 6 characters
MMS/Email/SMS Remote Control Support
Yes

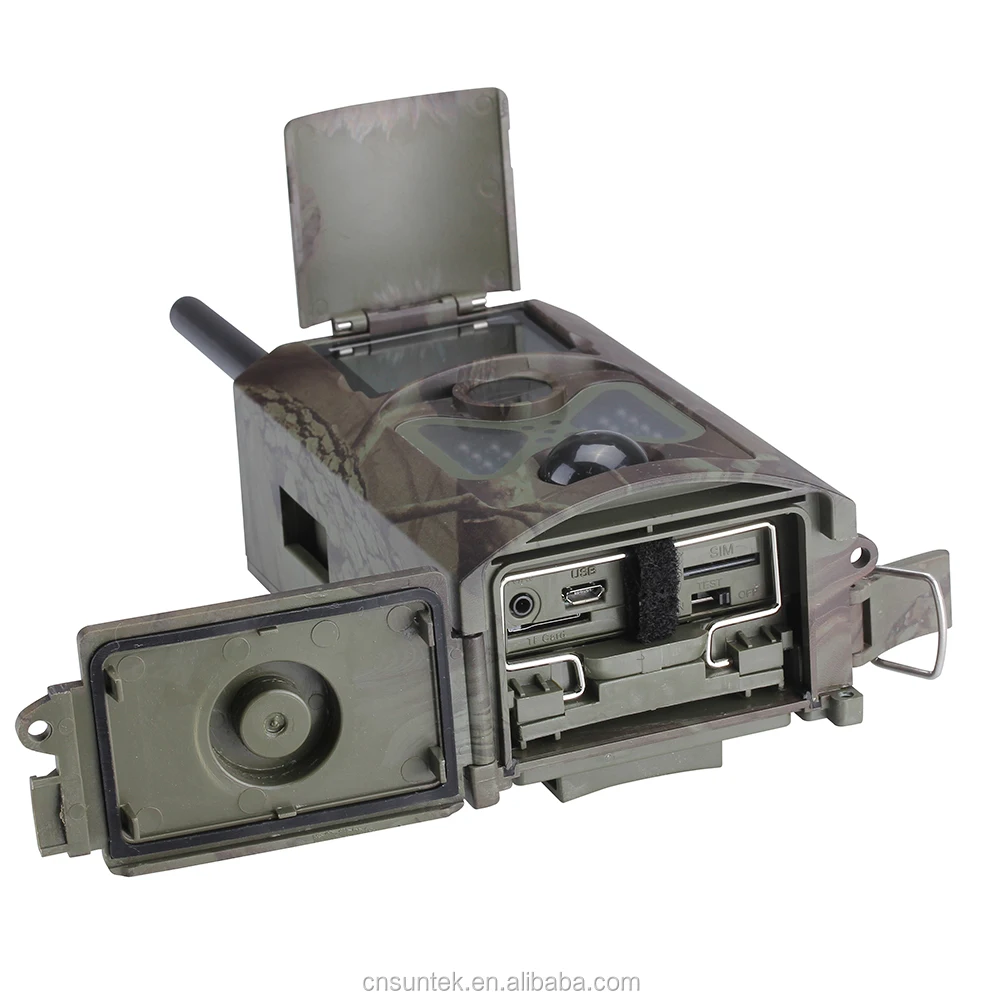

Interface
TV out(NTSC/PAL); USB; SD Card Holder; 6V DC External

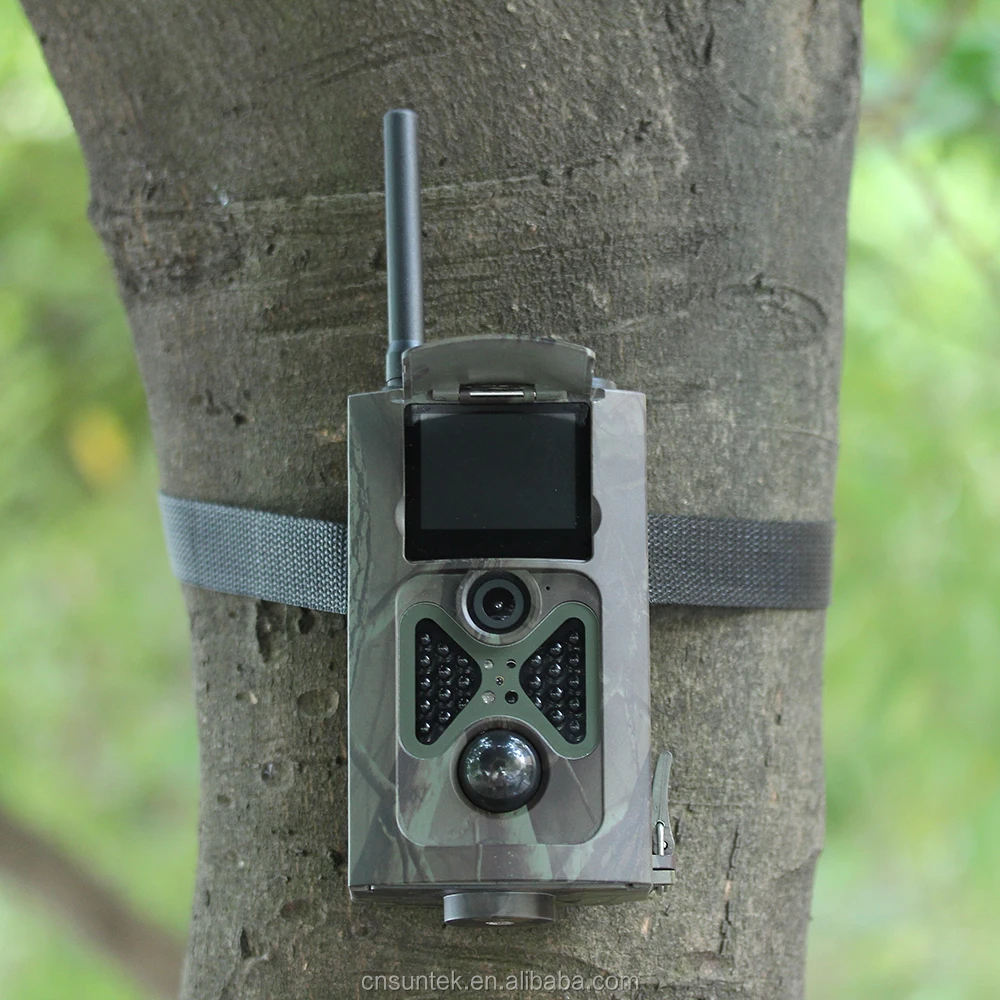

Fix Method
Belt, Tripod Nail
Camera Socket
Yes
Water Proof
IP54
Dimensions
145x80x55mm
Weight
About 0.65Kg without battery
Security Authentication
FCC, CE, RoHS,IP54
SMS Command Code
*505*:Take a photo and send the picture to send phone *500*:Take a photo and send it to the phone in Parameter *530*:Enable detection *531*:Disable detection *520*:Return the picture and battery information
C. Features
1. 8M/12M/16M pixel high-quality resolution.
2. 1920 x 1080 HD video with audio.
3. Infrared night vision LED 850nm for flash range as far as 65 feet (20m) (No-glow model 940nm has 35 feet (10m) flash range).
4. “Cam + Video” mode enables camera to take both picture and video at every trigger event.
5. Continuous shooting interval time about 0.5 or 1 second (stamp off or On)
6. Extremely long in-field life (in standby mode, up to 3 months with 8 x AA batteries)
7. Unique side Prep Sensor design provides wider sensing angle and enhances camera’s response speed.
8. Perform in the most extreme temperatures from -22°F (-30°C) to 158°F (70°C)
9. Well designed to deploy covertly Impressively quick trigger time (0.5 second)
10. Programmable to work as Time-Lapse camera taking pictures/videos in long range day and night.
11. When Timer setting on, programmable to only work in specified period every day. This feature can be used together with Time Lapse feature to meet your timetable.
12. In camera’s bottom cover built-in 2.0” TFT color display to review images and videos.
13. Date, time, temperature and battery level can be stamped on picture
14. Lockable and password protected
15. Setup is a snap by running the user-friendly software on the enclosed CD on the computer
16. Can change several languages of the menu through setting country in menu or in PC Setup
17. Bundled with the MMS-module (Multimedia Messaging Service), the standard scouting camera can be upgraded to work as a remote cellular camera
D.Each Package Includes
Digital hunting camera:1 pcs Remote control: 1pcs
Antenna: 1pcs USB cable:1 pcs A/V cable:1 pcs Strap:1 pcs
CD Manual:1 pcs
Picture Quality
The day pictures from Suntek HC550series are amazing.the maximum pixels can reach 16MP.Both color and clarity are exactly what we like to see.
The night pictures are surprisingly clear and bright, especially for a no glow trail camera. You can click on any of the images belowto see exactly what we are talking about.
When the camera is in GPRS Work mode (sending the pictures to your email or phone), the photo quality will be diminished.
