Product Overview
Description
Product Description
Product Application

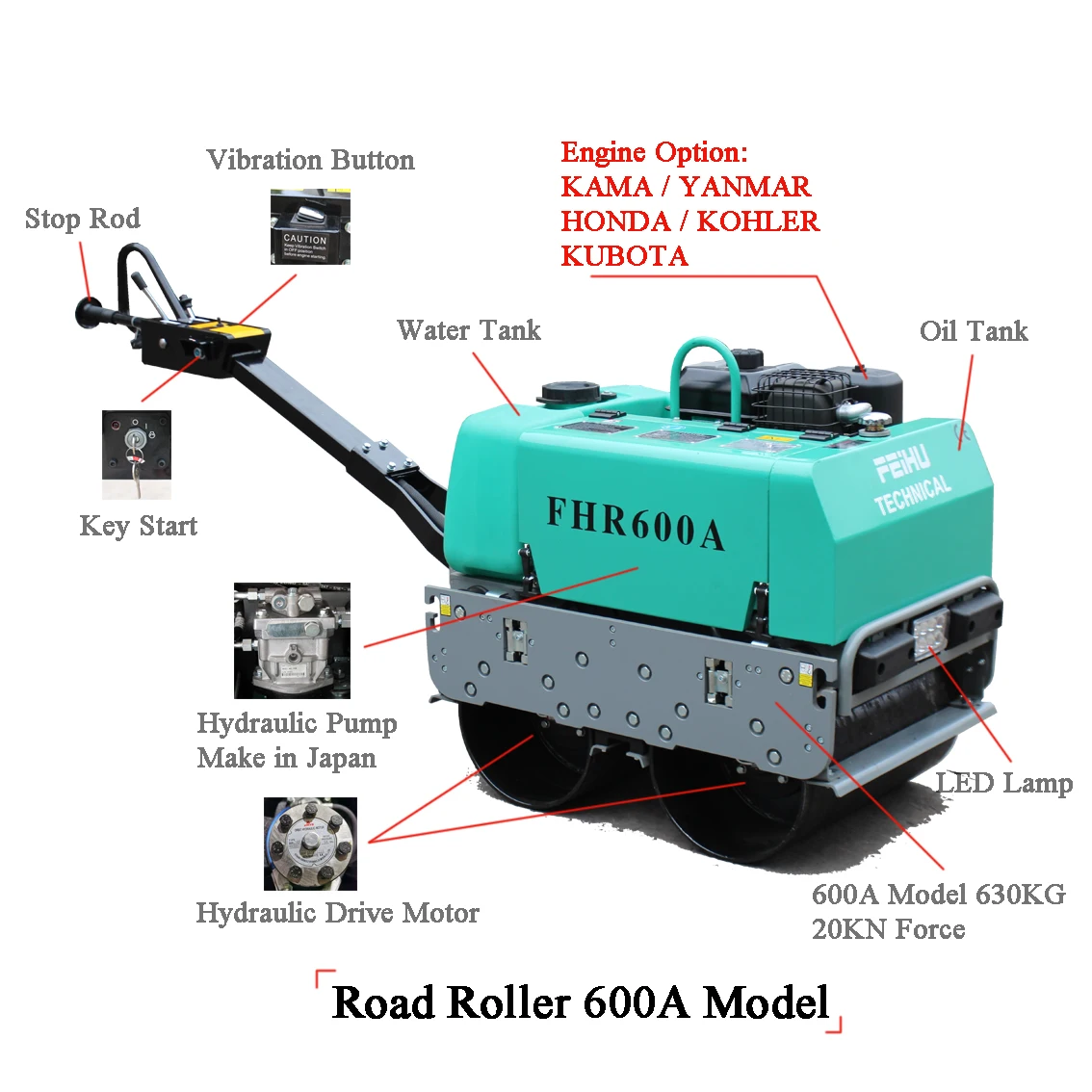

SPECIFICATIONS FOR 600A VIBRATORY ROLLER | ||||||
Engine | WATER COOLED DIESEL CP90 | Kw/rpm | 9HP/2400 | |||
HONDA GX390 GASOLINE | Kw/rpm | 13/3600 | ||||
KAMA 186 AIR COOLED DIESEL | L | 9HP/3600 | ||||
Main performance parameters | Centrifugal Force | KN | 20 | |||
Travel speed (max. & min.) | KM/H | <=5 | ||||
Max. Climbing Capacity | ° | 30 | ||||
Hydraulic system | Hydraulic Oil Tank | L | 25 | |||
Water Tank | L | 40 | ||||
Weight | KG | 630 | ||||

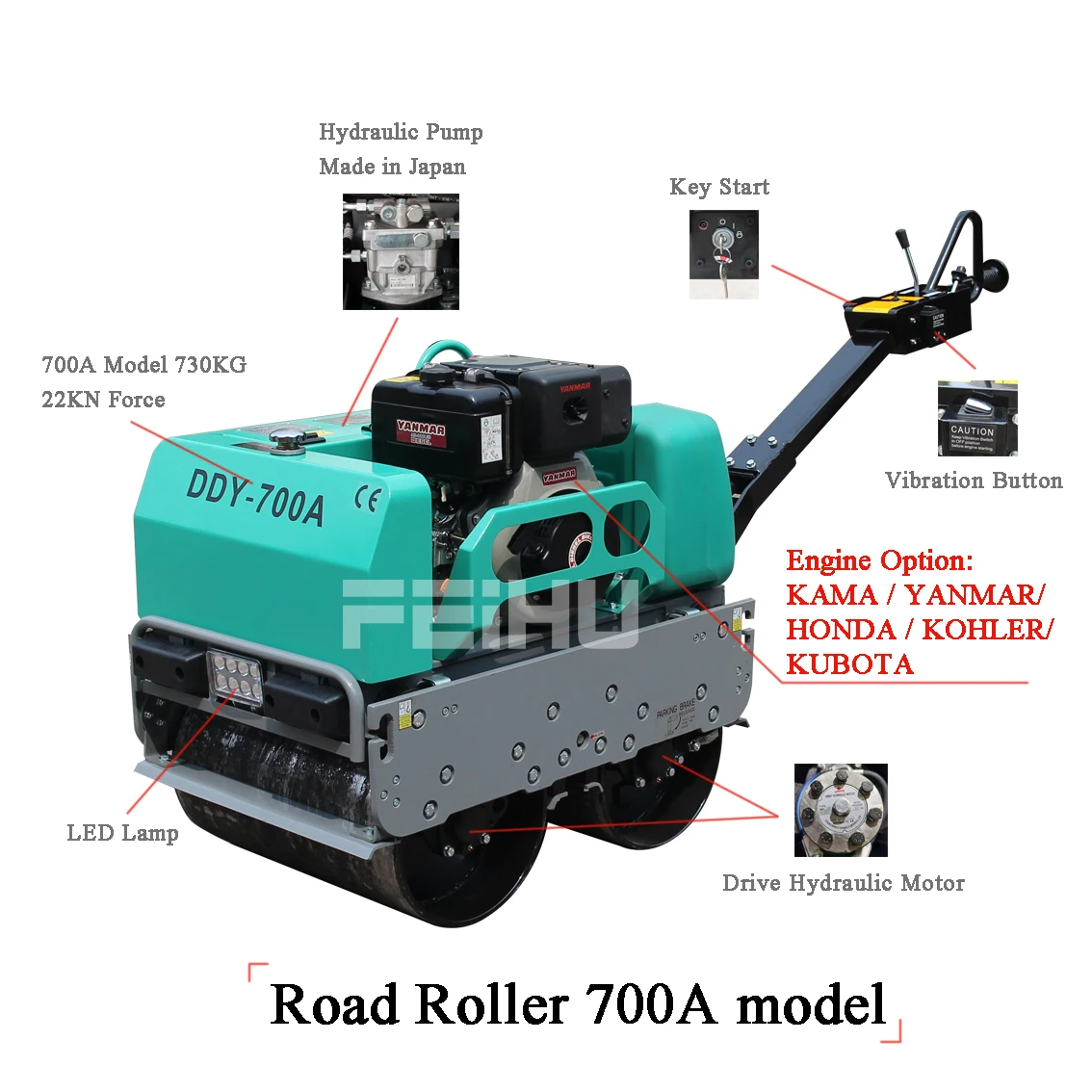

SPECIFICATIONS FOR 700A VIBRATORY ROLLER | ||||||
Engine | WATER COOLED DIESEL CP90 | Kw/rpm | 9HP/2400 | |||
HONDA GX390 GASOLINE | Kw/rpm | 13/3600 | ||||
KAMA 186 AIR COOLED DIESEL | L | 9HP/3600 | ||||
Main performance parameters | Centrifugal Force | KN | 22 | |||
Travel speed (max. & min.) | KM/H | <=5 | ||||
Max. Climbing Capacity | ° | 30 | ||||
Hydraulic system | Hydraulic Oil Tank | L | 25 | |||
Water Tank | L | 40 | ||||
Weight | KG | 730 | ||||

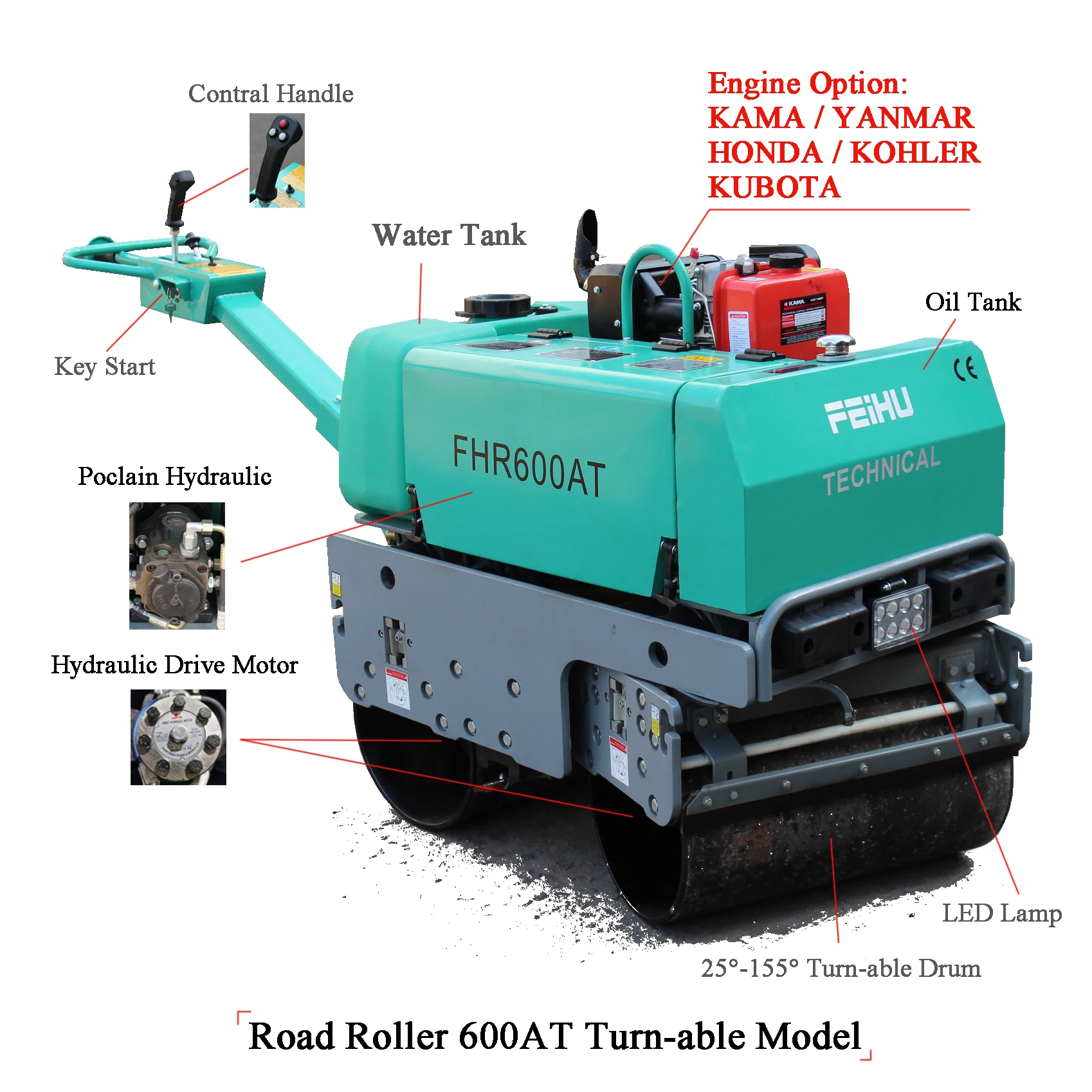

SPECIFICATIONS FOR 600AT VIBRATORY ROLLER | ||||||
Engine | WATER COOLED DIESEL CP90 | Kw/rpm | 9HP/2400 | |||
HONDA GX390 GASOLINE | Kw/rpm | 13/3600 | ||||
KAMA 186 AIR COOLED DIESEL | L | 9HP/3600 | ||||
Main performance parameters | Centrifugal Force | KN | 20 | |||
Travel speed (max. & min.) | KM/H | <=5 | ||||
Max. Climbing Capacity | ° | 30 | ||||
Hydraulic system | Hydraulic Oil Tank | L | 25 | |||
Water Tank | L | 40 | ||||
Weight | KG | 680 | ||||
Main Features
1) JAPAN TUFF TORQ HYDRAULIC PUMP.
2) America WHITE HYDRAULC MOTOR.
3) Taiwan QIANDAI ELECTRIC CLUTCH.
4) PARKING BRAKE
5) PLASTIC WATER TANK .
Certifications
Detailed Images
CONTRAL HANDLE
Name: Contral Handle
Design: By FEIHU
Humanized contracl handle, including electric starting key and electric vibratory button, accelerator and forwarder and back line.
JAPAN TUFF TORQ HYDRAULIC PUMP
Name: HYDRAULIC PUMP
Brand: TUFF TORQ
Original: JAPAN
Adopts TUFF TORQ static hydraulic drive device with stepless speed regulation,reverts conveniently and long life
TAIWAI QIANDAI ELECTRIC CLUTCH
Name: ELECTRIC CLUTCH
Brand: QIANDAI
Original: TAIWAN
Domestic famous electric clutch, strong driving force, long working time, one year quality guarantee.
PARKING BRAKE
Name: Parking Brake
Design: By FEIHU
Professional design and easy to operate.
To keep safe when the machine parking at abrupt slope .
Our Service
Packing & Delivery
Packaging | ||
Size | 127 (L) * 74 (W) * 108 (D) | |
Weight | 640KG | |
Packaging Details | The normal package is iron frame inside and carton outside . Fork can rase the package through the foot on the bottom. | |
