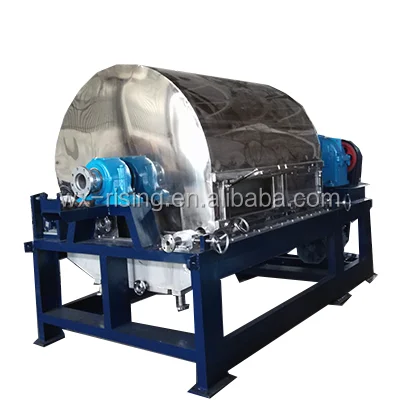

Excellent performance wax stearic acid rotary drum flaker

Condensation flaker is used to make flakes from heated fluid to solid flakes through knife blade. The heated fluid is stuck on the revolving cooling roller and turn to solid then us adjustable knife blade to cut it into flakes. Thus completes the conversion of liquid to solid flake after cooling and then use knife blade, and it can also make flakes for the raw material which is converted from liquid to crystalline solid. It is widely used in chemical, pharmaceutical and other industries. The flaking machine improves the final flakes product quality if you compare the product making by crusher. Moreover, the machine is of good stability and easy operation. And the thickness and output of flake is related with raw material characteristics, drum speed and feeding speed. Flake specifications can be customized.

Specification	Revolution (r/min)	Motor Power Consumption(Kw)	Capacity (Kg/h)
500×600	0 - 20	1.5 - 3	50 - 150
600×800	0 - 20	2.2 - 5.5	50 - 250
800×1000	0 - 20	3 - 7.5	100 - 450
1000×1200	0 - 20	4 - 7.5	100 - 650
1200×1500	0 - 20	5.5 - 11	100 - 1000
1300×1500	0 - 20	7.5 - 15	200 - 1100
1400×1500	0 - 20	7.5 - 18.5	500 - 1500
1500×1500	0 - 20	7.5 - 22	500 - 2000
1500×1800	0 - 20	7.5 - 22	800 - 2500

Main Features

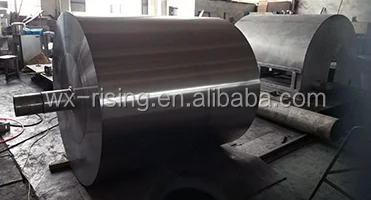

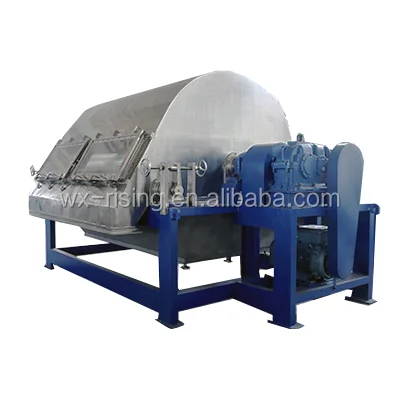

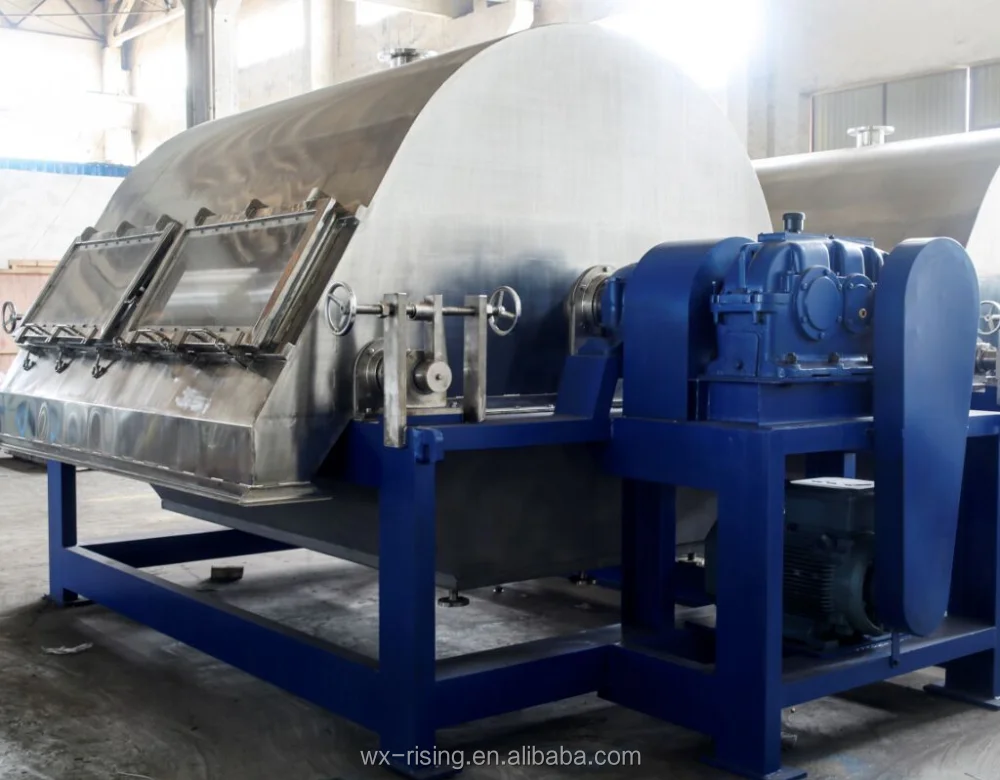

The drum flaker is including: frame support, electric motor, gear reducer, cooling drum,

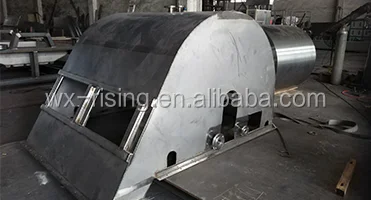

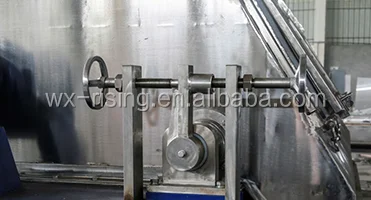

scraper knife, thickness adjustor, feeding hopper, discharging hopper, stainless steel dedusting Cover etc.

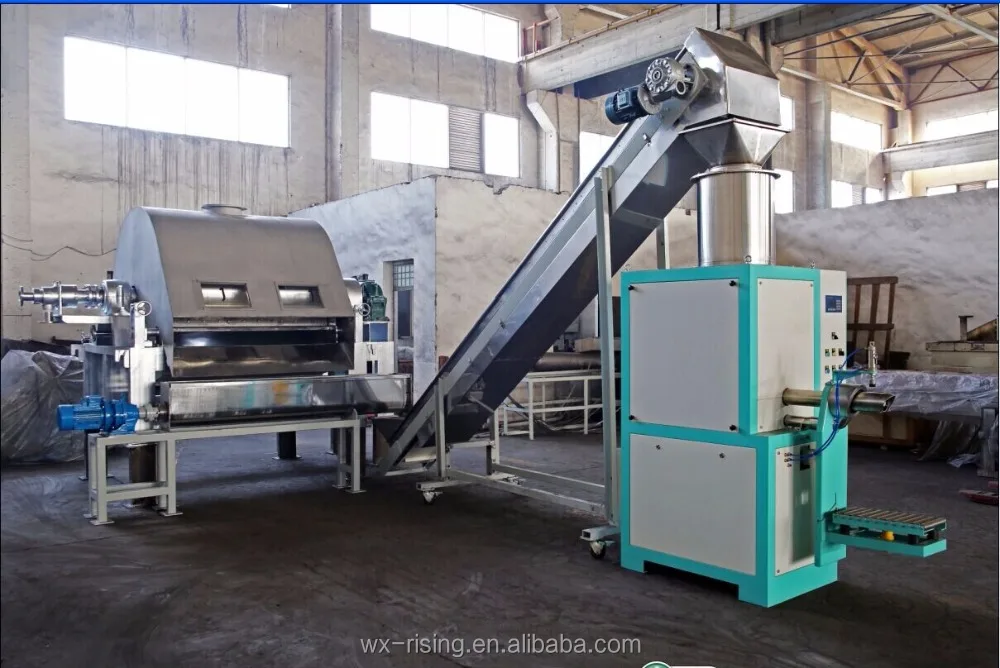

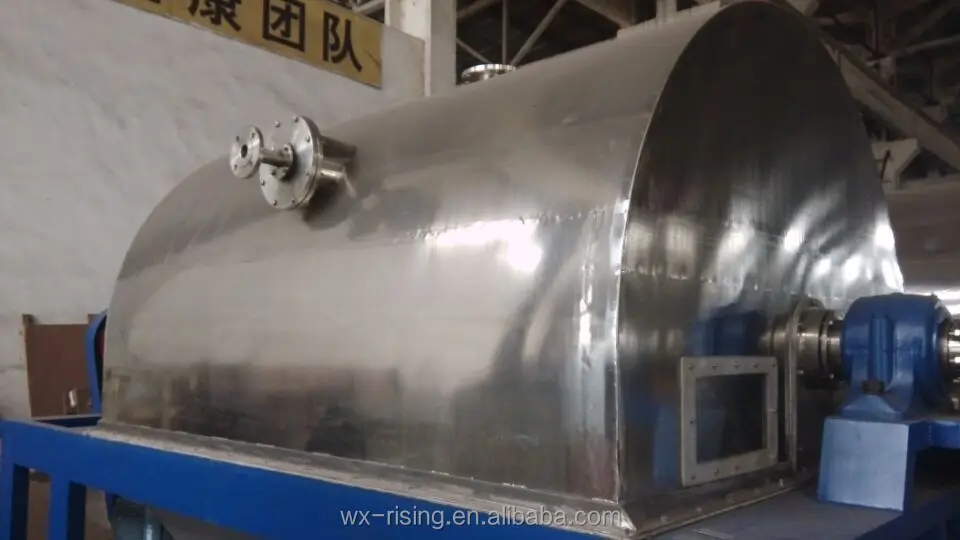

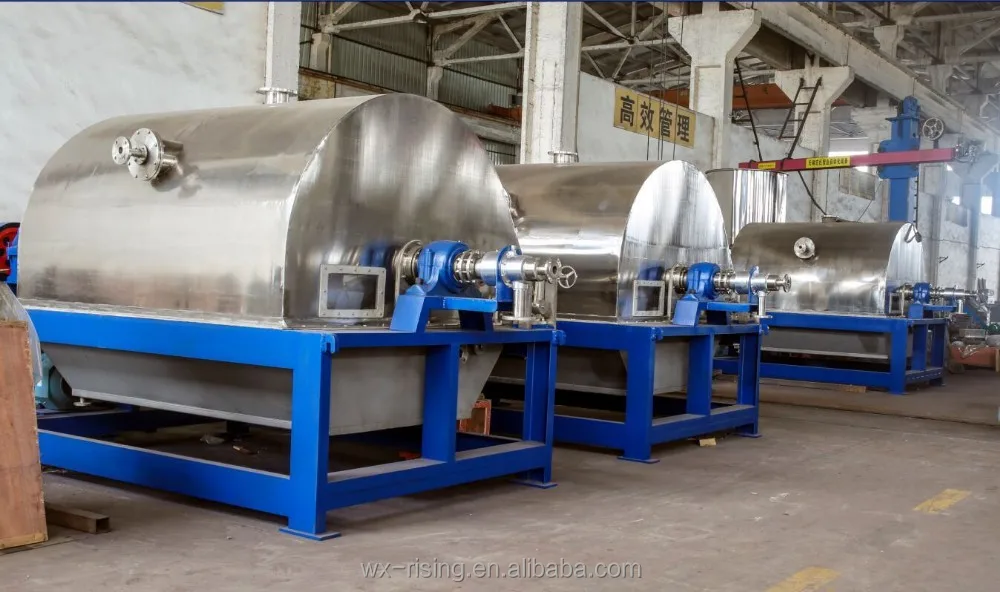

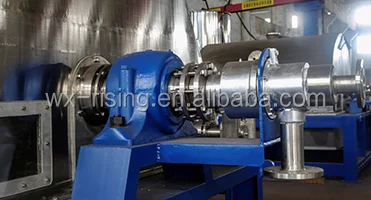

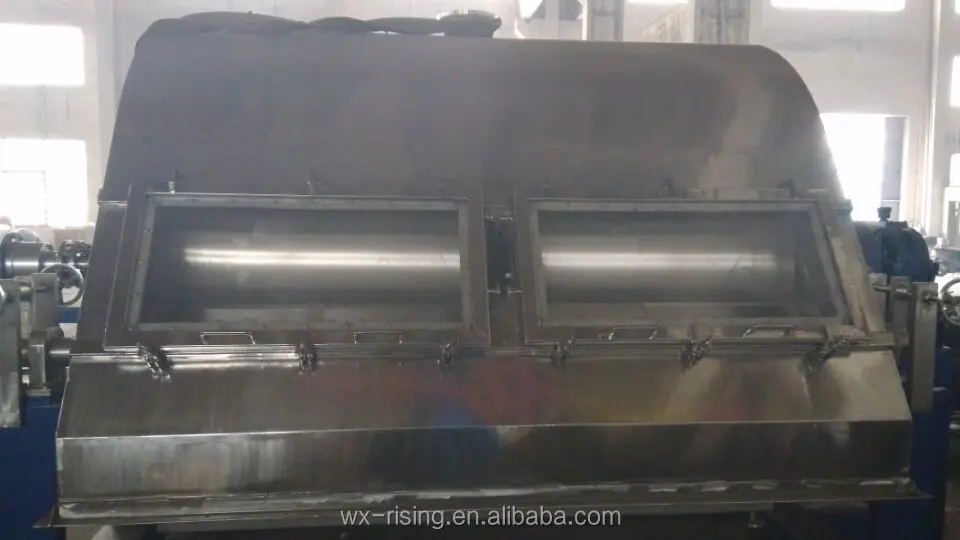

Detailed Images

Packing & Delivery

Nude packing and wooden case
Delivery within 50 working days

Certifications

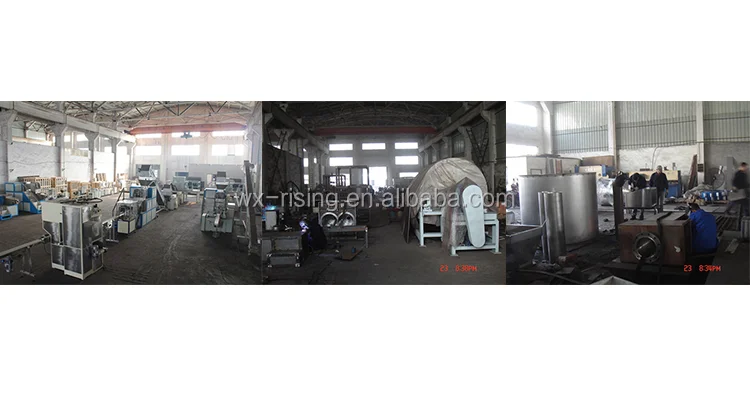

Workshop

Wuxi Rising Machinery Co., Ltd. is a manufacturing enterprise which is specialized in producing chemical equipments, pharmaceutical equipments, food and dye intermediates, and other special purpose equipments. It has various kinds of technicians in technology, welding, production and quality control, as well as advanced production and testing equipments.

Our products can be classified into: reactor, flaker, dryer, separator, concentrator, heat exchanger, fermentation equipments, extraction equipments, fractionating towers and tower stuffing and so on. We also provide all kinds of services including design, manufacture, installation and commissioning etc.
