DZS3 SB2 Series double spring applied electromagnetic brake

Product Overview

Description

Applications



DZS3 - SB2 series double electromagnetic brakes is losing electricity power-cut occurs.it (release), Without electricity sping brake friction drum brake (hereinafter referred to as the brake). Its main With Y series motor supporting into YEJ electromagnetic braking series three-phase asynchronous electrical Motivation. Widely used in metallurgy, construction, chemical, food, machine tool, packing The machinery, and in case of a power cut safety (FangXian) brake occasions, realizing fast Speed parking and accurate positioning. This kind of brake be doubly braking torque, and pleasant Used for ascension equipments and other special requirement for safe operation of the field.

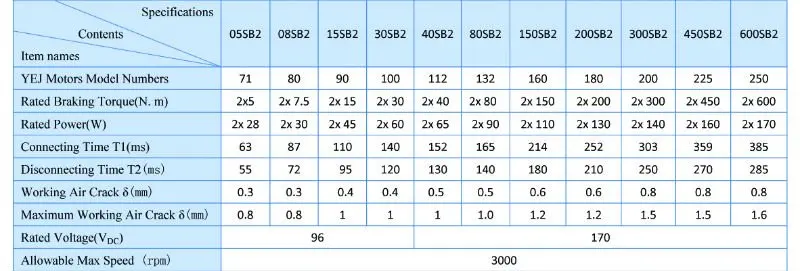

Main Technical Data

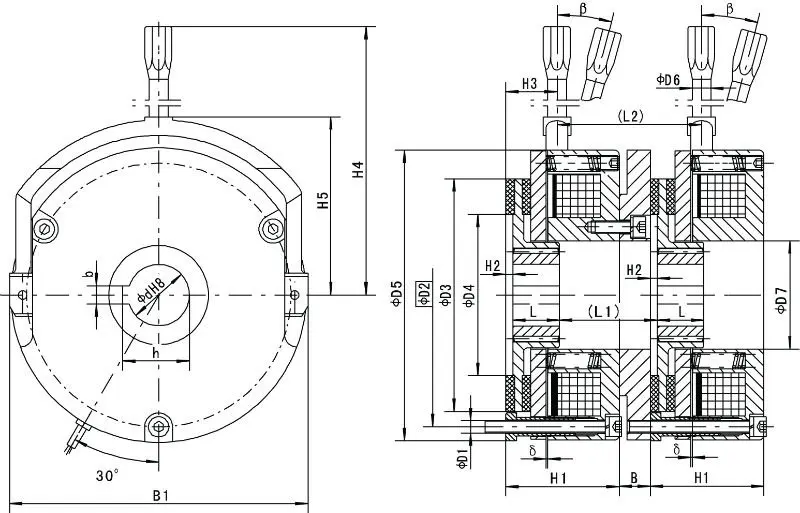

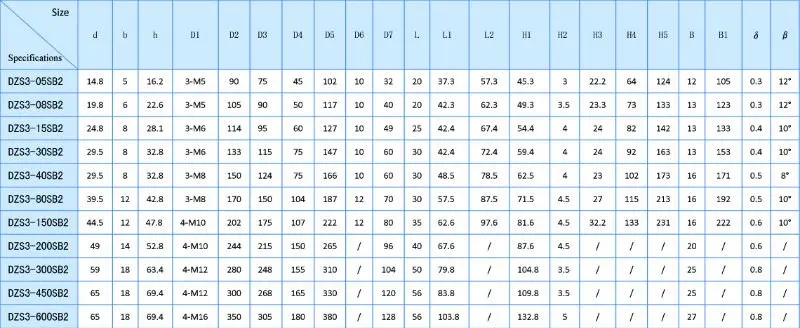

Overall and Installation Dimensions

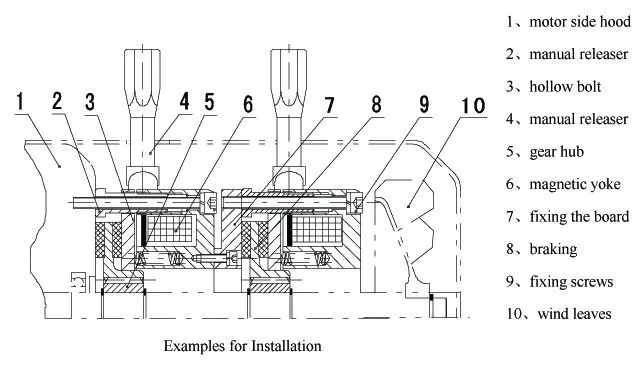

Installation



Warning
1.Friction disc and armature surface should be kept
clean and free of grease.
2.When fixing, the air gap "δ" should be kept to the
specified value.
3.The gear hub are not allowed to move along axially.
4.Turn the hollow bolt so that it is fixed on the bake
cover or the flange  plate.
