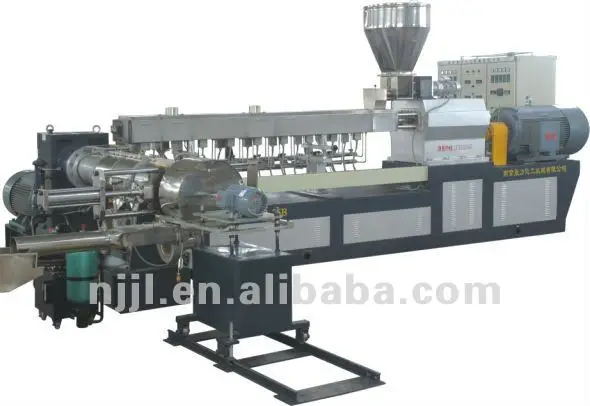

Soft PVC / Rigid PVC two stage extruder

Product Overview

Description



The SHJS series two-stage extruder consisted of two stage components. The first stage is SHJ co-rotating twin-screw extruder, the second stage is SJ single screw extruder. This machine first of all to realize material better compounding and shearing by twin-screw, then the single screw fulfills the task of extruding and granulating.

The scientific and advanced structure can avoid material decomposition phenomena due to overheating. To combines the advantage of twin-screw and single screw together and complementation, likewise, propitious to every craft distribution and optimize so that making higher efficient and production capacity.

The two-stage extruder best suits for producing PVC, POM, XLPE thermo-sensitive material etc.



1.Techincal Data:



Model		D(mm)	L/D	n(r/min)	P(kw)	Q(kg/h)
SHJS50-100	SHJ-50	50.5	24-48	500	37/45	100/300
	SJ-100	100	7-20	85	30/37
SHJS65-150	SHJ-65	62.4	24-48	500	55/75	200/500
	SJ-150	150	7-20	85	37/45
SHJS75-180	SHJ-70	71.0	24-48	500	90/110	400/800
	SJ-180	180	7-20	85	45/55
SHJS95-200	SHJ-95	93.0	24-48	400	200/250	700/1500
	SJ-200	200	7-20	85	55/75













2. Certificate:

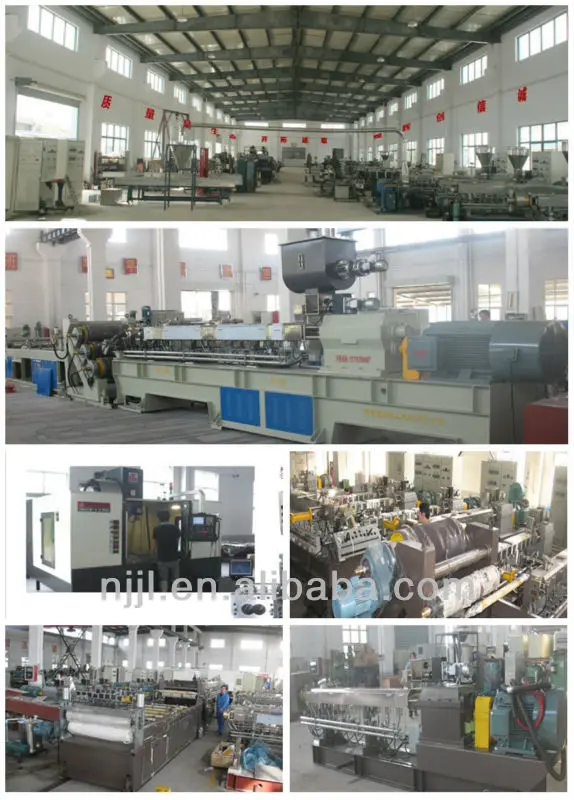

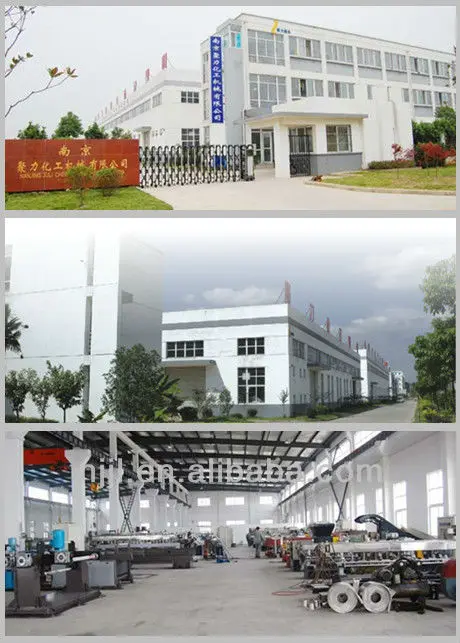

3. Manufacturer

















4. Exhibition
