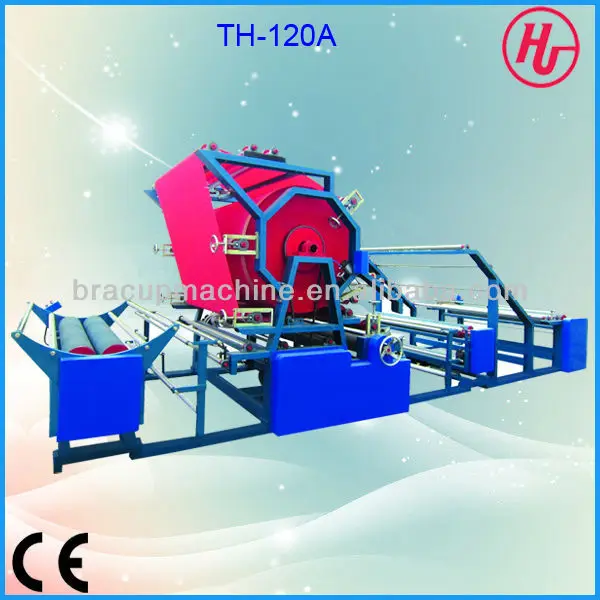

TH 120A Vertical Type Non woven Fabric Laminating Machine

Product Overview

Description







Function:

TH-120A Vertical Laminating Machine

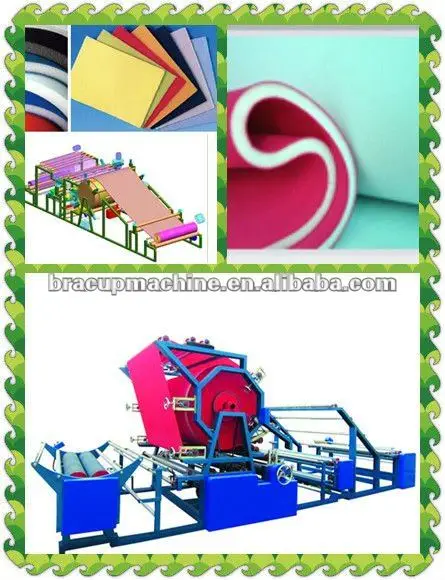

Mainly used for the precise lamination production of high quality and highly elastic underwear fabrics with foam, plain fabric, knitted fabrics and etc.





Features:

1. The design of the whole machine emphasizes on the stable performance and secure supervision.

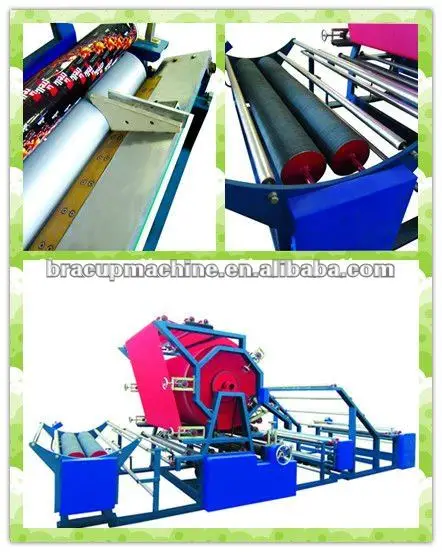

2. According to the request of the cloth and the glue, a variety of specification chromium rollers are made by measurement, which improved the lamination quality effectively and decreased the glue consumption.



3. It adopts the steel belt of high temperature resistance on hard chromium roller and the process of pressing cloth proceeds evenly.



4. Replacing the spring pressing roller with the cylinder which raises the whole speed.



5. Equipped with infrared automatic rectification system, material delivery automatically, decrease waste and avoid wrinkling.



6. It is a result after being improved in transmission system based on the original merits of other advanced models such as TH-120B / E / C.



Merits:

1. Besides all functions of original models, it is efficient and of energy saving. It is worked by double cutters which has double efficiency.



2. unique and reasonable way to glue-coating makes the glue put evenly;



3. save much glue dosage. It can be processed by water and oil-based glue.



4. characteristics such as: soft, good texture, water-proof, ventilate and dry-cleanable.



Technical Parameters:

Power supply/Power	380V/35KW
Motion power	3HP+2HP(frequency control of motor speed
Specification of its heating roller	Ø1200×1830mm(it can be customized)
Working width	1700 mm
Working speed	30-45yards/min
Dimension of the machine	7800×2600×2400mm
Weight	3000KG





We are the 1st professional manufacturer & supplier of underwear machinery in Shantou, China Mainland.  Besides, we also have own bra cup factories located in Xiamen City and Dong Guan City. We can supply 400~500 sets of machinery monthly, and 1.5~2.0 million pairs of bra cups/ bra pads in each factory.





1.  MOQ: 1 set



2.  OEM & ODM can be acceptable.



3.  We own all the original R & D Technology and Proficient Experience in this field over 13 years.



4.  All the Moulds can be customized according to your supplied samples.

     CNC Made or Manual Made to be Optical.



5.  The Molding Table Size can be bigger customized if required.



6.  The Molding time and temperature can be preset and adjusted freely through the timers and temperature controllers when we mold / press different materials.



7.  All the digital meters are easy to operate.



8.  All the spare parts can be matched to supply.



9.  All the electric fittings and pneumatic parts used in our machinery are with high-quality.



10. All the raw materials (machine frame, machine fittings and etc) are processed by our own factory.



11. We guarantee there is absolutely without jerry-built.



12. Good & Timely After-Sale Services.



 If above details are still not clear for you, kindly please contact me without delay!

Looking forward to cooperating with you for long term!
