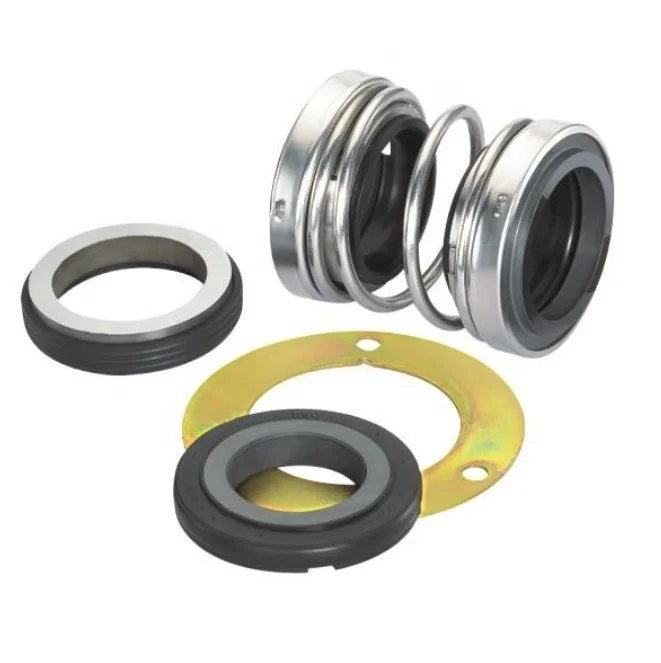

water pump mechanical seal EKK Eagle type ED560

Product Overview

Description

Applications

Use in auto-cooling pumpressors ,mixers and other rotating equipments.

temperature:-40-150degree

pressure:0.8Mpa

speeds:13m/sec

Medium:

oil,waterand general corrosive liquid



Materials

Rotating ring(carbon/sic/TC)

Stationary ring(Ceramic/sic/TC)

Auxiliary seal(NBR/VITON/EPDM)

Spring and other parts (sus304/sus316/s.s)



Design Features

Double face ,single spring,unblanced ,rubber bellows structure

The seal face is drive though the interferential shrink of the rubber piece,good floating.
