water pump mechanical seal

Product Overview

Description

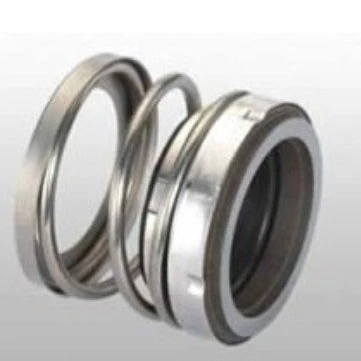

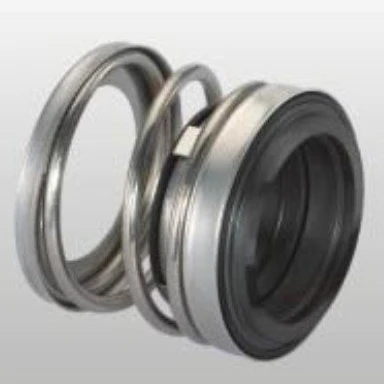

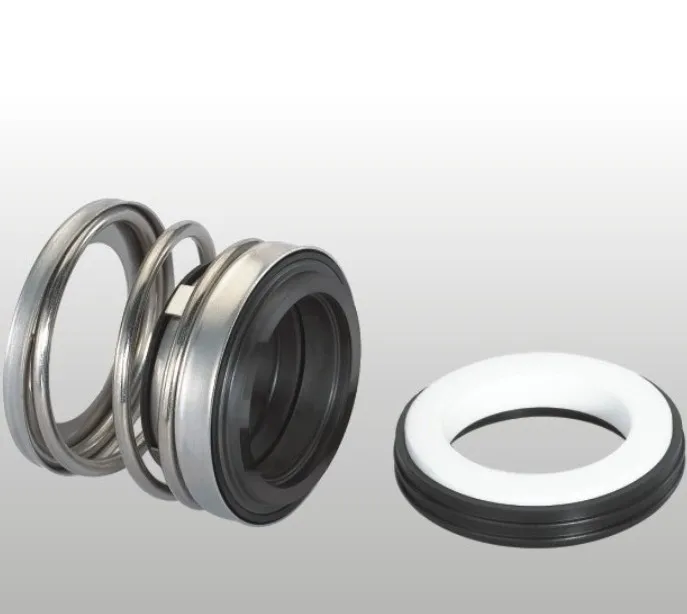

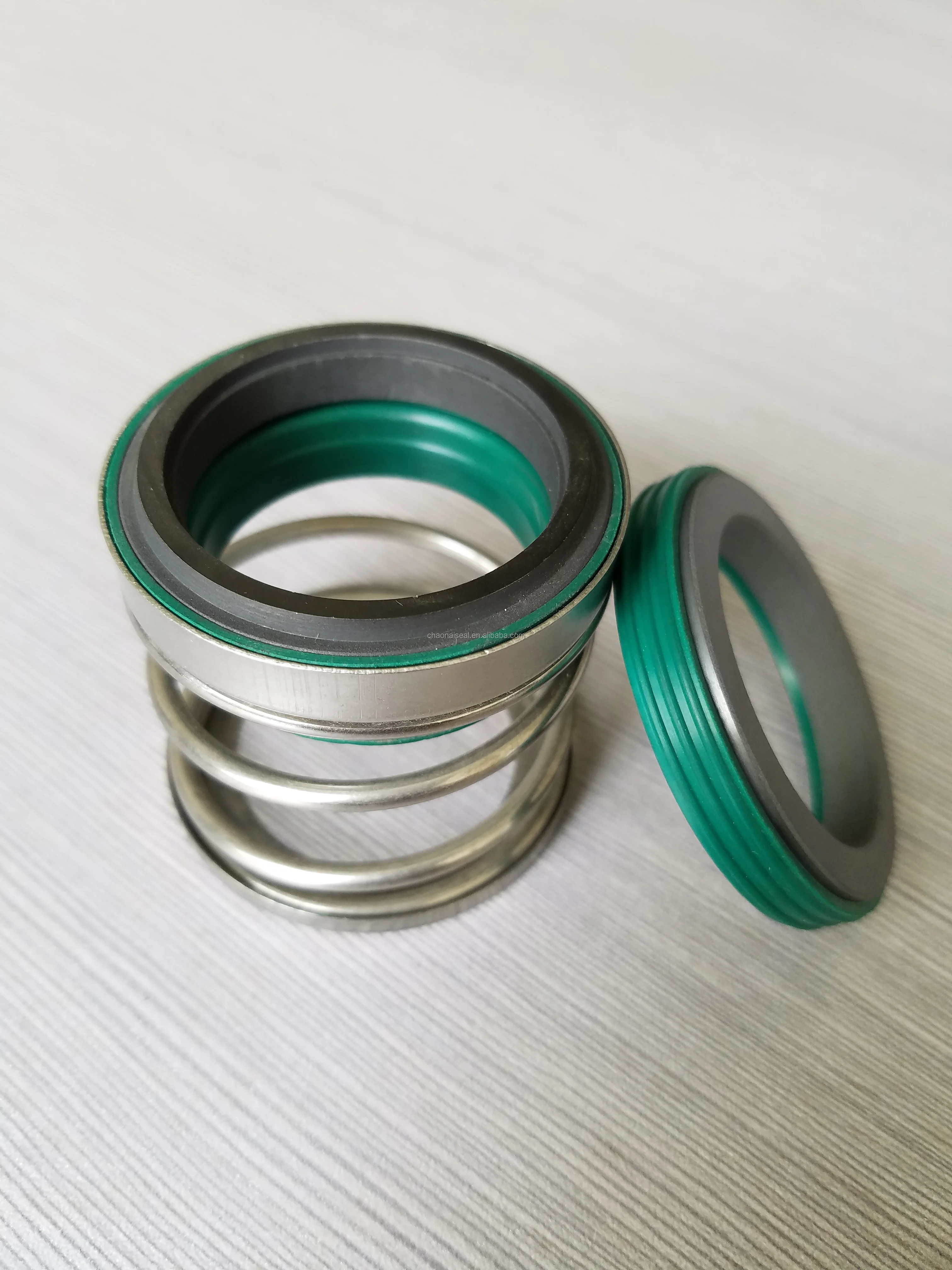

Type 108 mechanical seal:



Operatinglimits

Temperature -20~100°C

Pressure 0.5Mpa

Speeds 5m/sec



Medium

Average corrosive mediums,such as water,oil etc.



Used in the water pumps and agitator pumps



Materials

Rotating ring ( Carbon / Ceramic / Sic )

Stationary ring ( Cermic  / Sic / )

Auxiliary seal (NBR / Viton / ERDM )

Sping &Other parts(SUS304/SUS316/S.S)



Materials should be selected according to operation condition
