12V 1.2Ah MATRIX lead acid battery
- Category: >>>
- Supplier: Shenzhen Matrix Battery Co. Ltd.
Share on (541575530):
Product Overview
Description
Product Description

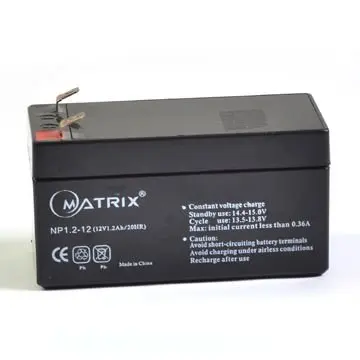

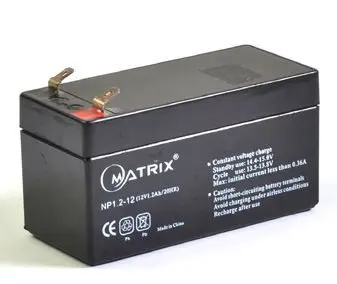

12V 1.2Ah MATRIX lead acid battery
| Nominal Voltage | 12V | |
| Rated capacity(20 hour rate) | 1.2AH | |

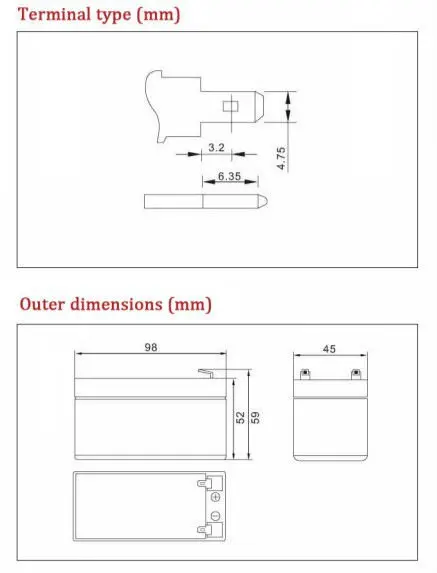

| Dimensions | Length | 97±1mm(3.82inches) |
| Width | 43±1mm(1.69inches) | |
| Height | 51±1mm(2.01inches) | |
| Total Height | 57±1mm(2.24inches) | |
| Weight Approx | 0.56Kg(1.23lbs) | |
| Capacity 25°C(77°F) | 20 hour rate(0.065A, 10.50V) | 1.30AH | |
| 10 hour rate(0.11A, 10.50V) | 1.10AH | ||
| 5 hour rate(0.20A, 10.50V) | 1.00AH | ||
| 1 hour rate(0.75A, 9.60V) | 0.75AH | ||
| Internal Resistance | Full charged Battery at 25 °C (77°F) | 95mΩ | |
| Capacity affected by temperature (20 hour rate) | 40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| -15°C(5°F) | 65% | ||
| Self-Discharge at 25°C(77°F) | Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
| Charge (constant voltage) | Cycle | Initial Charging Current less than 0.36A Voltage14.40-15.00 V | |
| Float | Voltage 13.5-13.80V | ||
| Terminal | T1 | ||
Key Specifications
- Nominal capacity: 1.2Ah 20 hours rate)
- Long service lifespan: 3 to 5 years
- Low self-discharge: lower than 3% of rated capacity per month under normal operating temperature
- ABS case (can be made with flame retardant V0)
- No memory effect after repetitious usage or discharges
- Maintenance-free operation
- Sealed construction and leakproof
- Safety valve regulated system
- Operating in any position
- Deep discharge recovery
- Wide operating temperature range
Applications:
- Telephone switchboards, electric equipments, medical equipments, medical instruments and meters
- Computers and uninterrupted power source (UPS)
- Power transmission and transformer station, switch control and accident lighting
- Fire fighting, safety device and alarm monitoring
- Aviation, spaceflight and power storage
- Automatic office system
- Radio communication system
- Emergency lighting and car and ship starting system
- Traffic and navigation signal lamp
Notice
- Don’t near the hot source and don’t under the sunshine.
- Don’t charge in the sealed container.
- No short circuit. It should be addition charge if you don’t use, and single charge per three months, to avoid irreversible sulfating. The battery should be changed when the battery jar broken or the electrolyte omitted, to avoid acid corrosion.
- Don’t store in the space of acid gas.
- You should be careful and regular check when use the battery. To avoid the battery don’t work. You should change the battery if the capacity is not full or has been damage, especially after one year using.
- Don’t put the battery in the fire, or it will explode.
- Please use cotton cloth to clean, if the battery is broken down and leak electrolyte. Please wash your skin when touch the electrolyte.
- Don’t clean the battery by using the organic solution.
Related Products
Company Information
MATRIX BATTERY is the leading vendor supplying lead acid battery solutions. Our business covers a wide range of fields, including solar energy, wind energy, Telecommunications, electric power, UPS, emergency illumination, security, equipment, cars, motors, electric bicycles, golf carts, forklifts, boats, engineering machines, etc. We are working on providing scientific, high grade, and professional resolving plans to let customers have wonderful battery service in multiple important parts and enrich their modern life
Office

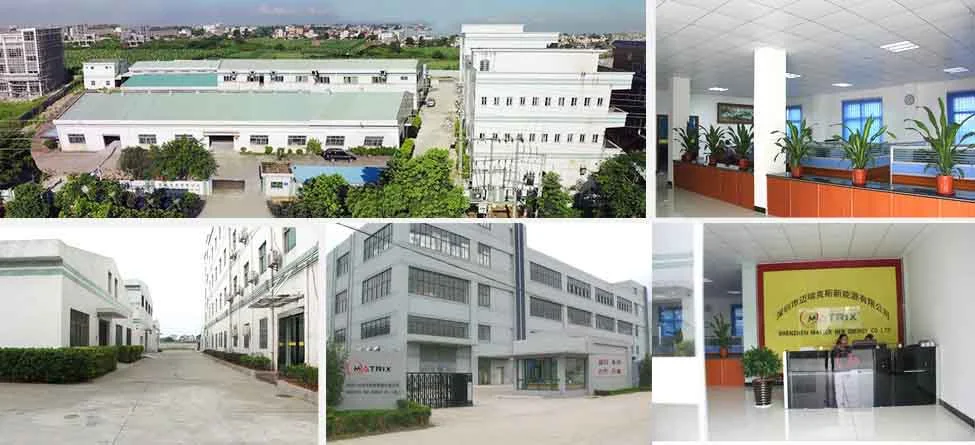

Factory
Certificates
Exhibition
FAQ
Q1: Is it the capacity of your battery real?
A: All of our batteries are real full capacity with top quality, competitive price& long lifecycle.
Q2: What is your payment term?
A: We accept T/T, Western Union.30% deposit in advance, 70% balance pay off against the copy of bill of loading.We'll show you the photos of the products and packages before you pay the balance.
Q3: How to maintain the battery?
A:The battery should be stored in clean, dry, ventilated, dark environment when not using, keep it after full charge, recharge it every 3 months or 6 months.
Q4: Do you accept OEM?
A: We support the OEM service: Pls don't hesitate to tell us your ideas.
Q5: Which certificates do you have?
A: We have CE/ISO/MSDS
Q6: What’s kinds of battery will you provide?
A: We provides a full range of lead acid batteries from 0.3 ah to 3000 ah with the normal voltage are
2V,4V,6V,12V series.widely used in UPS, trolley speaker box, solar energy, scooter, communication,
electric power, emergency lights, security, alarm, buggies, cars, motorcycles and so on.
