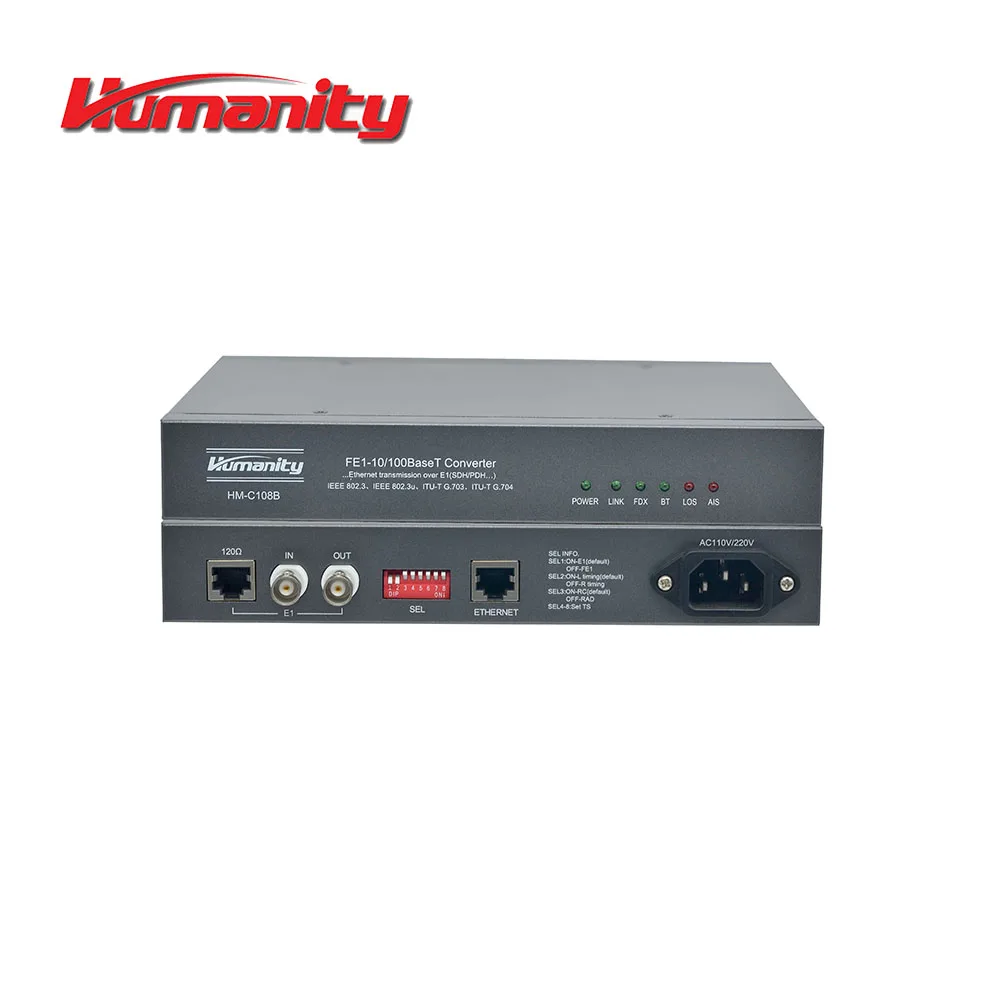

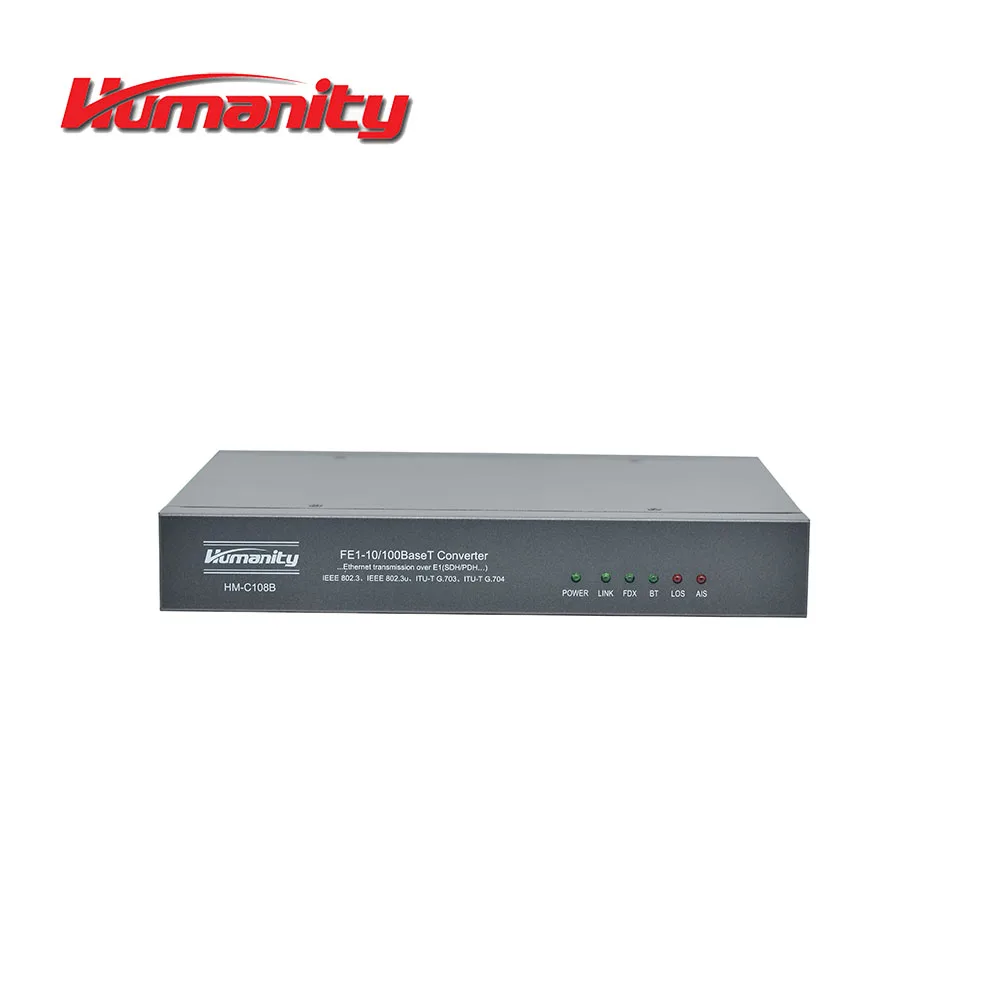

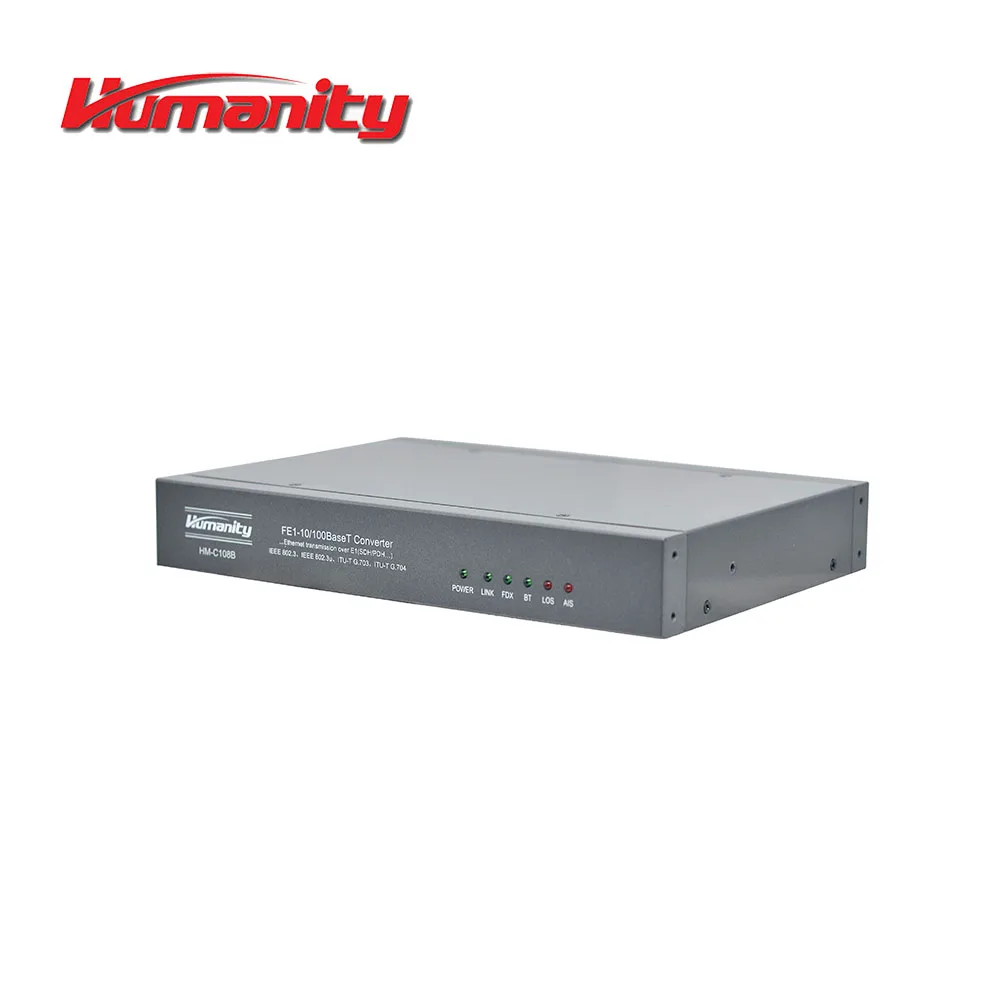

Humanity HM C108B E1 to IP Converter with 64kbps to 2048kbps

Product Overview

Description

Detailed Product Description:

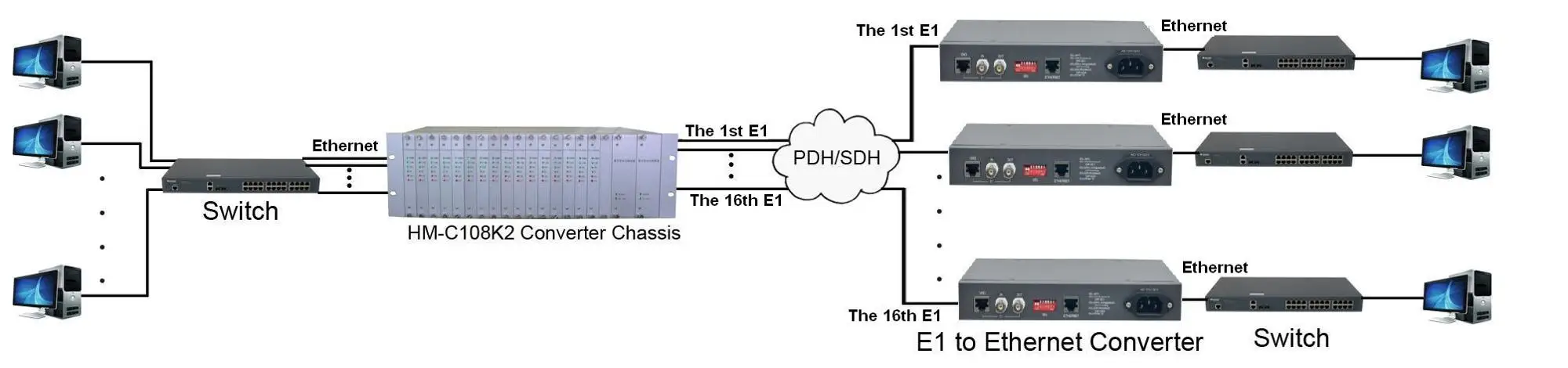

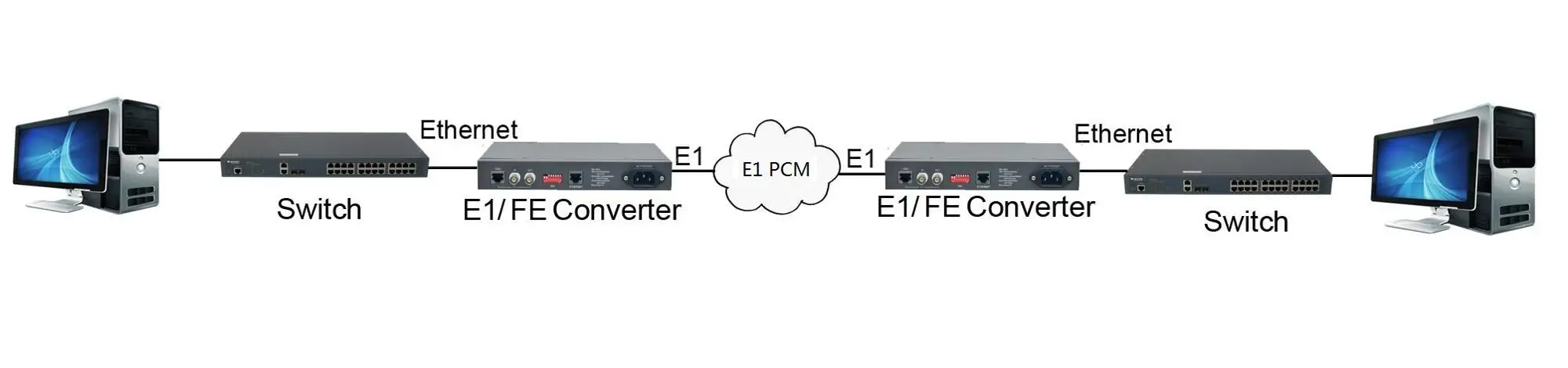

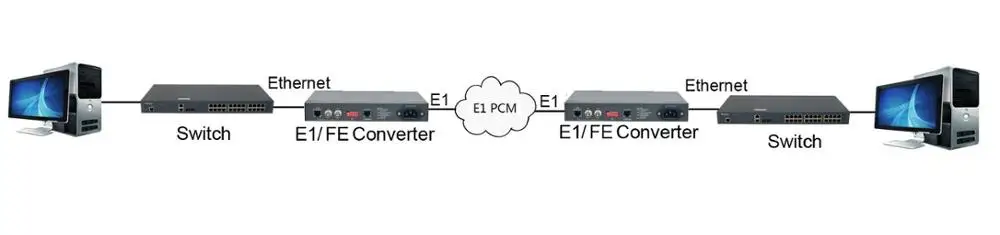

   FE1 to Ethernet interface converter adopts telecom line (E1 or E1 transmitting network, such as PDH, SDH, microwave, etc) to extend Ethernet. It converts Ethernet frame structure to E1 frame structure, and recovers E1 frame structure to Ethernet frame structure at the other side, which enables Ethernet data to transmit in telecom network based on E1. Because it  effectively used the spare bandwidth of telecom providers, it saves the networking cost and improves the efficiency and can be used immediately.



Techonology Characteristic:

• Realizes Ethernet data transmission of transparence or fraction time-slot in E1 line, bandwidth ranges from 64Kbps-2048Kbps
• Support Ethernet auto-negotiation and full/half duplex function
• Support MDI/MDI-X auto-sensed
• Support to transmit the extra long frames regulated by IEEE 802.1Q; support Ethernet switch with VLAN function
• Support data frame filter at local side
• Provide unbalanced 75Ω and balanced 120Ω  E1 interface



Interface Parameters:

E1 Port:

• Comply with ITU-T G.703\\G.704
• Code Pattern: HDB3 code
• Rate: 2048Kbps±50ppm
• Interface: 75Ω BNC / 120Ω RJ45



Ethernet Port:

• Comply with IEEE 802.3(2000) standard
• Rate: 10Mbps or 100Mbps
• Interface:RJ45
