Germany design extruder screw barrel

Product Overview

Description

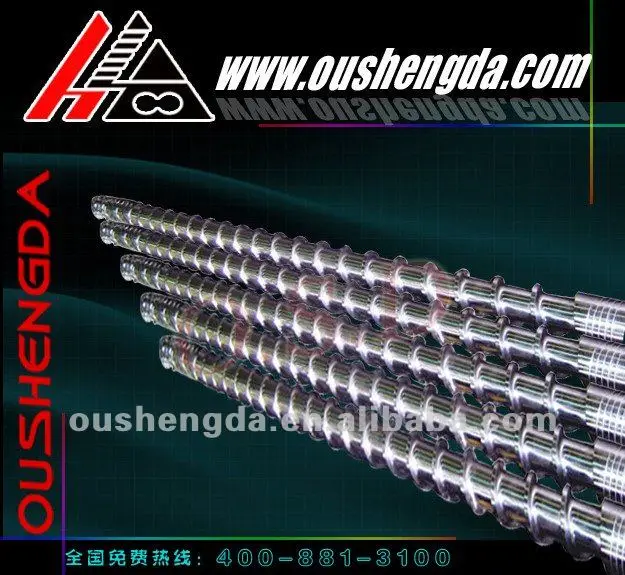

45mm extruder machine screw
Diameter	45mm	Min.Order	1 set
Materials	38CrMoAIA 42CrMo(JIS SCM440) 9Cr18MoV CW6Mo5Cr4V2	Discount	Available
Application	ABS.EVA.PVC Sheet, Profile, Film, Pipe Bag,Tape	Payment  Term	T/T, L/C
Technical  Process	1.Rough Machining 2.Quenching  and Tempering 3.Finish Machining 4.Nitriding 5.Spraying and welding with alloy power 6.Screw polishing	Technological  Parameter	Roughness	Ra 0.4um
			Hardness of Quenching  and Tempering	HB 240-280
			Depth of Nitride Layer	0.5~0.8mm
			Hardness of Nitride	HV 900-1020
			Alignment of Screw	0.015mm
Packing	Wood Case	Port Departure	Ningbo Port
Guarantee	45mm extruder machine screw : more than 2 years



Performance and specification



1)We design our brand, screw and barrel .We make sure the course of processing

smoothly.

2)With more than 20 years' experience in plastic machinery,we have a well quality

control system.Screws are processed by high-precision special NC screw milling

machines to ensure high consistency extruding performance. We try our best to

lower the cost of your budget and supply high quality screw and barrel .The special

design of distribution cainet enlarges thrust bearing and adopts original bearings,

guaranteeing the long service life .

3)According to customer requirements , most reasonable screws and barrrels can

be configured to achieve optimal plasticization and logistic quality.





(
