Needle Punched Cotton Machine
- Category: Carding Machines >>>
- Supplier: Shandong New Haina Machinery Co. Ltd.
Share on (542047878):
Product Overview
Description
1.Simple decription of HN2600 Needle Punched Cotton Machine
1) It is used in high- density and high- spring such as sofa cushion, spring mattress, carpeting, leatherette basic cloth, wall cloth, filtering materials, Non-woven fabrics for engineering etc.
2) It has one set carding machine and two sets needle machines
2. Main Technical of HN2600 Needle Punched Cotton Machine:
Main parameters of HNZ-2600 Needle Punching Machine | ||||
1 | Width of products:2.45m | |||
2 | Thickness of products:5~15mm | |||
3 | Output:7~8m/min 500~1500 g/m2 | |||
4 | Needling Frequency: 100~650times/min | |||
5 | Needling Travel: 35~65mm | |||
6 | Number of Needle: 5000pcs(firsr) 6000(second) | |||
7 | Power: 26.5kw (7.5+7.5+7.5+4) | |||
8 | Cylider of carding machihne: 430 mm | |||
9 | Speed of carding machine:1100 r/min | |||
10 | Size of one machine: 3000mm*700mm*2000mm | |||
11 | Covering area: 10m*4m*3.5m | |||
12 | Weight about 4800 kg | |||
13 | Spare Parts : 3 set motor / one set fan / one set control cabinet/chute feed | |||
14 | Machine: One set carding machine + two set needle loom | |||

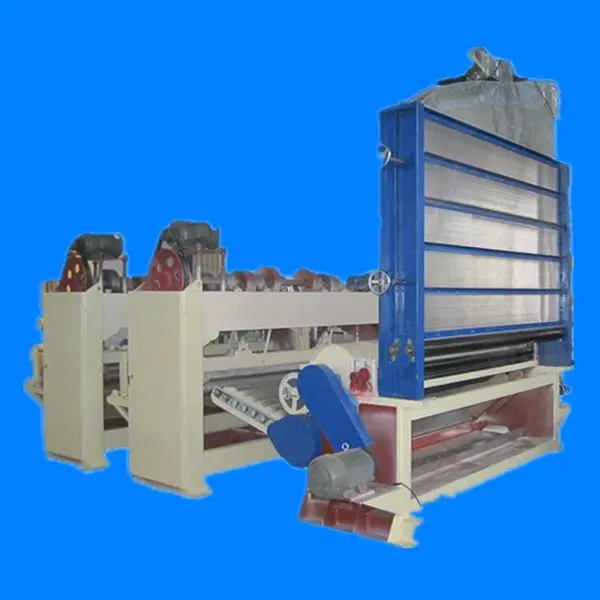

3.Picture of HN2600 Needle Punched Cotton Machine:
