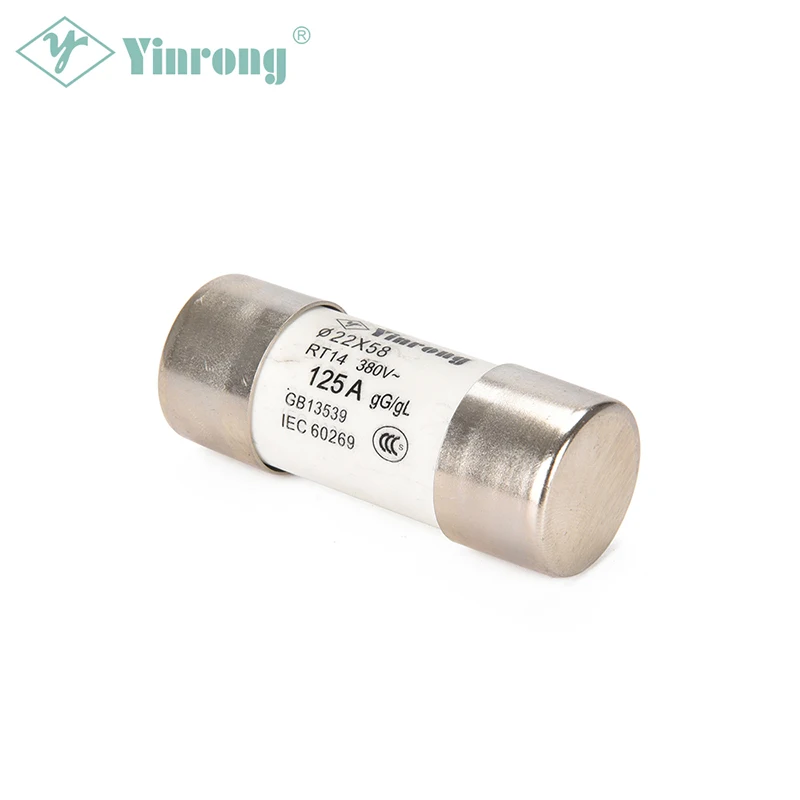

Двухэлементные предохранители с задержкой времени 22x58

Name: Двухэлементные предохранители с задержкой времени 22x58
SKU: 542085590
Price: 0,47 $ USD
Availability: InStock

Price:0,47 $

Quantity:

Product Description

Model	Rated Voltage	Rated current Specifications	Overall dimension

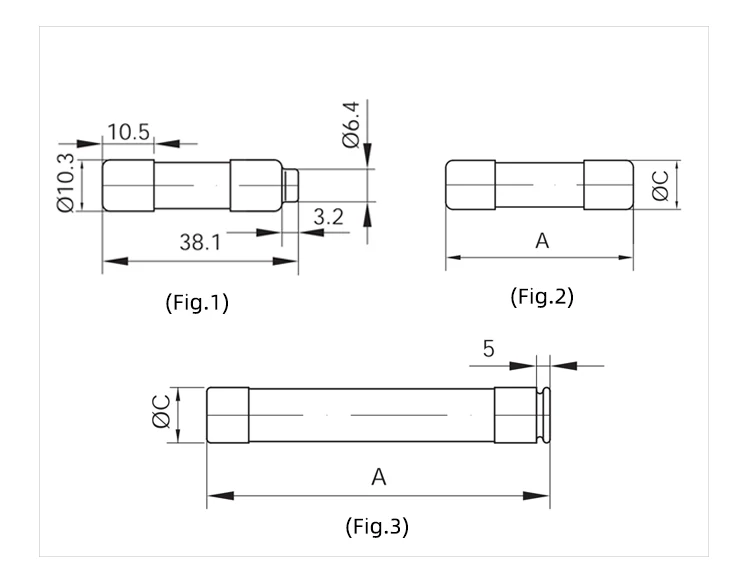

Model	Rated Voltage	Rated current Specifications	ΦC	A	Fig
10.3*38T	380/500	32	10.3	38T	Fig.1
5*20	250	13	5	20	Fig.2
5*25	250	16	5	25
6*20	250	16	6	20
6.3*23	250	20	6.3	23
6.3*25	250	20	6.3	25
6.3*31.5	250/500	20	8.5	31.5
8.5*23	250	25	8.5	23
8.5*31.5	250/500	25	8.5	31.5
8.5*36	380/500	32	10	36
10*30	380/500	32	10.3	30
10.3*28.5	250	32	10.3	28.5
10.3*31.5	250/500	32	10.3	31.5
10.3*34	250/500	32	10.3	34
10.3*38	380/500	32	10.3	38
10.3*57	690	32	10.3	57
14.3*38	250/500	63	14.3	38
14.3*45	380/500	63	14.3	45
14.3*51	380/500	63	14.3	51
14.3*67	690	50	14.3	67
15*50	380/500	50	15	50
16.7*35	250/500	63	16.7	35
18*37	250/500	63	18	37
18*50	690	63	18	50
20.5*40	250/500	63	20.5	40
20.5*76	690	63	20.5	76
20.5*114	690	63	20.5	114
20.5*127	690	32	20.5	127
22.2*58	380/500	125	22.2	58
27*60	690	80	27	60
27*139	690	63	27	139
27*147	690	63	27	147
30*57	690	125	30	57
14.3*51H	380/500	63	14.3	51H	Fig.3
20.5*76H	690	63	20.5	76H
20.5*114H	690	63	20.5	114H
20.5*127H	690	32	20.5	127H
22.2*58H	690	125	22.2	58H
27*139H	690	63	27	139H
27*147H	690	63	27	147H
