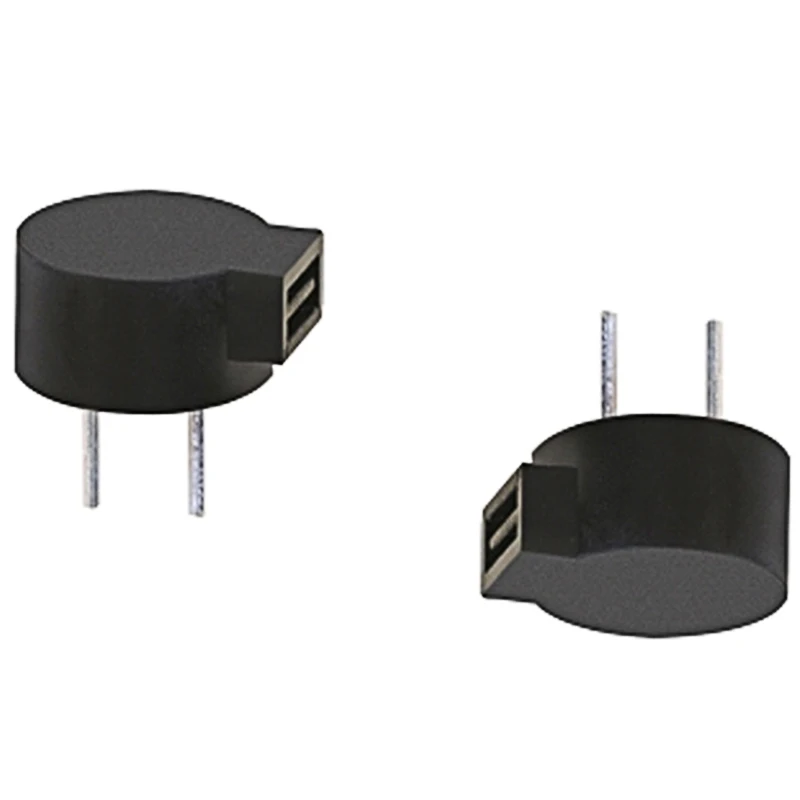

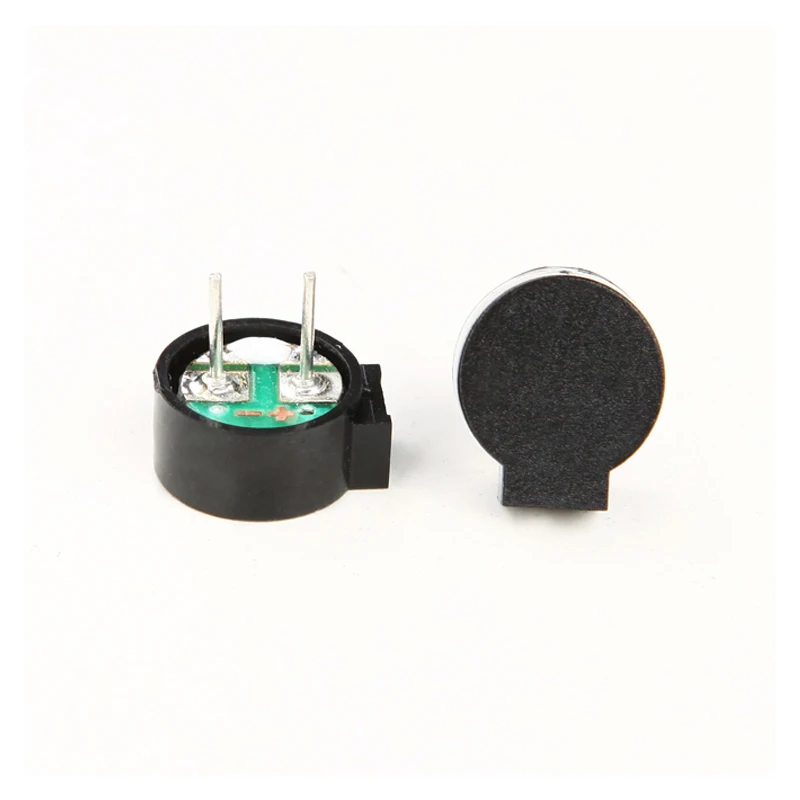

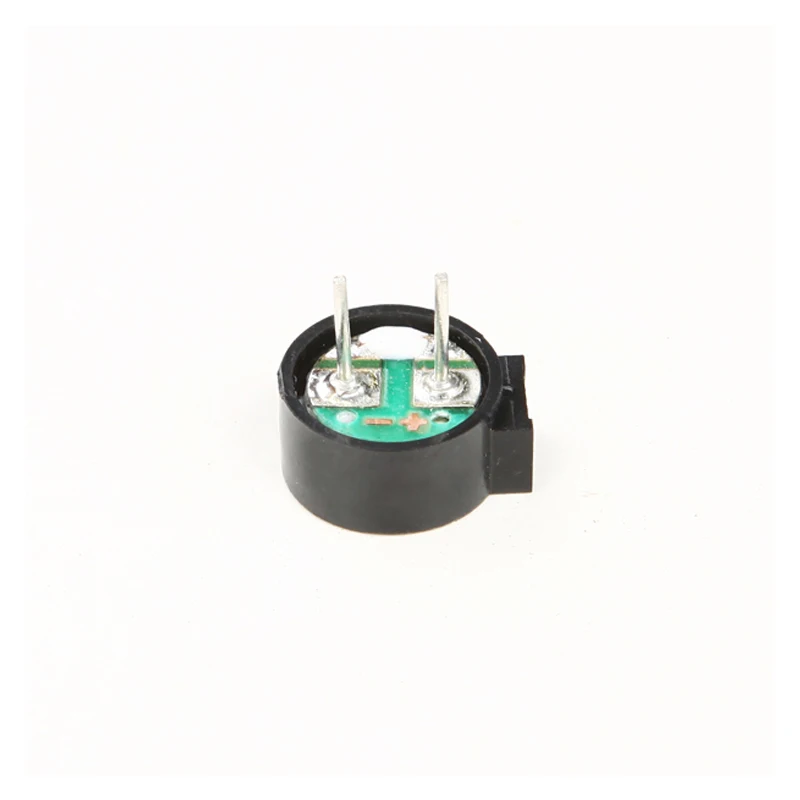

mini magnetic transducer make a sound from side Factory Supply HY09 5 magnetic angle sensor electromagnetic field transducer

Product Overview

Description



Type	Unit	HY09-5APD	HY09-5BPD	HY09-5CPD
Rated Voltage	V	1.5	3.5	5
Operating Voltage	V	1-3	2-4	4-6
*Rated Current(MAX)	mA	80	60	60
*Min Sound Output at 10 cm	dB	85	85	85
Coil Resistance	Ω	5.5±1	25±3	40±4
*Resonant Frequency	Hz	2731
Operating Temperature	°C	-20~+70
Storage Temperature	°C	-30~+80
Housing Material		NORYL
Weight	g	1.0

Company Information





Interview







Established in 1994, Huayu Electronics Co.,Ltd ranks among the top line acoustic electronics suppliers in china mainland. HYDZ brand is famous in the industrial in China.  We have the first-class equipment and technology, and the quality of our goods is the best in Chinese business line. We have set up sales branch companies in many big cities in China. Our products are also widely sold to Southeast-east Asia, North-Amercia, Middle-east and so on. The best quality, the competitive price and the timely shipment are our superiority.

Your requirement showed as specification and drawing sheet is welcome. We can develope upon your requirement. And samples are FREE available.

We had constantly been aiming at providing customers qualified and costsaved products, helping clients get the maximum benifit.







Factory Around







workshops













SMT machineroom





Products serials















Certification
