stainless steel wire mesh (filter grading sheet) honest factory, best price

Product Overview

Description

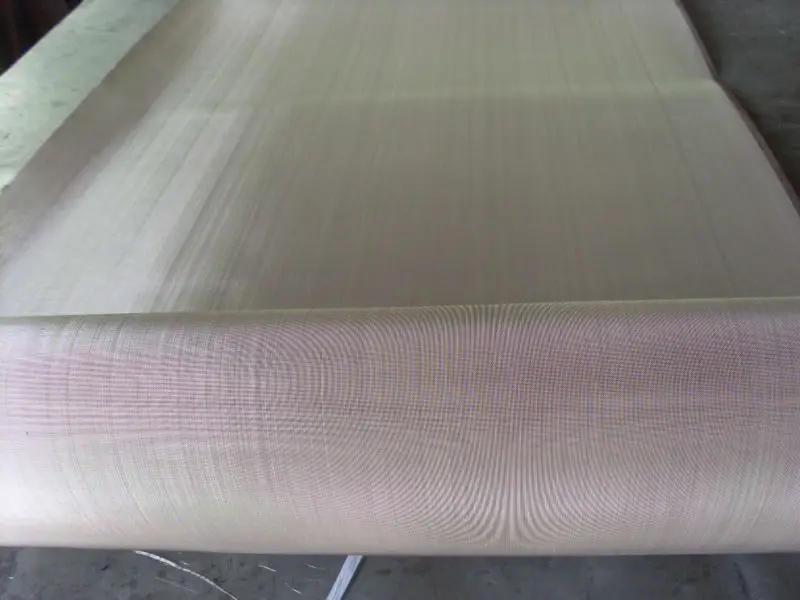

stainless steel wire mesh honest factory







Specifications and Dimensions





All wire mesh is made from 304L (low carbon 304) Stainless Steel, except the 400 mesh, which is mde from 316 Stainless Steel. Mesh count is the number of wires per inch, Nominal Aperture is the average hole size.





Mesh Count	Nominal Aperture (mm)	Wire Diameter	Open Area (%)	Weight kg/m²
4	5.45	0.9mm (20 SWG)	74	1.61
10	1.98	0.56mm (24 SWG)	61	1.51
20	0.915	355µm (28 SWG)	52	1.25
30	0.567	280µm (32 SWG)	45	1.17
40	0.411	224µm (34 SWG)	42	1.00
60	0.263	160µm (37 SWG)	39	0.76
80	0.178	140µm (39 SWG)	31	0.78
120	0.122	90µm (43 SWG)	33	0.48
200	0.075	53µm (47 SWG)	34	0.28
400	0.035	28µm (49 SWG)	31	0.16





Stainless Steel Crimped Wire Mesh , pre-crimped wire mesh , steel sieve

0.5mesh-8mesh

Width  according to customer requirement







Application:





Screen or Filter
stainless steel wire,balck steel,white steel wire,aluminum alloy.
Original  manufacturer





Standard:GB/5330-2003

                 GB/T18850-2002

                 GB/T7860-2000
