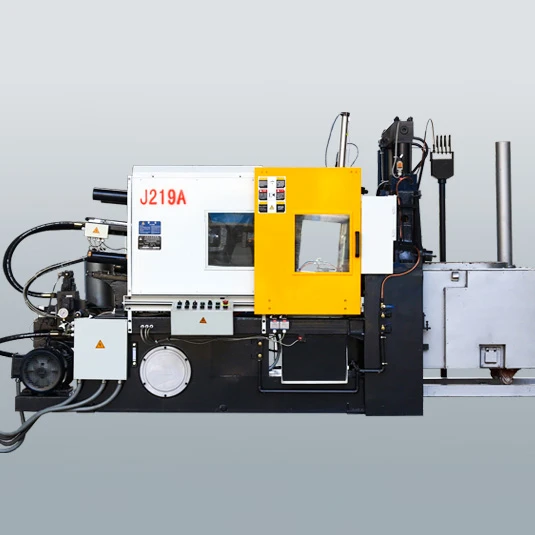

88Ton/880KN hot chamber zamak die casting machine
- Category: >>>
- Supplier: Ningbo Dongfang Die-Casting Machine Tool Co. Ltd.
Share on (543704414):
Product Overview
Description

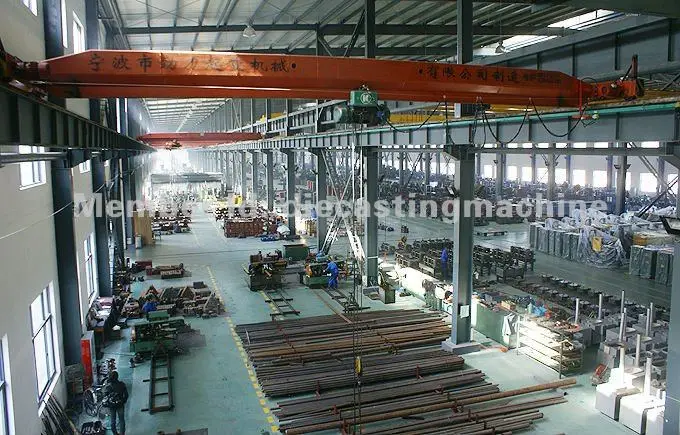

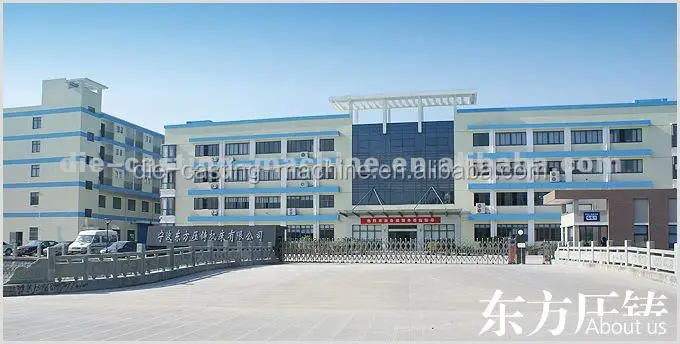

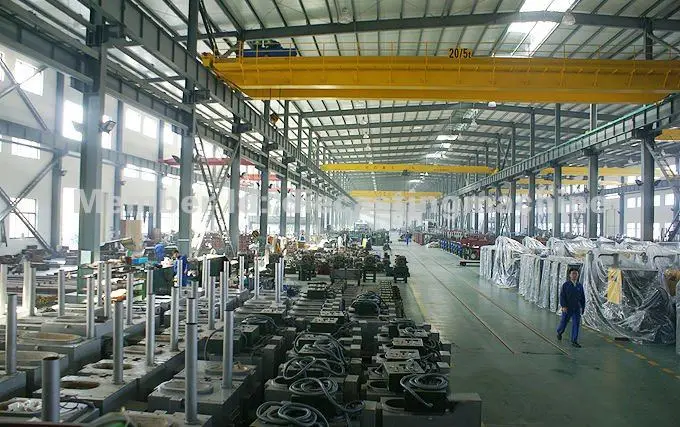

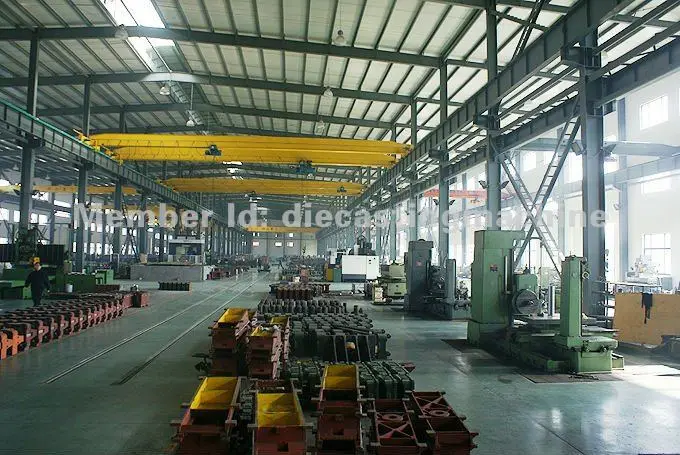

Our Company
In Ningbo Dongfang Die-casting machine Tool Co.,Ltd., the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 30 years, we always have perisistently pursue to provide perfect cold/ hot chamber die cast machine and sincere service. We are devoted ourselves to higher and better die cast technology in die casting are in China.
* With a history of over 37 years * Factory Area : 40,000 square meters
*Employees : More than 500 *Production Capacity : 10,00-sets yearly capacity
*Company owed Tech & Research center * Main Machines: 100sets
Hot chamber die cast machine
We can supply hot chamber die casting machine with the die locking force from 160kN to 1900kN. We do best in the manufacturing process from the material,including forging steel and iron plates, to manchining, japanning and assembly.

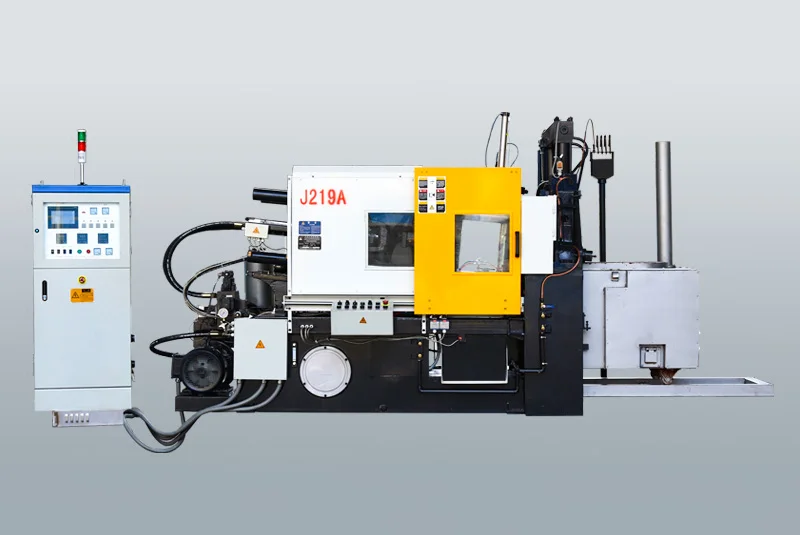

Features and applications for J219A Hot chamber Die-casting machine
1.880kN/88T Hot Chamber Die- Casting Machine
2.Sutiable for zinc and lead alloy
3.PLC and person-machine interface
4.3-moment locking module to protect module and die
5.3-pot automatic lift structure to keep more balance and convenient
6.Constant and effective Hydraulic boosting to make injection rate over 6m/s
The machine could process low melting point metal of colored alloy of zinc and lead, which are widely used in automobile and motorcycle parts, instruments, household hardware and home appliances industry.
Hydraulic pressure is controlled by flow and pressure proportion value, speed and pressure can be regulated, Hydraulic boosting is constant and effective, injection rate over 6m/s.3-pot automatic lift structure make module lift more balanced and convenient.

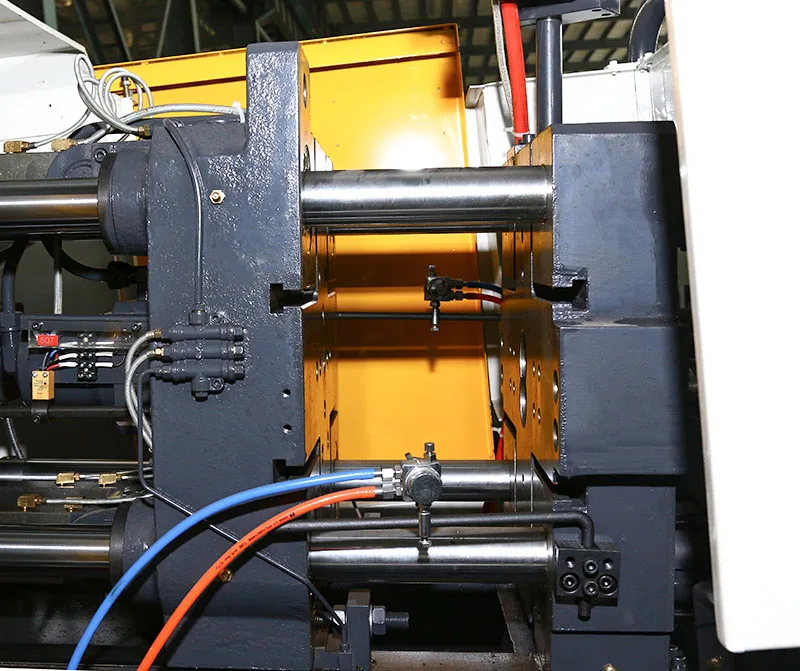

The machine adopt 3-moment locking module, low pressure effectually protect module and die.

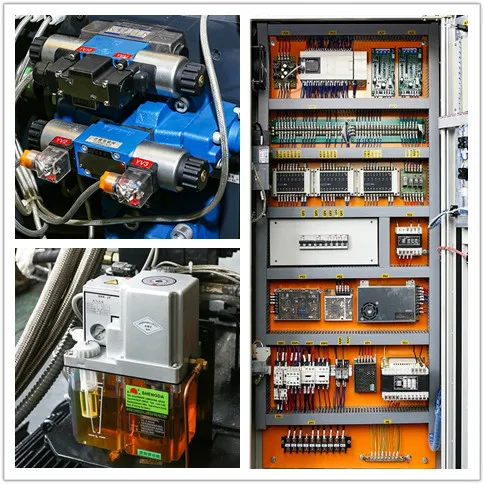

The machine is equipped with electronics and hydraulic pressed parts of import. The machine it is controlled by program which is stable and reliable.
The specification of J219A
| The project | unit | J219A |
| Die locking force | kN | 900 |
| Stroke of moving platen | mm | 270 |
| Inner space between the bars(HxV) | mm | 360x360 |
| Thickness of die block (HxV) | mm | 120x360 |
| Injection force | kN | 75 |
| Injection stroke | mm | 130 |
| Ejection force | kN | 60 |
| Ejection stroke | mm | 60 |
| Diameter of shot sleeve | mm | 50 |
| Max projecting area of casting | cm2 | 236 |
| Working pressure of vane pump | MPa | 12 |
| Motor power | kW | 11 |
| Dosage of fluid metal per shot (zinc) | kG | 1.6 |
| Effective volume of crucible(zinc) | kG | 350 |
| Oil consumption of burner | kg/h | 1.5-6.0 |
| Volume of oil tank | kG | 250 |
| Machine weight | kG | 4700 |
| Overall dimensions (L*W*H) | mm | 4300x1800x2250 |

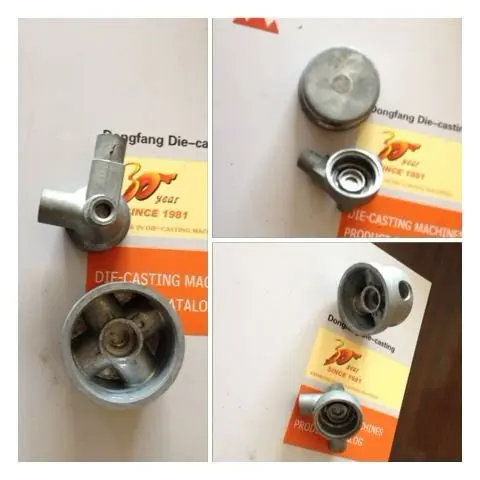

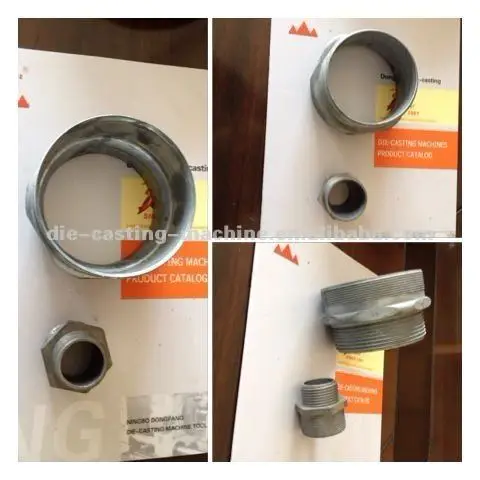

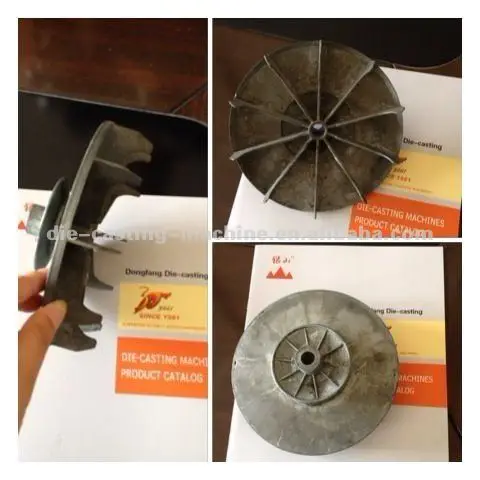

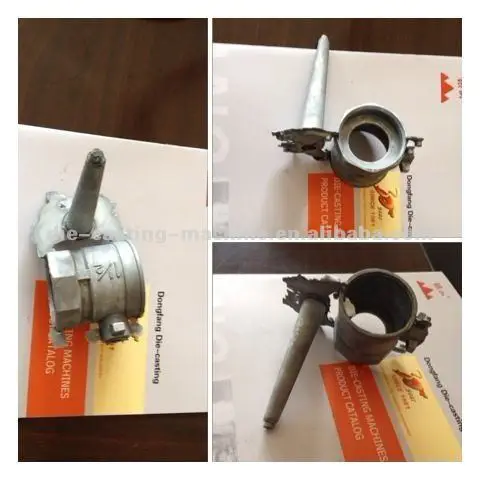

Product samples for reference
