300w 10kw vertical axis wind turbine with CE

Product Overview

Description

300w-10kw vertical axis wind turbine with CE

The vertical axis wind turbine features a unique outer rotor and coreless structure, and the rare earth magnet generates a strong magnetic field. Besides, the multipole design can generate high voltage even at minimum rotating speeds and realize high-power output.



1.  Starting rotation at the lowest wind speed of 1m/s

2.  the ability to catch the wind by 360 degree based on the principle of aerodynamics, streamline shape as wings of aero plane

3.  security wind speed 60 m/s

4.  noise-free rotation

5.  aluminum alloy integral extrusion molding achieves both high, strength and light weight

6.  will not be damaged, broken into fragments, or burned even in the case of a lighting strike

7.  recyclable materials are used

8.  the blades do not endanger birds

9.  a good resistance to corrosion

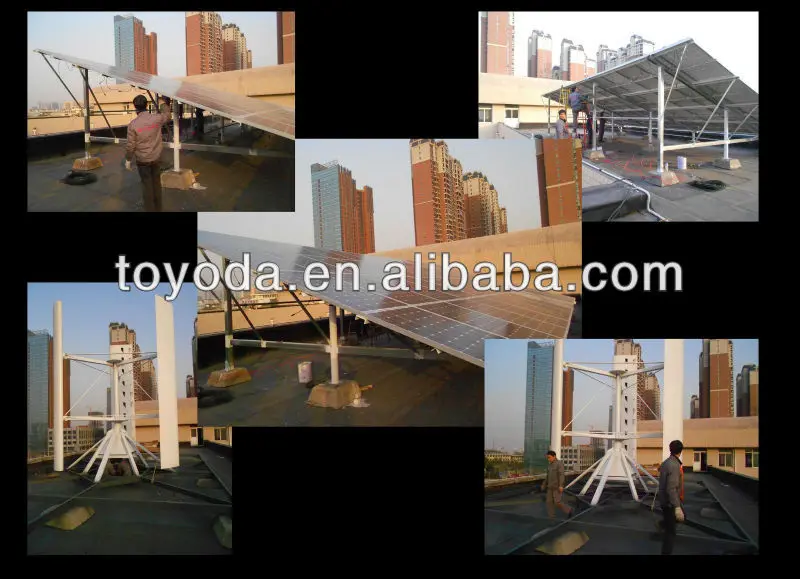

10. can be installed near facilities, such as residences, parks, and schools; on building rooftops; and streets and pedestrian street, etc.

The specification of vertical wind turbine

With steady power output, it is widely used ranging from low-wind area to high-wind area.



Model		TYD250-300	TYD350-600	TYD350A-1000	TYD450-2000
Power		300w	600w	1000w	2000w
Performance	Start-Up Wind Speed	1.0m/s	1.0m/s	1.5m/s	1.5m/s
	Cut-In Wind Speed	1.5m/s	1.5m/s	2m/s	2m/s
	Rated Output Wind Speed	12.0m/s	12.0m/s	12.0m/s	12.0m/s
	Cut-Out Wind Speed	25.0m/s	25.0m/s	25.0m/s	25.0m/s
	Subsisitence Wind Speed	60m/s	60m/s	60m/s	60m/s
Blade	Length	2m	2.4m	3.5m	5m
	Diameter	1m	1m	1.2m	1.5m
	Number Of Blades	3pcs	3pcs	3pcs	3pcs
	Cover Material	Erosion Resistant Aluminum	Erosion Resistant Aluminum	Erosion Resistant Aluminum	Erosion Resistant Aluminum
Generator	Model	Coreless Multipolar Rare-Earth Permant-Magnet AC Generator	Coreless Multipolar Rare-Earth Permant-Magnet AC Generator	Coreless Multipolar Rare-Earth Permant-Magnet AC Generator	Coreless Multipolar Rare-Earth Permant-Magnet AC Generator
	Driving Mode	Direct	Direct	Direct	Direct
	Rated Speed	300rpm	300rpm	230rpm	180rpm
	Rated Output	300w	600w	1000w	2000w
	Rated Voltage DC	12V/24V	12V/24V	24V/48V	48V/96V/120V
	Cover Material	Erosion Resistant Aluminum	Erosion Resistant Aluminum	Erosion Resistant Aluminum	Erosion Resistant Aluminum









If you are interested in them, please contact with us.
