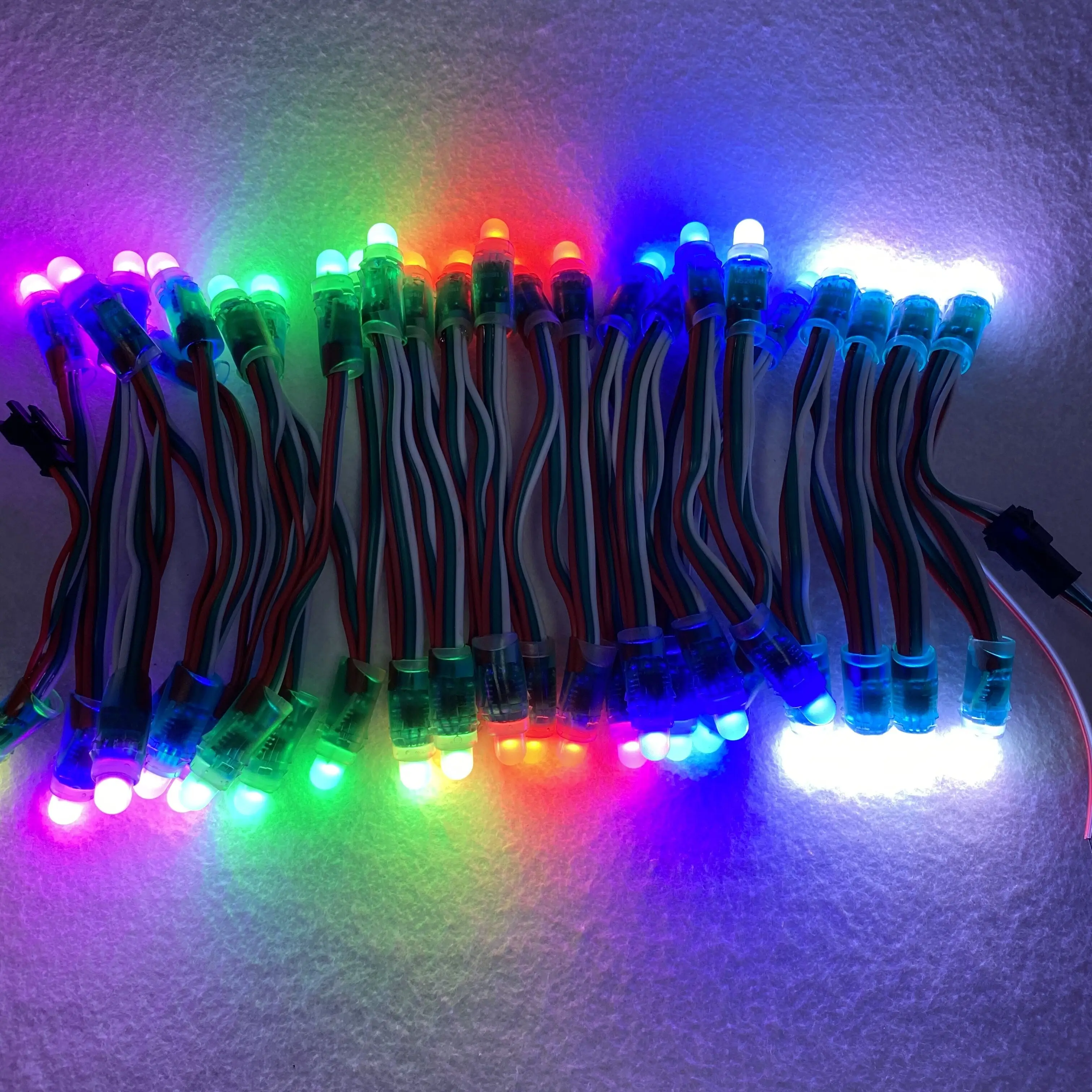

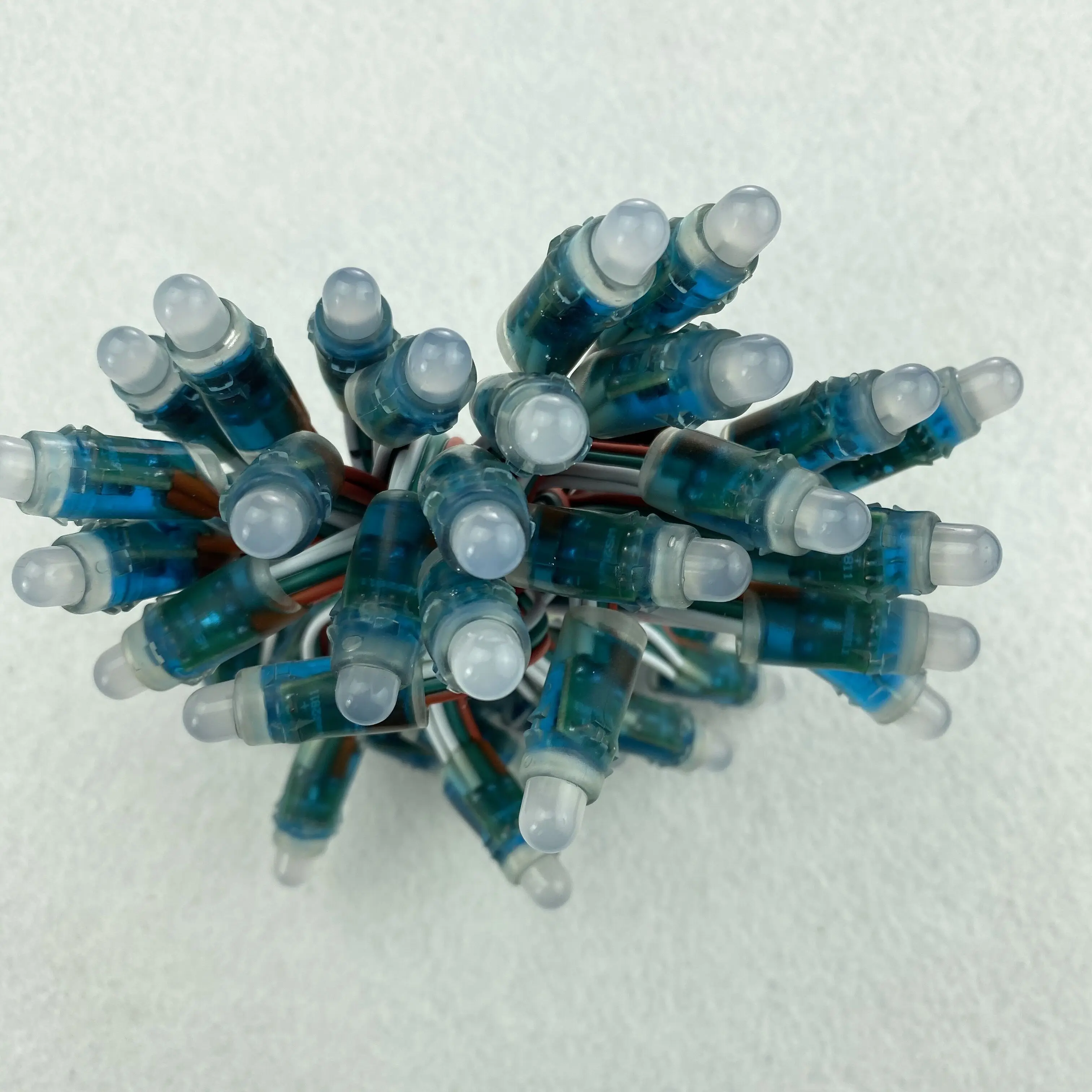

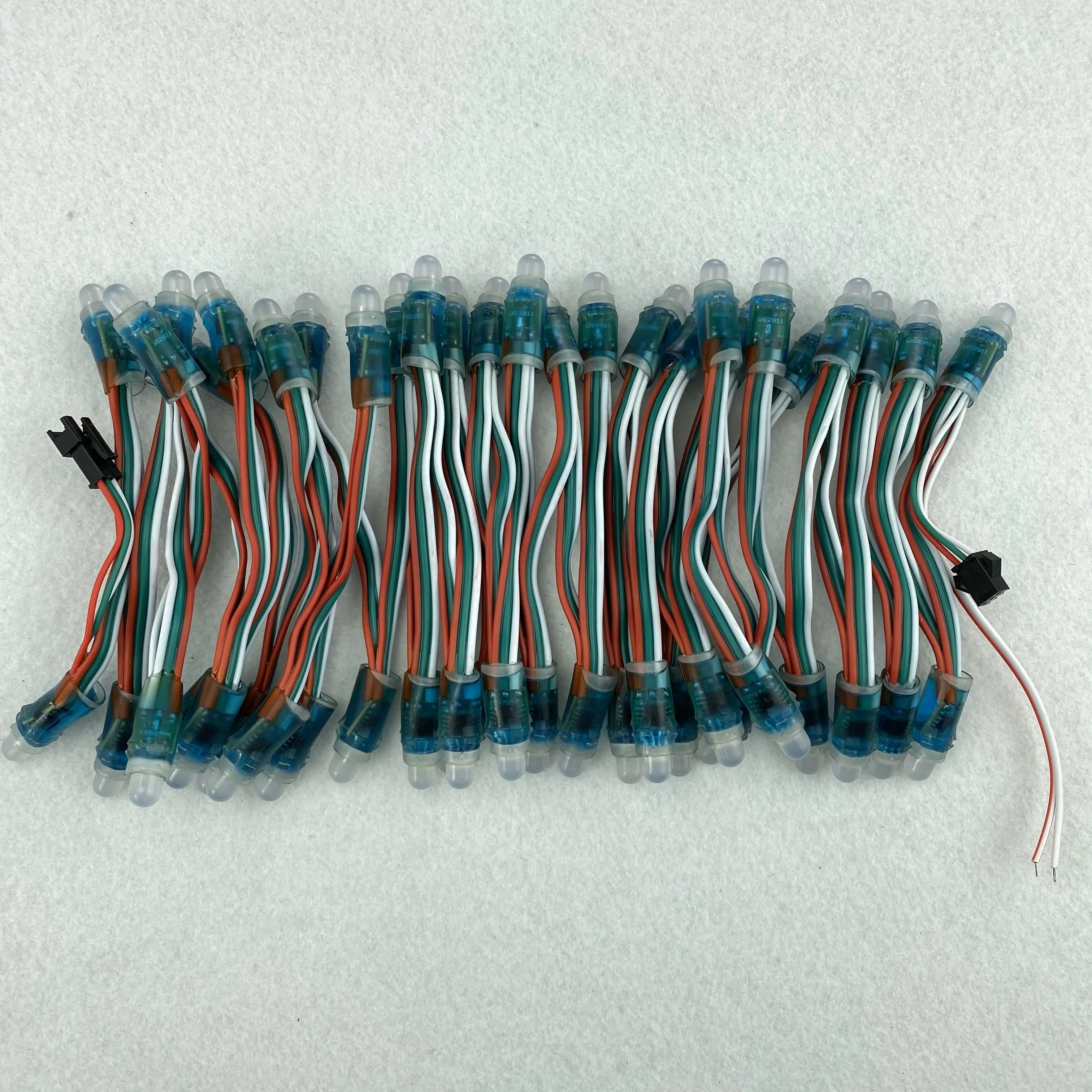

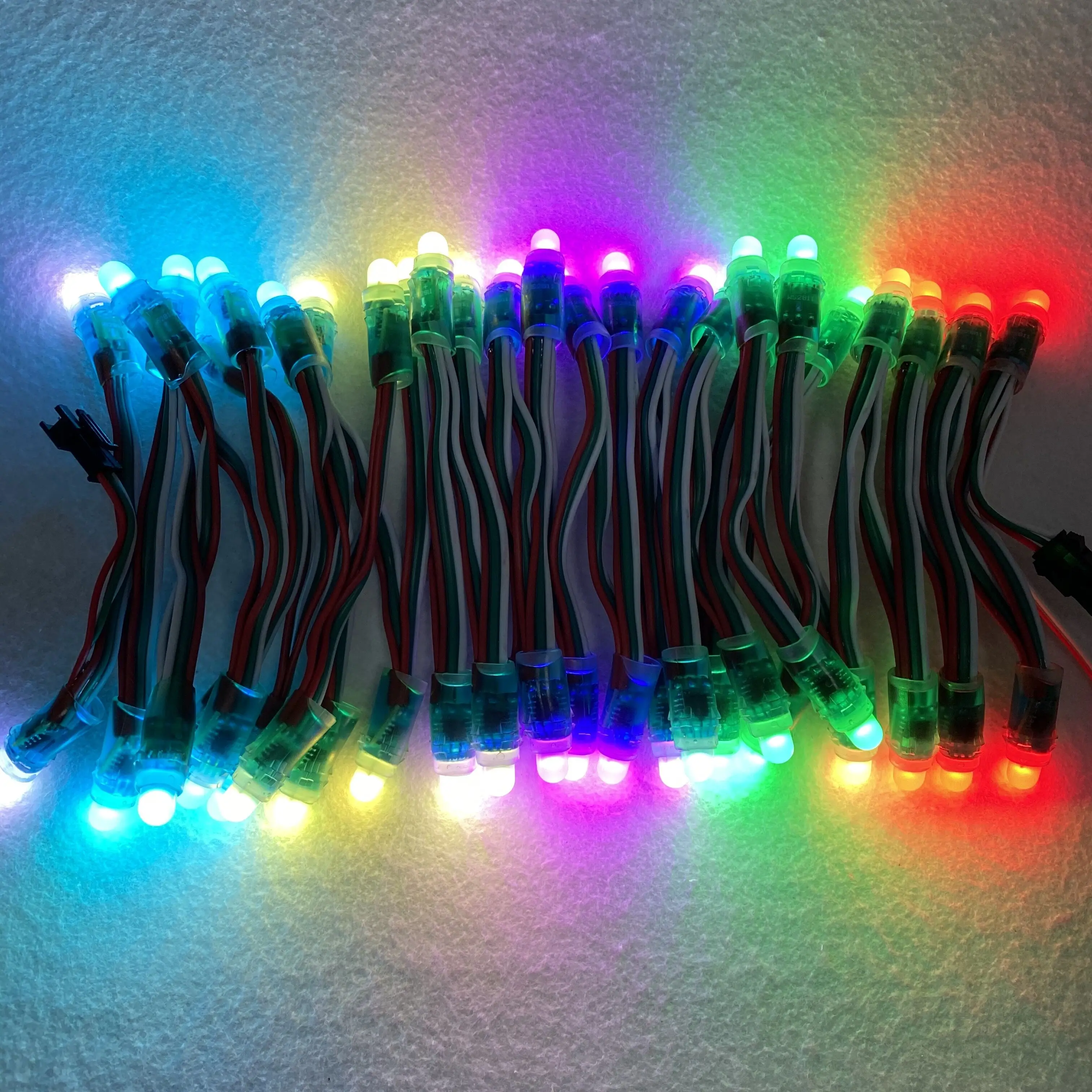

DC5V 50nodes/string 3inches(7.6cm) spacing WS2811 addreable LED pixel string light,IP68;RGB full color;24AWG wire

Product Overview

Description

1. Adpots high quality 8mm 0.3w round hat RGB LED as lighting source.

2. With good proection level. can achieve IP68.

3. each module as one pixel, takes 3 dmx channels,white strobe color,can be controlled individually,

4. It is easy installation, open hole.

5;good waterproof type,IP68 rated,epoxy resin filled

6;using the strong cabe,with good cold resistance ability

7:works with dmx matrix controller,or SPI pixel controll,on-line controller.etc

Specification:

Part No	RA-2811-5V-50-IP68-24AWG
Color	full rgb color,24bit,256 gray scale
LED Qty	1pcs 8mm round hat 0.24w rgb led with 4pin common anode
Input Volt	DC5V
Max current	48MA
Max Power	0.24W
Driver method	Constant current circuit
Dimension	12mm diameter(open hole)
Viewing angle	100-120degree
Protection Level	IP68
Certification	CE and RoHS
Standard connection	50pcs module per string
Standard wire length	3 inches(7.6cm) 24AWG wire
Housing	transparent PVC
Fixed way	open hole
Lifespan	35000 hours
Warranty	1 year
Operation temperature	-40-50
Store temperature	-50-60

Applications:

lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path
and contour marking; etc.
They can be a good choice for advertising,Led screen, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc

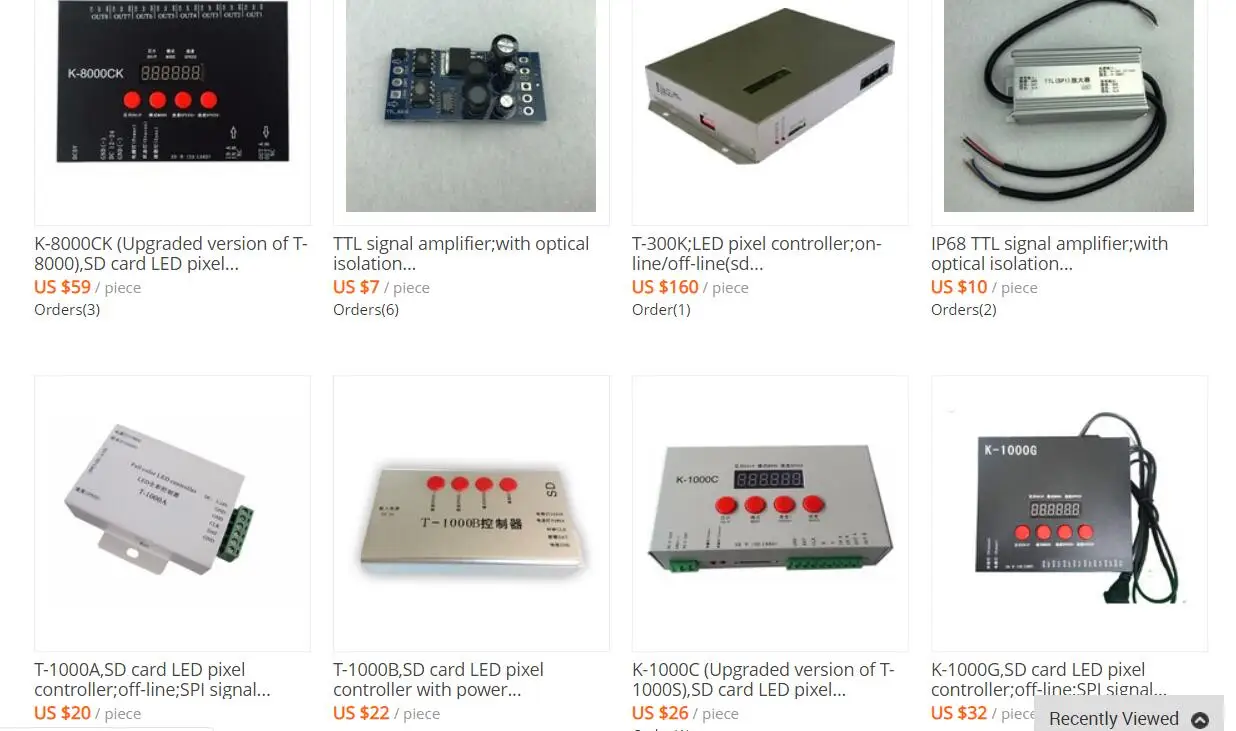

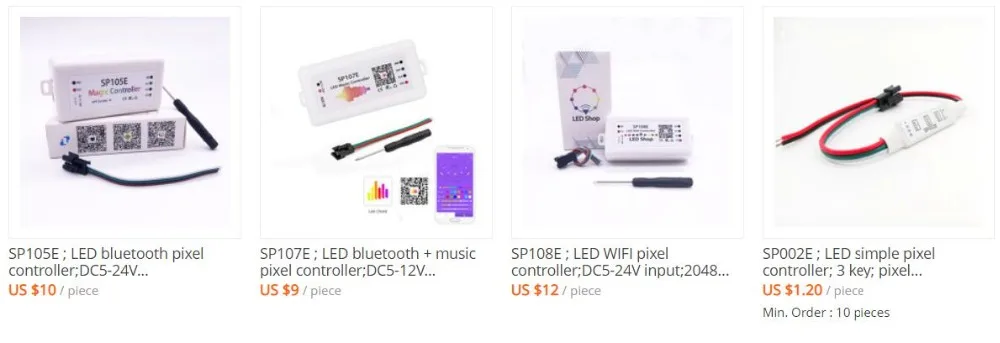

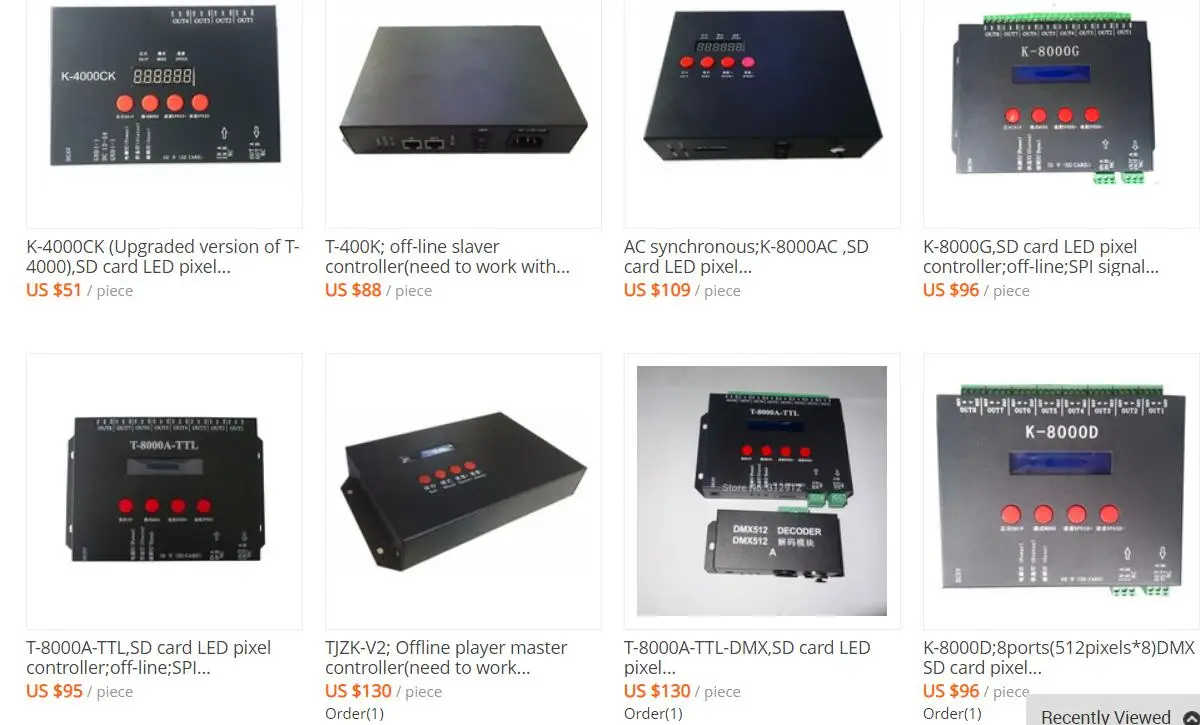

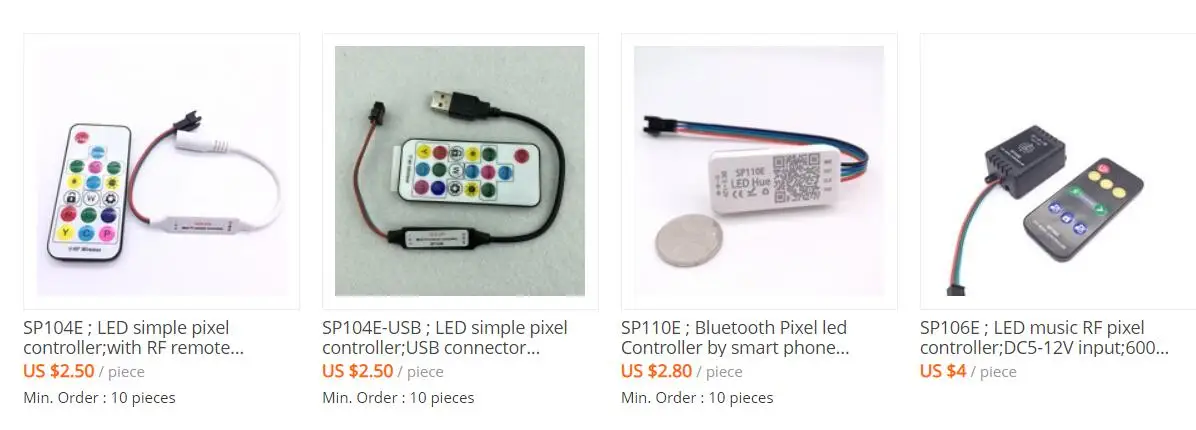

recomended controllers:
