XTL Good performance Electric Vaccum metal coating ceramic insulator,YOUR CHOICE IS BEST ANSWER FOR US!!!

Product Overview

Description

Good performance Electric Vaccum metal coating ceramic insulator,YOUR CHOICE IS BEST ANSWER FOR US!!!



 ceramic insulator

1.High mechanical strength.

2.heat resistance ceramic insulator .

3.metal dual function.

4.Good price.



Product description of the ceramic insulator:



1. Raw materialof ceramic body: 95% alumina oxide ceramics.



2. Ceramic body and metal layer with the degree of thermal expansion coefficient, and good for thermal shock performance.



3. Continuous dense layer of metalized coating, no spots, no cracks, no bubbles or be oxidized.



4. Outer layer and the solid metal have a good binding.



5. Dense ceramic body, no deformation, no cracks.



6.  Metallized ceramic prototype to high volume production capacity .

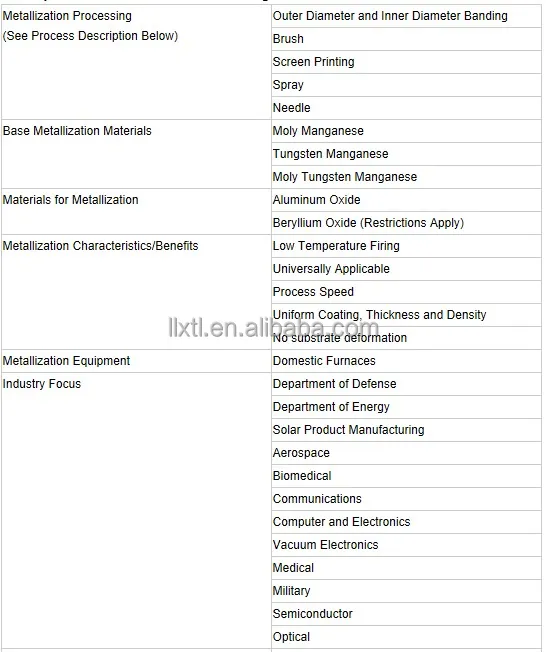

Metallized types (optional) of the ceramic insulator:

Ceramic + Mn-Mo plating  Ceramic + Ni plating  Ceramic + AG plating  Ceramic + Au plating  Ceramic + Sn plating  Ceramic + AG+Ni+Au or Sn plating.

Applications about the ceramic insulator:

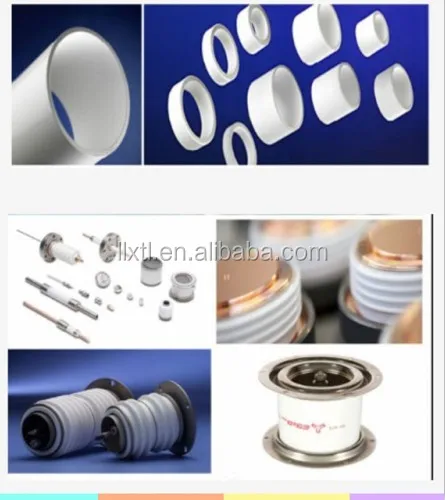

  Feed-through insulators, Headers, High-power receptacles, Insulating discs, Insulator rings and cylinders, Precipitator products, Power switches, Traveling wave tubes, Vacuum interrupters, Windows, Power grid tubes, X-ray tubes  .

Item	99alumina	95alumina	92alumina	unit symbol
Bulk Density	3.85	3.65	3.6	g/cm3≥
Flexural Strength	350	300	280	MPa≥
Max Use Temperature	1700	1500	1400	°C≥
Volume Resistivity	1015	1014	1014	Ω·cm 20°C

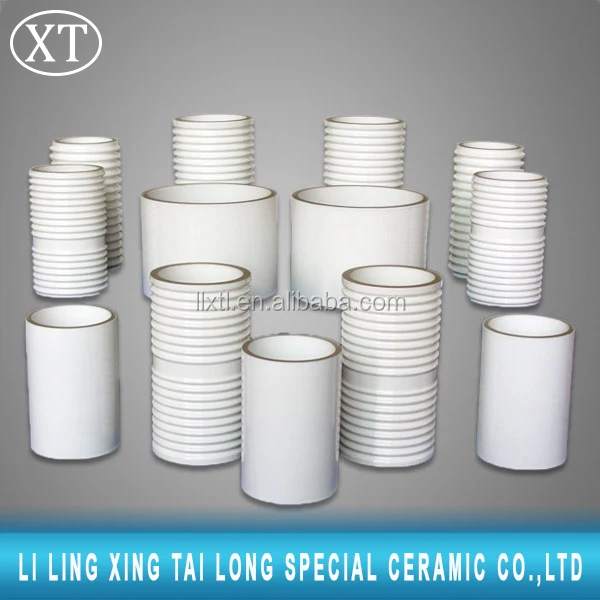

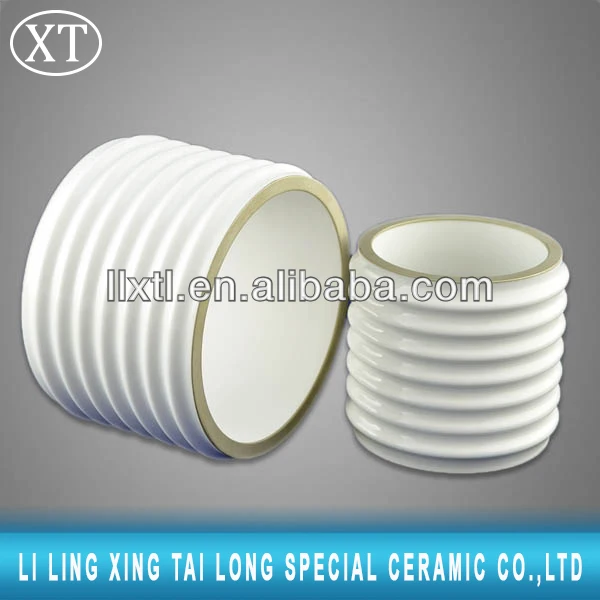

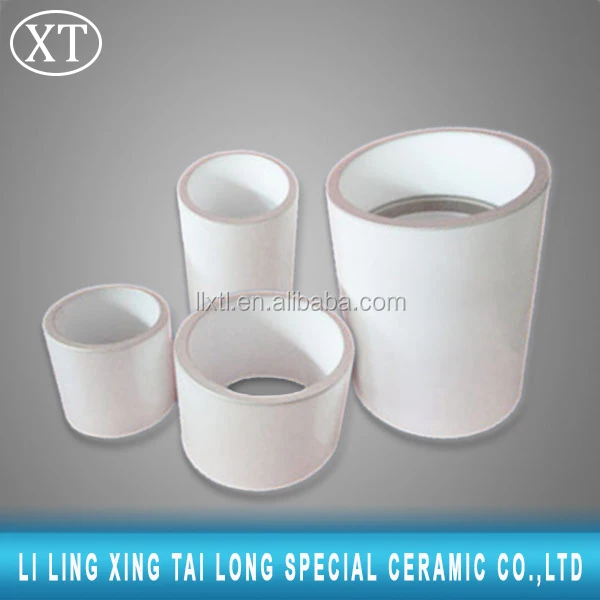

The sample pictures of ceramic insulator for your reference:

Package of the ceramic insulator: Wooden case and wooden pallet, or pack as customer's requirement.

Delivery time of the ceramic insulator: depend on distance,  usually 20 days to 50days after deposit.

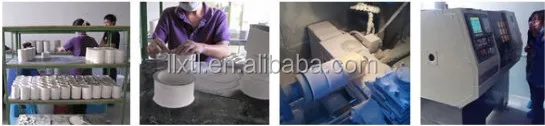

Liling Xingtailong  is a modern enterprise management company, who devote themselves to the service of product research and development, construction and maintenance.



Our company has a long history. We own the advanced equipment, a young, energetic, proficient and experienced team of professionals which with leading technology strength, excellent operational management and high-quality services what made us be recognized by customers of the chemical, petroleum, electric power, metallurgy, building material, aerospace, machinery and other industries.





Why choose Xingtailong?

High puriy material make sure high max working temperature,

Tight tolerance make sure the right installation.

Large quantity in stock ensured fast delivery.

Large capacity reduce materical prices.

Our service from Xingtailong:

Inquiry response: Your inquiries will be replied in 24 hours.

Sample support: Two free samples are available in 3~5days.

Delivery time: Your shipment will be loaded in 15~25days.depends on quantity.

Payment term: T/T, L/C, D/P, D/A, Western Union (Sample only) We can supply the products according to customer's drawings, samples and performance requirement.



Please follow the using specifications to expand the working lifetime and better

the heat conductivity of ceramic insulator.

A piece of instruction paper will be found in ceramic insulator,If manual book is

required, please notice in advance.

If any questions please feel free to let us know anytime.
