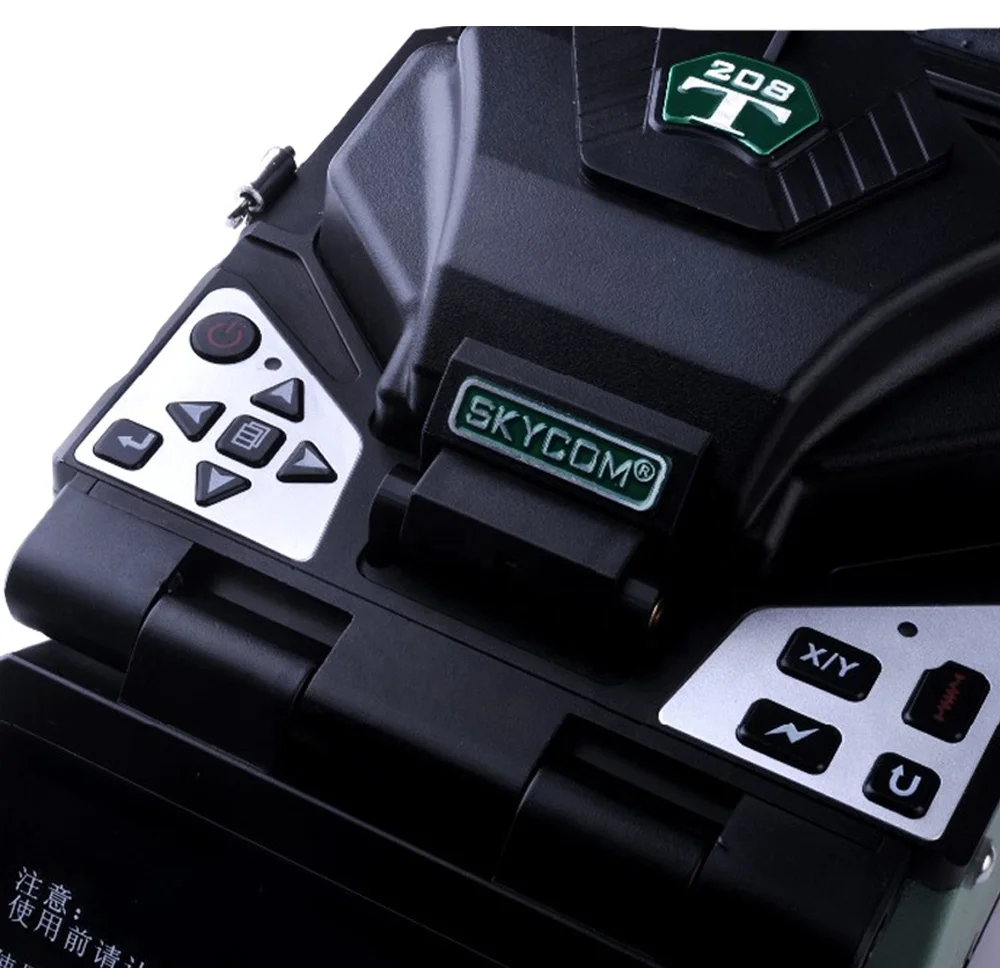

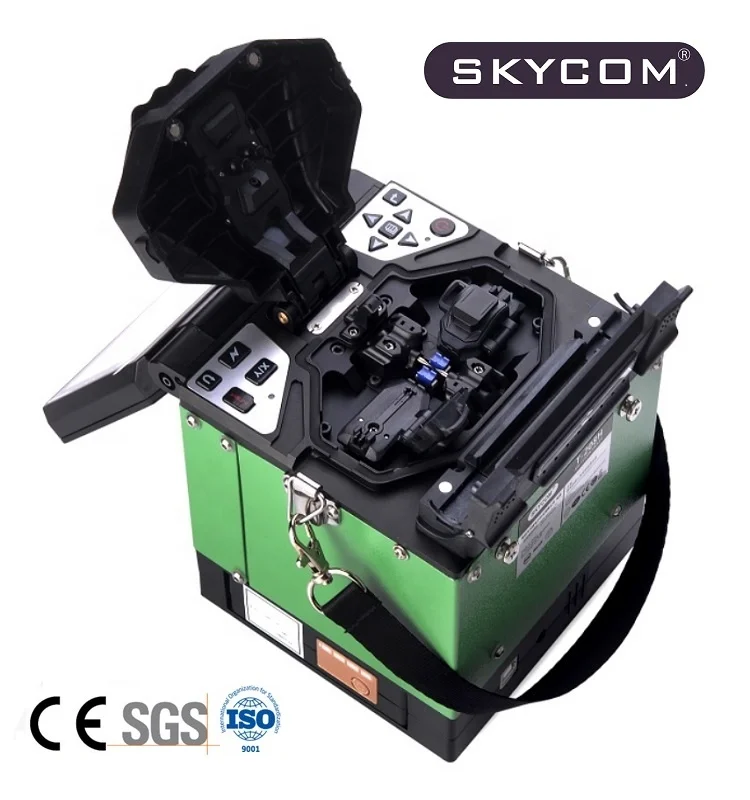

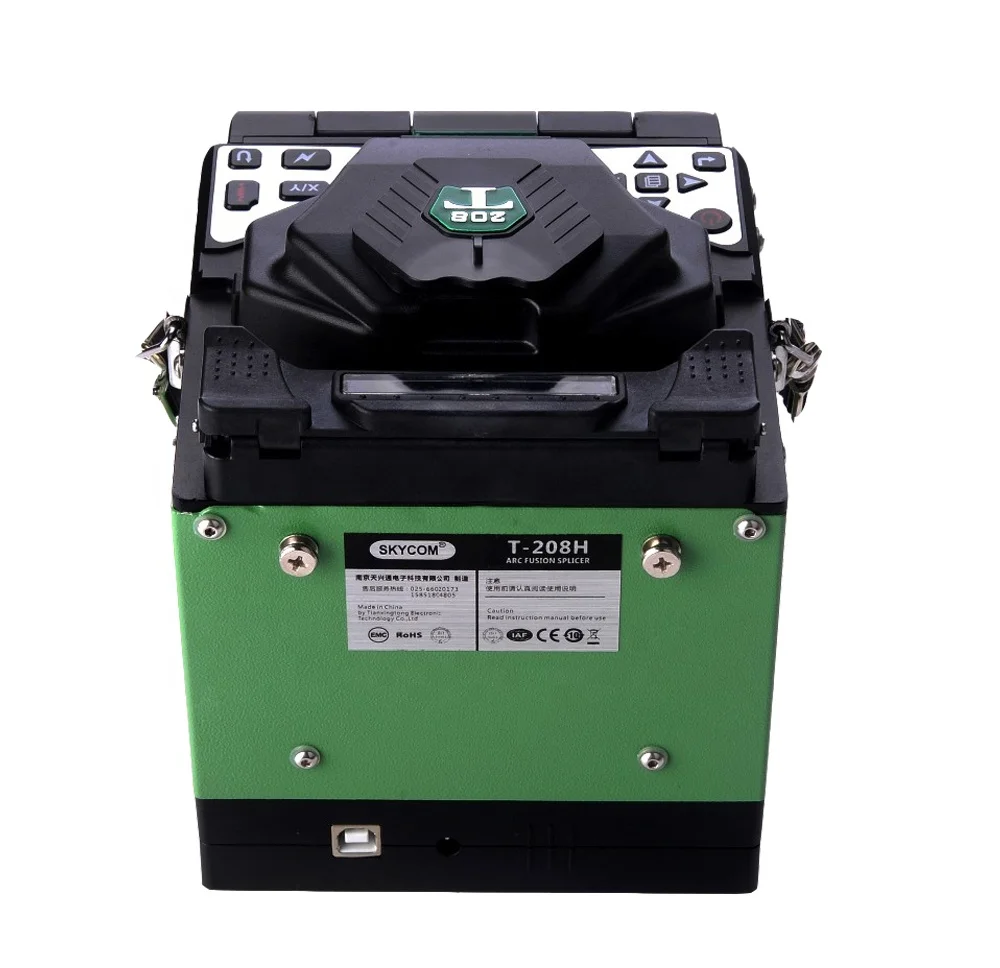

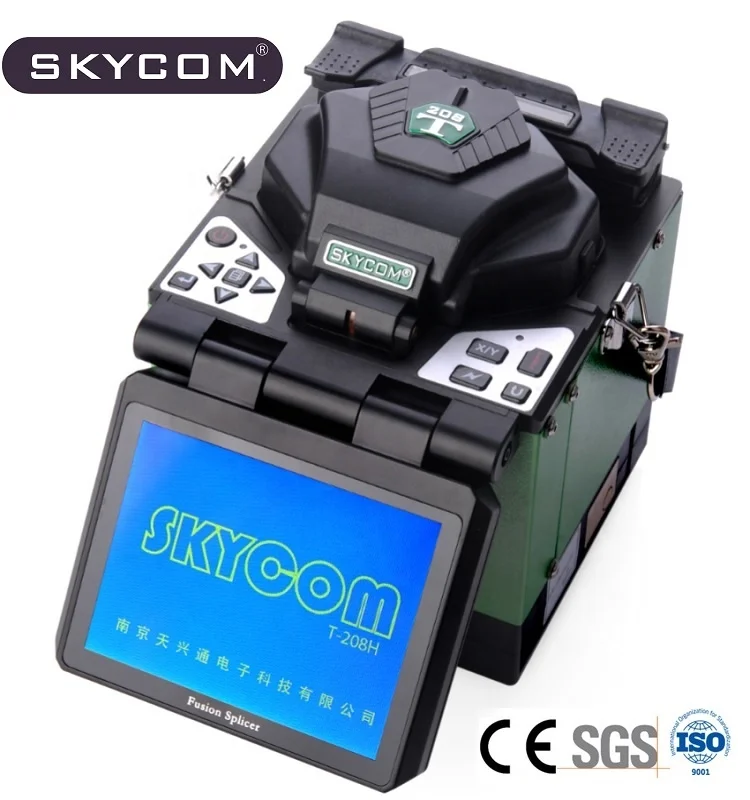

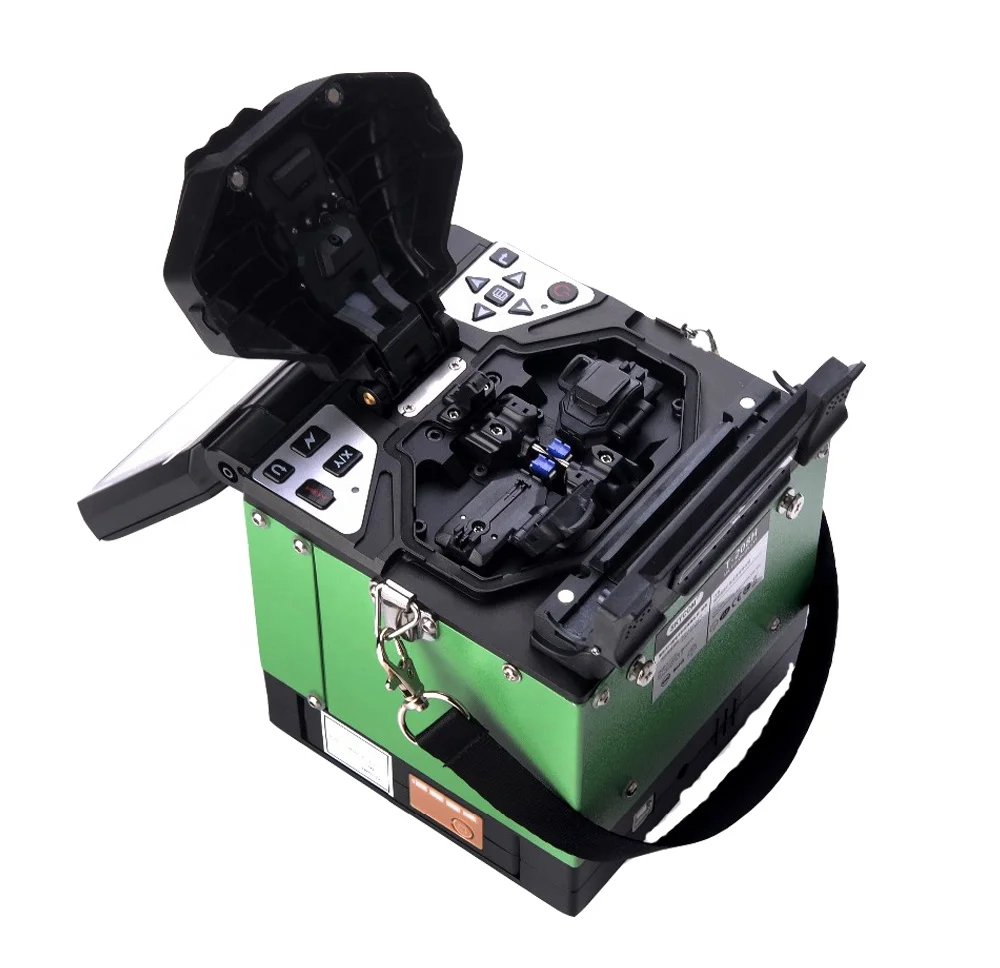

SKYCOM T 208 Core Alignment fusion splicer kit
- Category: >>>
- Supplier: Nanjing Tianxingtong Electronic Technology Co. Ltd.
Share on (544412395):
Product Overview
Description
Main Features:
l 5 inches high Resolution colorful LCD display
l Average splice time: 10 second
l Average tube-heat time: 40 second
l Lithium battery: up to 180 times of continuous splice and heat
l Simultaneous X and Y views with 180 times magnification
l New developed technology providing wind and dust resistance
l Splicing mode: Auto & Manual
l USB Port
l Storing 6,000 groups of splice results.
Specifications:
Applicable Fibers | SM, MM, NZ-DS, EDF |
Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
Return Loss | ≥60dB |
Tension Test | 2.0N(200gf)(Standard) |
Splicing Program | 50 groups |
Protection Sleeve Length | 20mm, 40mm, 60mm |
Language | Chinese, English |
Environmental Conditions | -10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
Power Supply | AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) DC adaptor: 12V voltage 8AH |
Dimensions | 155(W)*165(D)*150(H) |
Weight | 2.5kg |
SKYCOM T-108 Core Alignment fusion splicer kit
Standard Package
No. | Item | Quantity |
1 | Machine (T-108) | 1 |
2 | Fiber Cleaver(OPT-201) | 1 |
3 | Fiber Stripper | 1 |
4 | AC Adaptor(602-120500D) | 1 |
5 | Battery(603-1072) | 1 |
6 | Charger(602-126250W) | 1 |
7 | Spare Electrodes | 1 |
8 | Cooling Tray | 1 |
9 | Instruction CD | 1 |
10 | USB Line | 1 |
11 | Quick Reference Guide | 1 |
12 | Transit Case with Carrying Strap | 1 |
Thanks for your attention on our SKYCOM T-108 Fusion Splicer, Hope that it will be helpful to you!
Our company is one of the professional manufacturers of Fusion Splicer and OTDR. It has a production line for Fusion Splicer. The products exported to UK, USA, France, Australia, India and Africa, etc, More than 20 countries and district, we also supply OEM for domestic and foreign manufacturers.. Our products have won good praises of customers at home and abroad.
The following is the detailed specification of the Fusion Splicer, Should you are interested in them, feel free to contact me , I am confident that I can quote you a competitive price. Thanks in advance.
