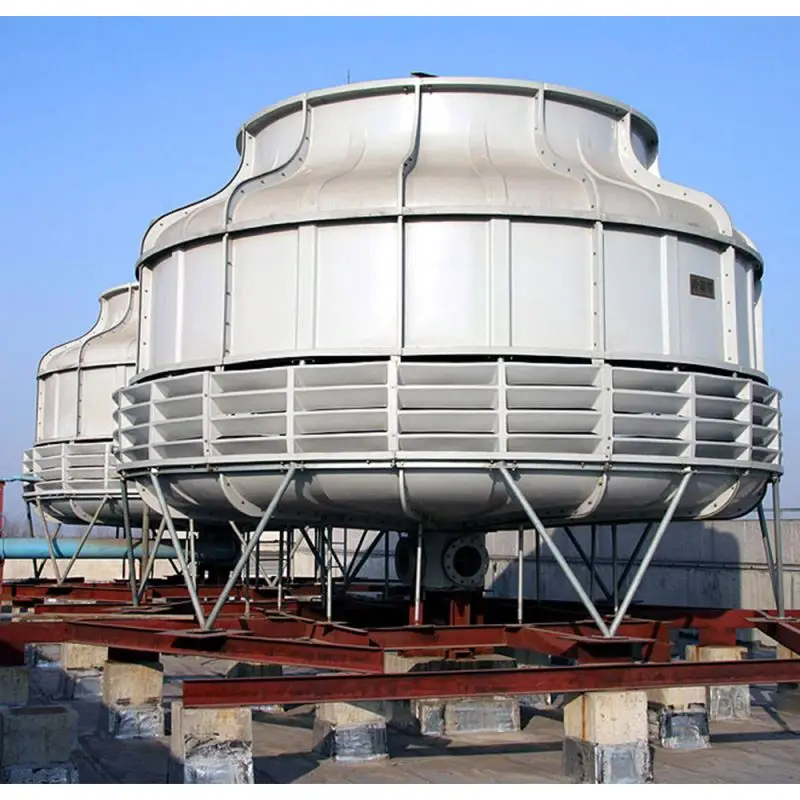

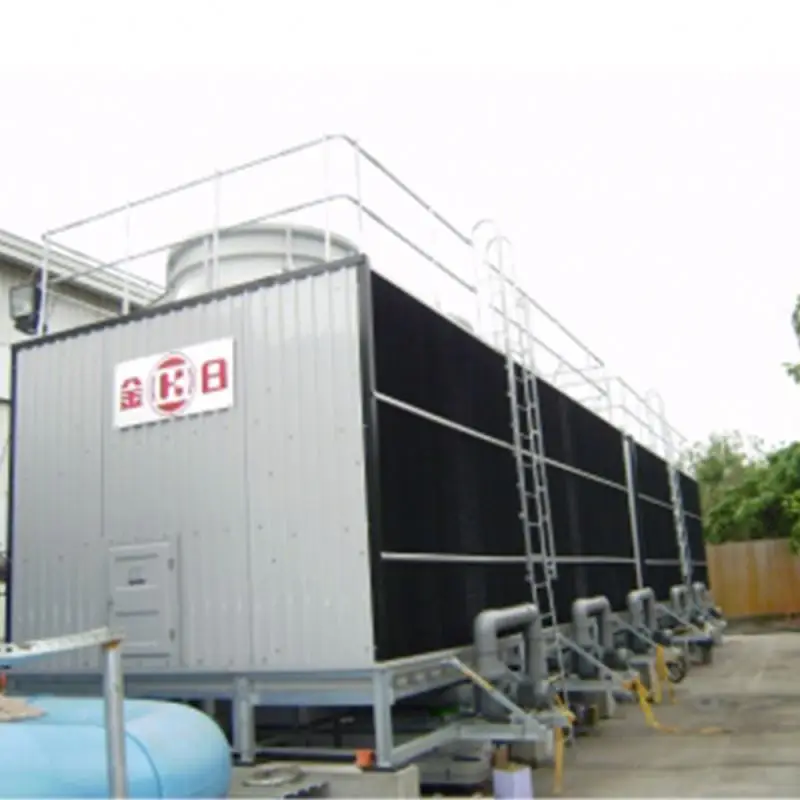

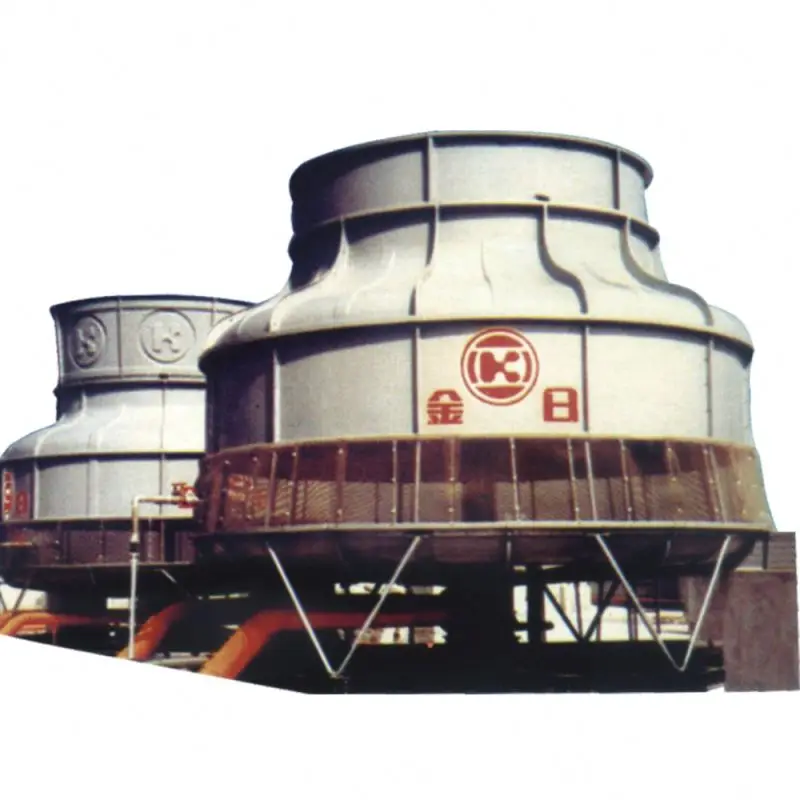

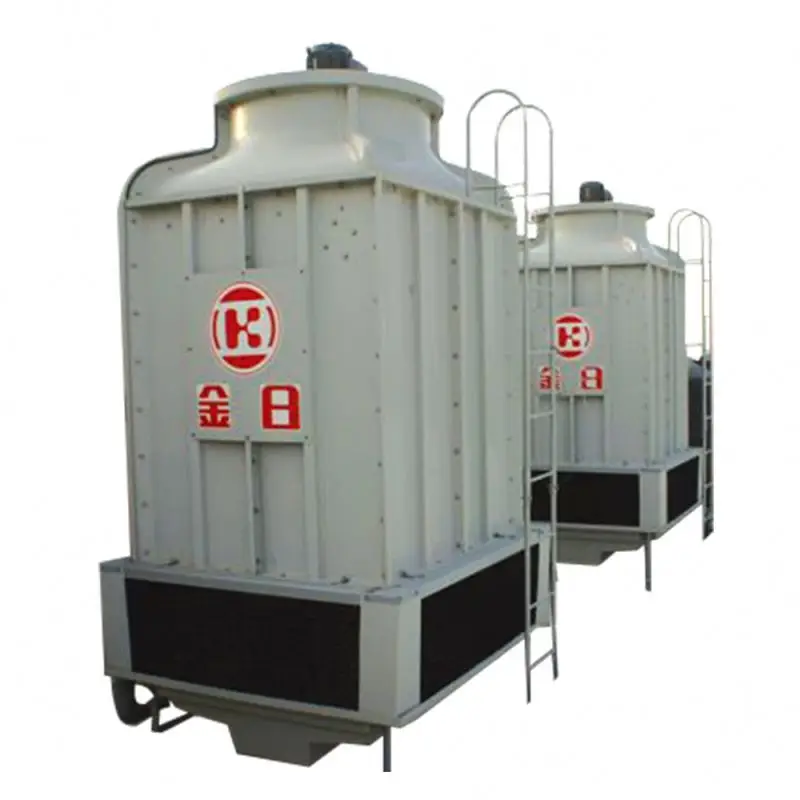

low noise cooling tower/coolling column

Product Overview

Description

Product Description

1)famous and high quality cooling tower

2) From 3RT to 1500RT, complete models are suitable for all different requirements.

3) Having F.R.P and heating zincification iron as mayor structure materials, they are characterized by lightness,

    stability and  anticorrosion.

4) Min. Noise: The lowest noise blower and unique noise elimination technology is adopted to reduce the noise to a

    minimum level

5) With reliable operation: All steel structure brackets are galvanized and corrosion resistant. The usage life is twice

    longer compared with similar products

6) It is easy to install and suitable for all spots.

7) Round-shape design and air resistance to keep out strong wind, which is most suitable for frequent typhoon areas.



specification

Model	Fan Motor	Fan Dia	Air Volume	Pump Head	Weight Kg
KST KST-M KST-HC	HP (Kw)	Dφ mm	m3/min	M	Dry	Operating
3	1/6(0.12)	500	45	0.9	28	60
5	1/6(0.12)	500	55	1.2	32	78
8	1/6(0.12)	500	70	1.3	43	78
10	1/4(0.18)	500	100	1.3	79	150
15	1/4(0.18)	600	140	1.5	109	285
20	1/2(0.37)	600	150	1.7	129	318
25	1(0.75)	600	180	1.9	137	334
30	1(0.75)	700	195	1.9	144	522
40	1(0.75)	700	210	2	185	577
50	2(1.5)	900	280	2.1	228	632
60	2(1.5)	900	370	2.1	277	719
70	2(1.5)	1200	390	2.3	337	798
80	2(1.5)	1200	450	2.5	352	982
100	3(2.2)	1500	500	2.8	474	1205
125	3(2.2)	1500	700	3	524	1336
150	5(3.7)	1800	840	3.2	702	1583
175	5(3.7)	1800	1100	3.2	855	3415
200	5(3.7)	1800	1100	3.3	937	3570
225	7 1/2(5.5)	2400	1300	3.4	1022	3661
250	7 1/2(5.5)	2400	1580	3.6	1172	3885
300	10(7.5)	2400	1820	3.8	1331	4125
350	10(7.5)	2400	2120	4	1560	5690
400	15(11)	3000	2260	4.2	1902	6145
450	15(11)	3000	2860	4.35	2100	6285
500	15(11)	3000	3250	4.5	2165	6537
600	20(15)	3400	3500	4.5	2909	8052
650	20(15)	3400	3750	4.65	2985	8370
700	20(15)	3400	4250	5	3411	11734
750	20(15)	3400	4385	5.15	3520	12180
800	30(22)	3400	4500	5.5	3963	12690
900	30(22)	3600	4880	5.8	4403	13102
1000	30(22)	3600	4830	5.8	4512	13465
1250	40(30)	4200	6700	6.3	4650	14500
1500	50(37.5)	4200	7900	7	5500	21500
